3A, 50V - 1000V Surface Mount Rectifier
S3MV6G
S3MV6G.pdf
S3MV6G.pdf
No.10600
FEATURES
? Glass passivated chip junction
? Ideal for automated placement
? Low forward voltage drop
? High current capability
? High surge current capability
? Halogen-free according to IEC 61249-2-21
DESCRIPTION
? 3A, 50V - 1000V Surface Mount Rectifier

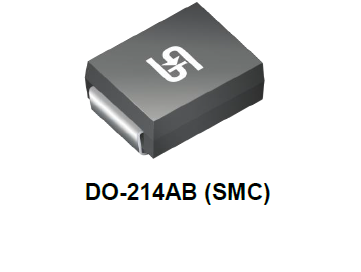

? Case: DO-214AB (SMC)
APPLICATION CIRCUIT

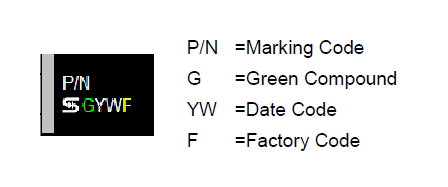

PIN CONFIGUTION
