? Protects one power or I/O line

? Max. peak pulse power : Ppp = 350W at tp = 8/20 us.

? Ultra Low Capacitance : 1.6pF Typical

? Low clamping voltage

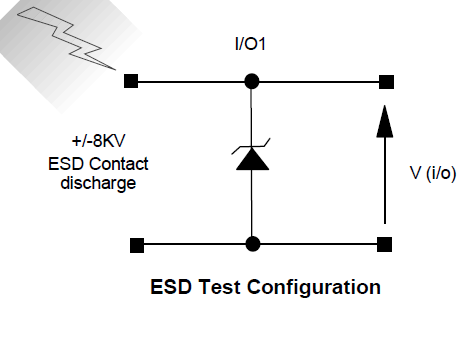

? IEC 61000-4-2, level 4 ( ESD ), > ±15KV ( air ) ;

  > ±8KV ( contact )

Ultra low capacitance bidirectional ElectroStatic Discharge (ESD) protection diodes in small Surface-Mounted Device (SMD) plastic packages designed to protect one data line from the damage caused by ESD.
