45V, 15A low VF Trench MEGA Schottky barrier rectifier, TSUP15M45SH Replace PMEG045T150EPD.
TSUP15M45SH
TSUP15M45SH.pdf
TSUP15M45SH.pdfFEATURES
? AEC-Q101 qualified
? Patented Trench Schottky technology
? Low power loss, high efficiency
? Ideal for automated placement
? Wettable flank
? Moisture sensitivity level: level 1, per J-STD-020
? RoHS Compliant
? Halogen-free according to IEC 61249-2-21

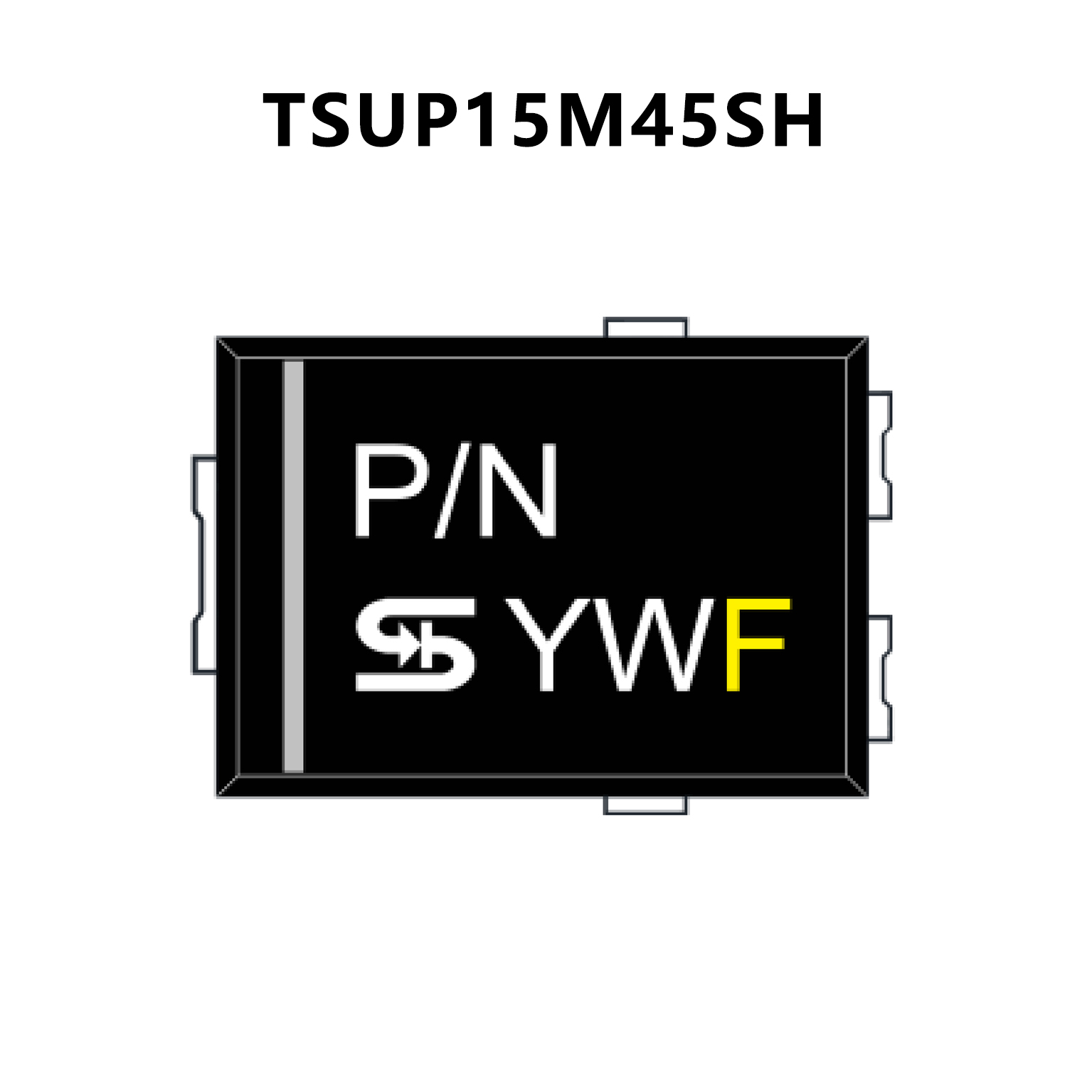

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Average forward current: IF(AV) ≤ 15 A
? Reverse voltage: VR ≤ 45 V
? Low forward voltage
? Low leakage current due to Trench MEGA Schottky
technology
? High power capability due to clip-bonding technology
and heat sink
? Small and thin SMD power plastic package, typical
height 0.78 mm
? AEC-Q101 qualified

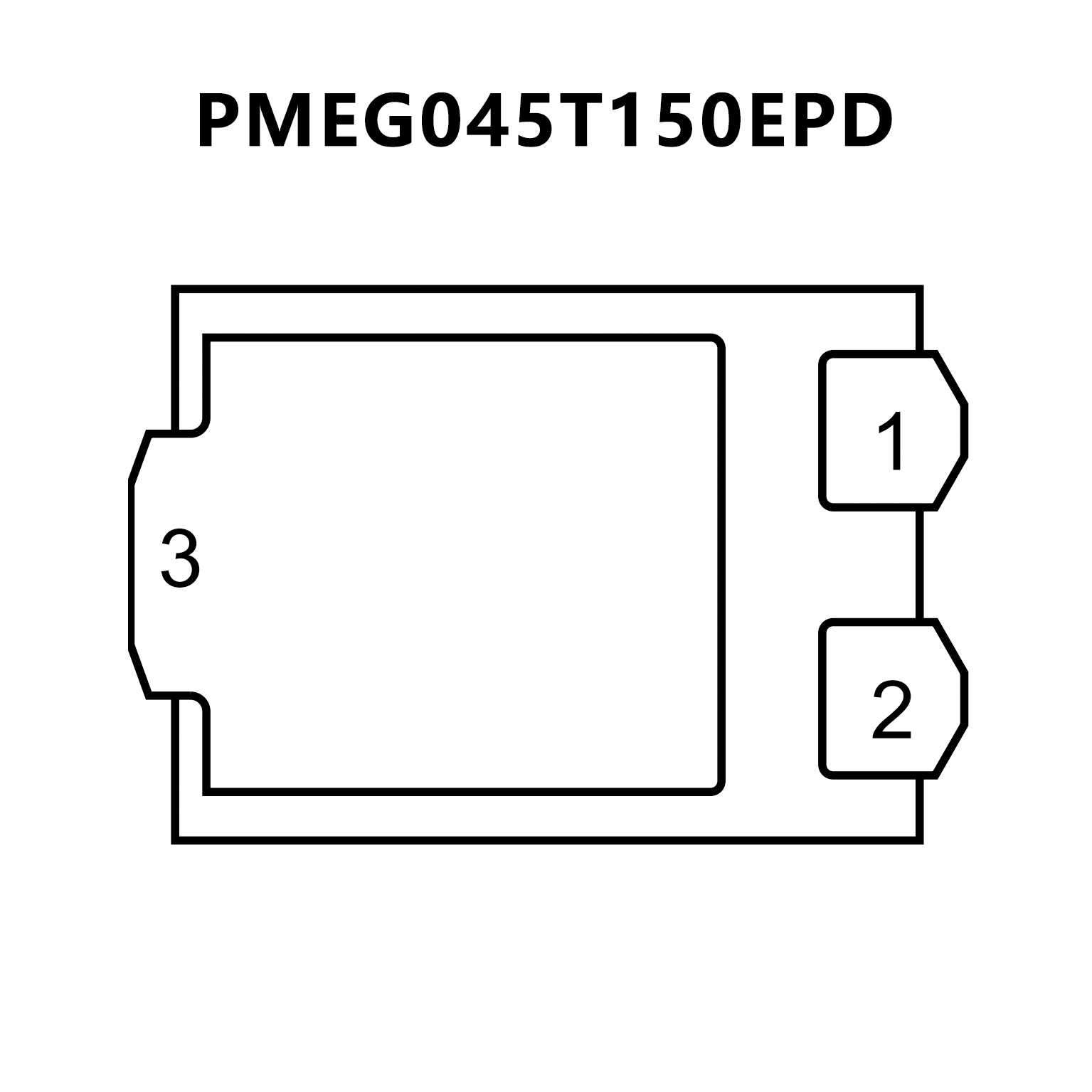

PIN CONFIGUTION
