Precision Adjustable Power Distribution Switch, TMI6260C P2P TPS2551DBV.
TMI6260C
TMI6260C.pdf
TMI6260C.pdfFEATURES
? Integrated 60mΩ Power MOSFET
? Adjustable Current Limit 0.3A to 2.5A (typ.)
? Low Supply Current
? 30μA Typical at Switch On State
? 1μA Typical at Switch Off State
? Wide Input Voltage Range: 2.5V to 5.5V
? Fast Transient Response: 8μs
? 0.1ms Typical Rise Time
? Reverse Current Flow Blocking
? Deglitched Open-Drain Over-Current Flag
Output (TMI6260C and TMI6260D)
? Thermal Shutdown Protection
? Hot Plug-In Application (Soft-Start)
? UL 2367 Certification - E528420
? SOT-23-5/SOT-23-6/DFN2x2-6L Package

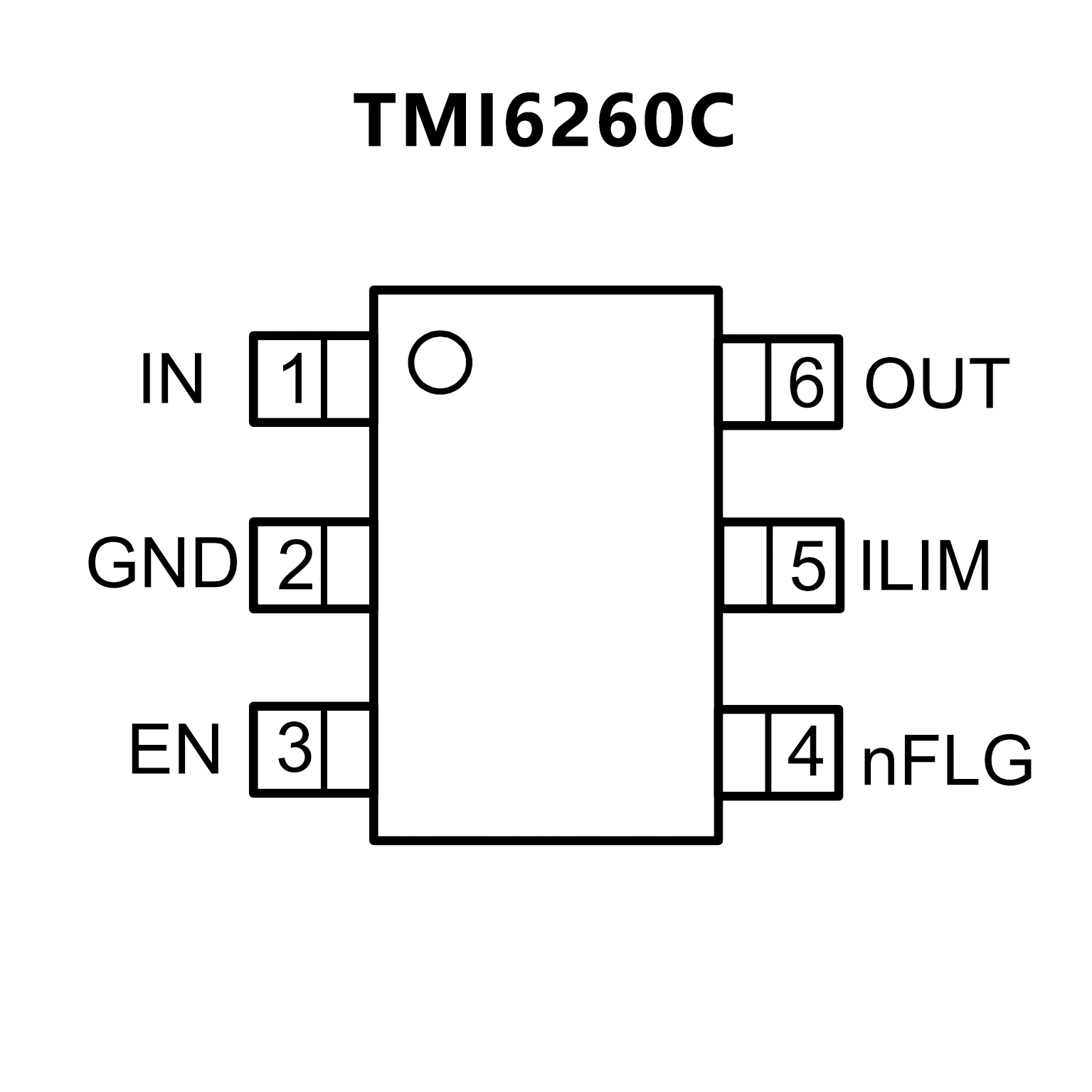

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Adjustable Current-Limit, 100 mA–1100 mA
? Fast Overcurrent Response - 2 μS Typical
? 85-m? High-Side MOSFET (DBV Package)
? Reverse Input-Output Voltage Protection
? Operating Range: 2.5 V to 6.5 V
? Deglitched Fault Report
? 1-μA Maximum Standby Supply Current
? Junction Temperature Range: –40°C to 125°C
? Built-in Soft-Start
? 15 kV ESD Protection (with external
capacitance)
? UL Listed – File No. E169910
? Current-Limit Resistor Calculator – SLVC163

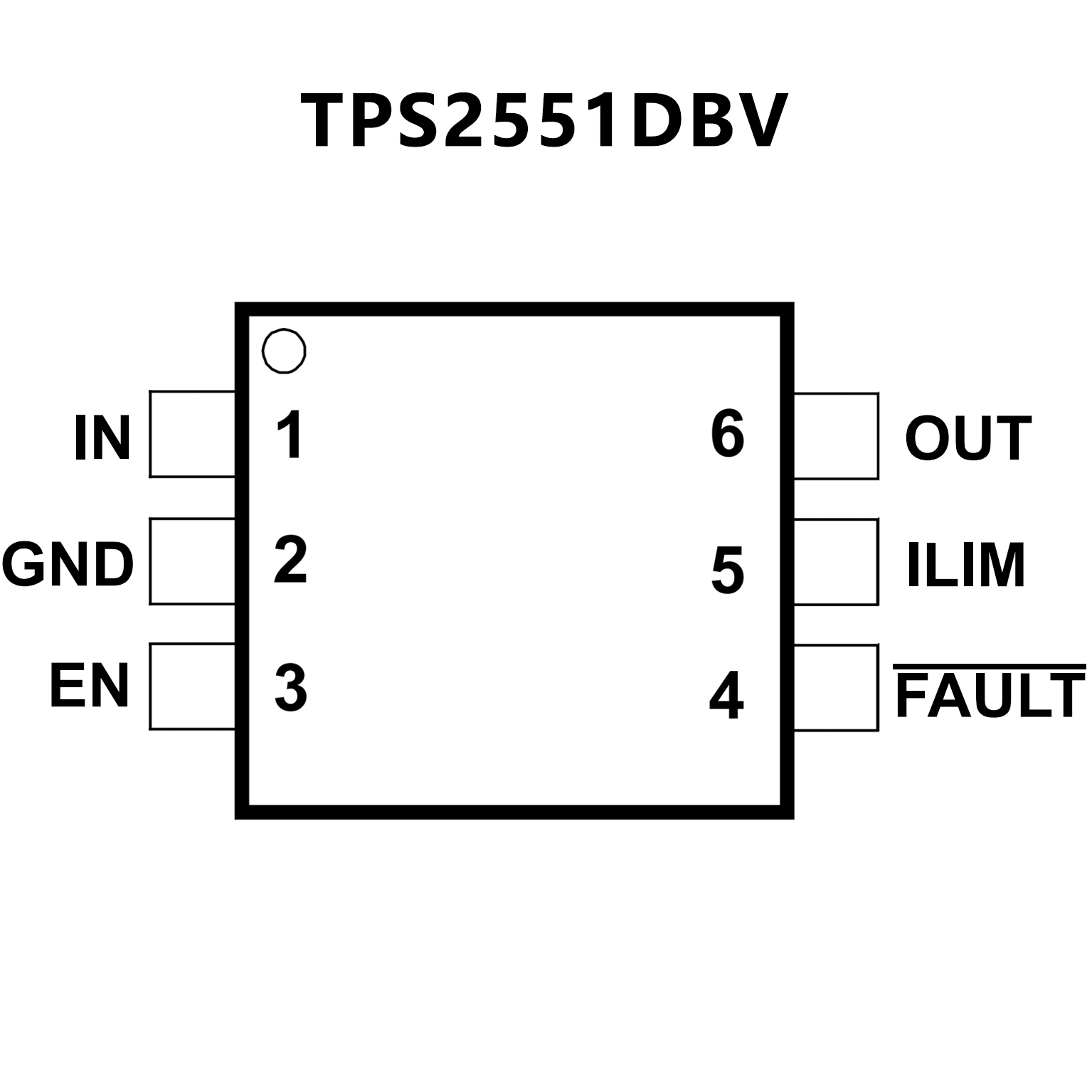

PIN CONFIGUTION
