ESD protection diode in SOD523 package, T3V3S5A-7 Replace PESD3V3S1UB.
T3V3S5A-7
T3V3S5A-7.pdf
T3V3S5A-7.pdfFEATURES
? Package: SOD523
? Package Material: Molded Plastic, "Green" Molding
Compound. UL Flammability Classification Rating 94V-0
? Moisture Sensitivity: Level 1 per J-STD-020
? Terminal Connections: Cathode Band
? Terminals: Finish – Matte Tin Annealed over Alloy 42
Leadframe. Solderable per MIL-STD-202, Method 208
? Weight: 0.001 grams (Approximate)

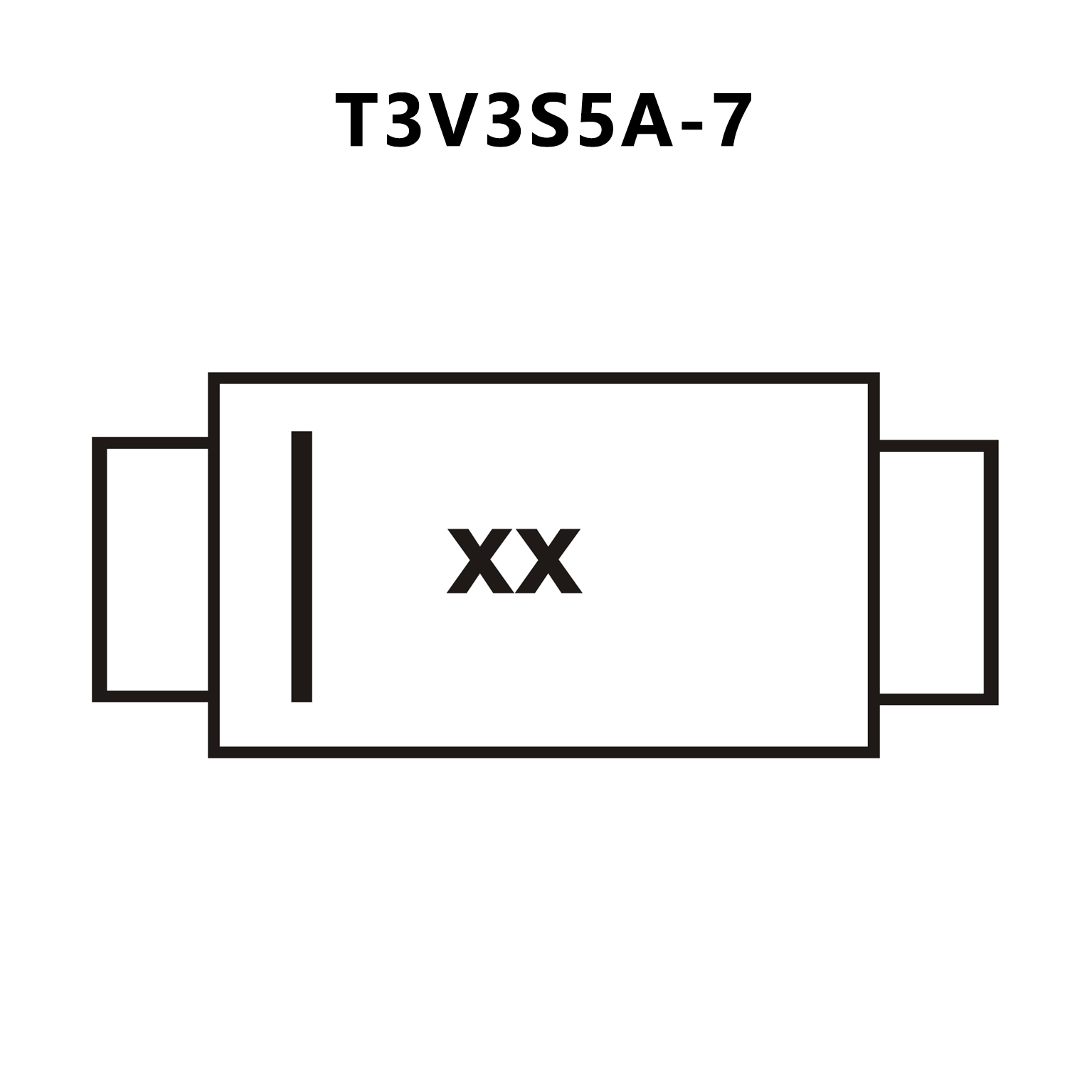

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Unidirectional ESD protection of one line
? Low clamping voltage: VCL = 20 V at IPPM = 18 A
? ESD protection up to 30 kV
? IEC 61000-4-5 (surge); IPPM = 18 A at tp = 8/20 μs

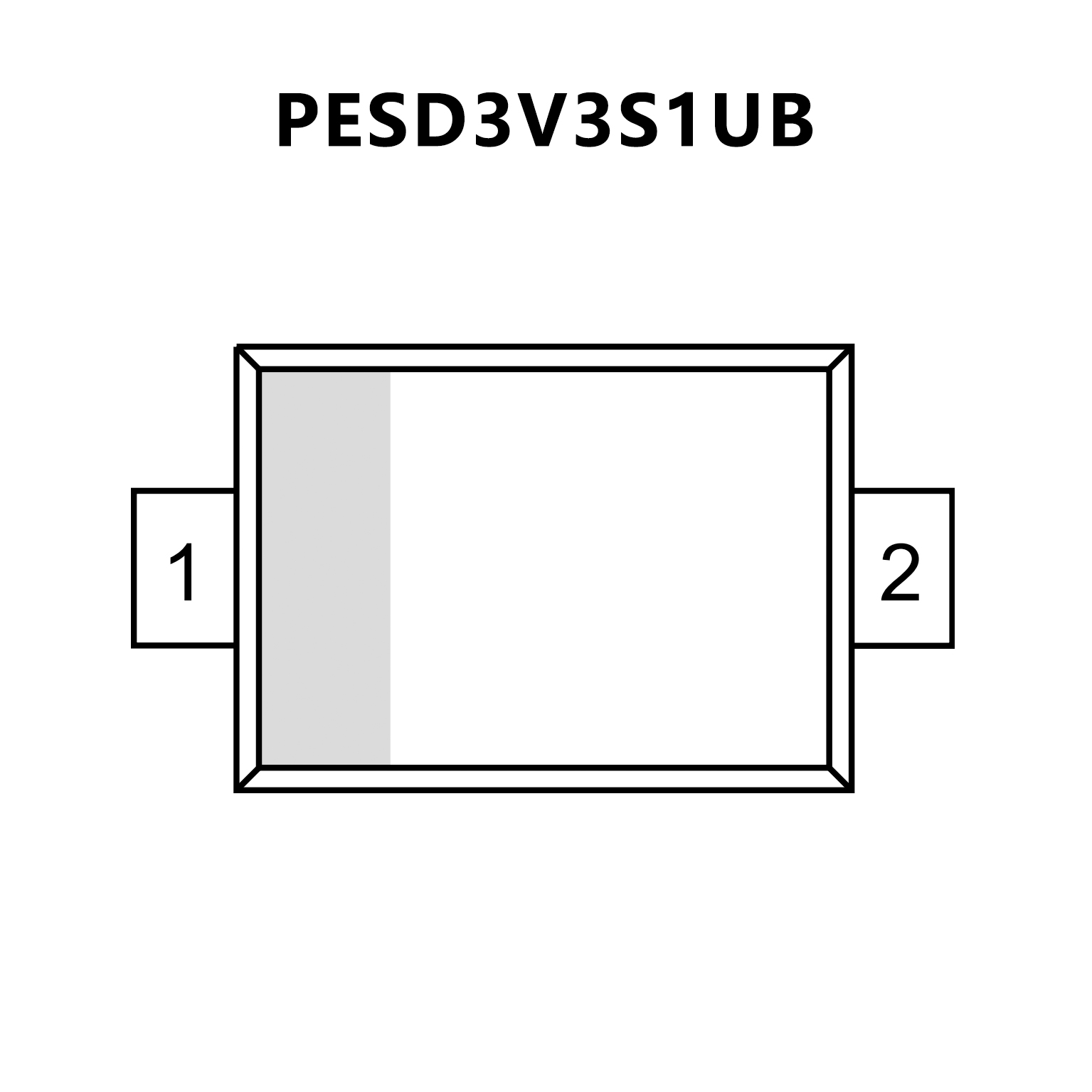

PIN CONFIGUTION
