1.6mA,10MHz,High Precision,Rail-to-Rail I/O,Low Noise,CMOS Operational Amplifiers,SGM8968-4 Replace OPA2364.
SGM8968-4
SGM8968-4.pdf
SGM8968-4.pdfFEATURES
? Rail-to-Rail Input and Output
? Input Offset Voltage: 240μV (MAX)
? High Gain-Bandwidth Product: 10MHz
? High Slew Rate: 20V/μs
? Settling Time to 0.1% with 2V Step: 280ns
? Overload Recovery Time: 100ns
? Low Noise: 8nV/Hz at 10kHz
? Supply Voltage Range: 1.8V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Power:
Supply Current: 1.6mA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8968-1 Available in Green
SOT-23-5 andSOIC-8 Packages
SGM8968-2 Available in Green
SOIC-8 andMSOP-8 Packages
SGM8968-4 Available in Green
SOIC-14 andTSSOP-14 Packages

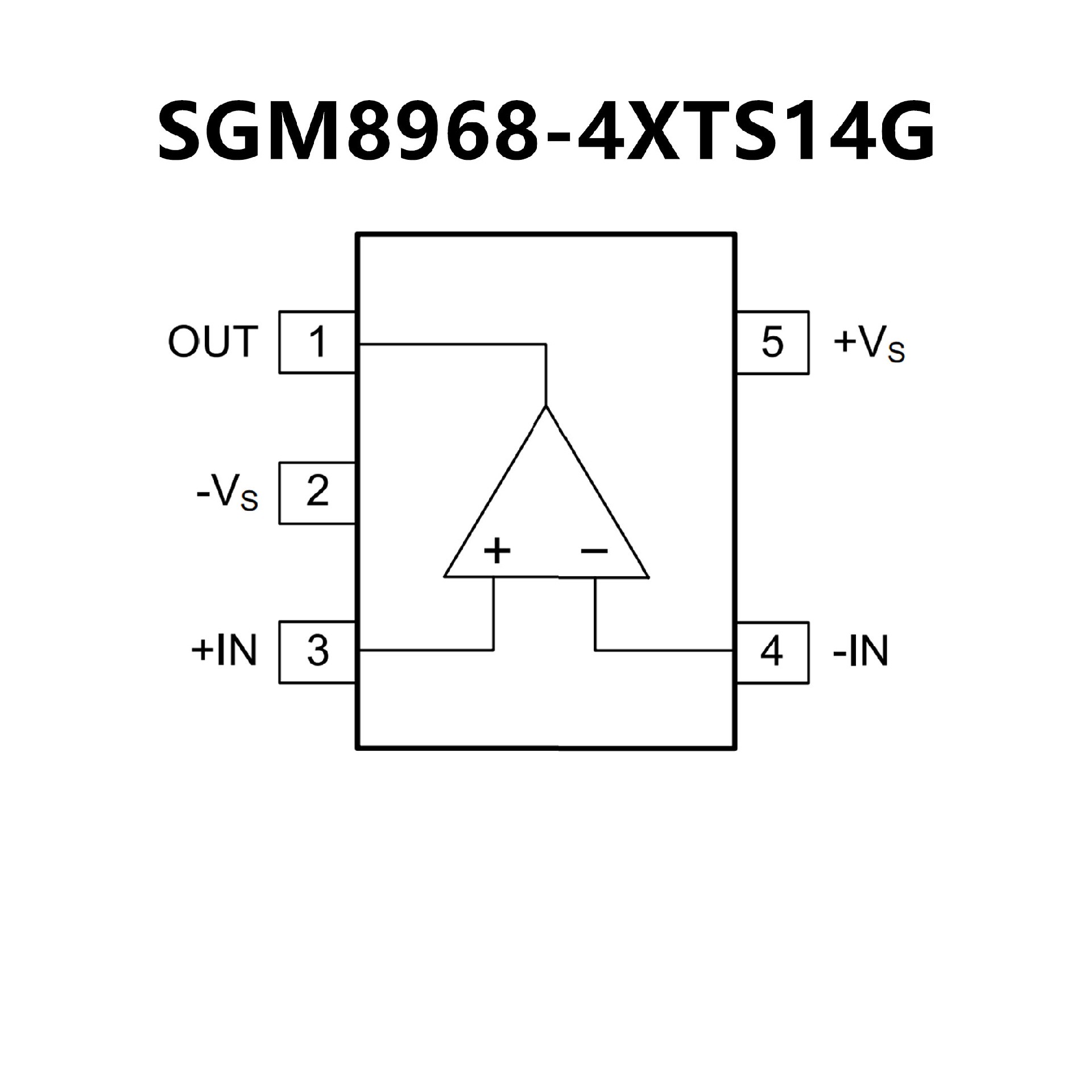

PIN CONFIGUTION
優勢替代
FEATURES
? 1.8V 運行電壓
? 微型封裝
? 帶寬： 7MHz
? CMRR：90dB（典型）
? 壓擺率：5V/μs
? 低失調電壓：500μV（最大值）
? 靜態電流：每個通道750μA（最大值）
? 關斷模式：每個通道小于1μA

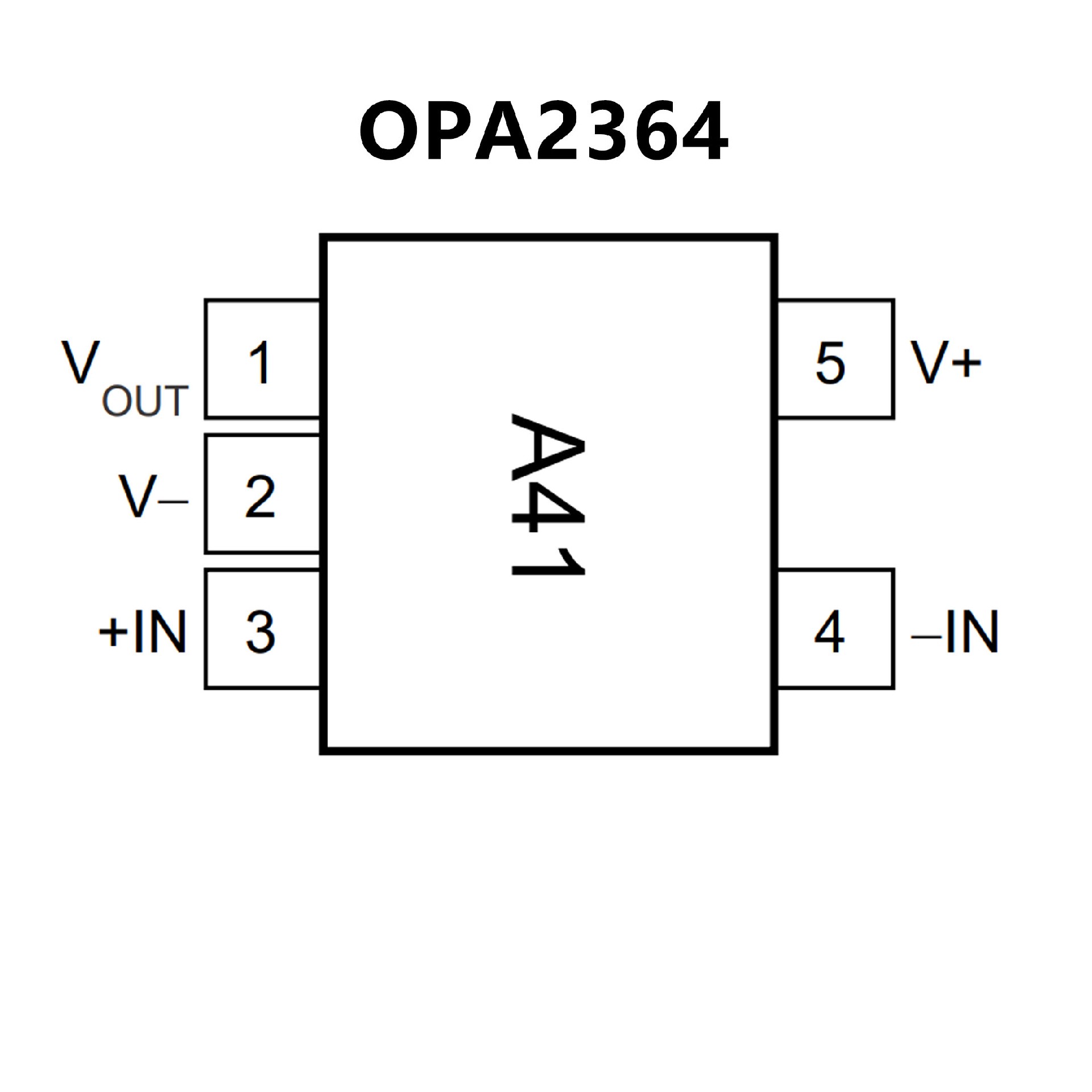

PIN CONFIGUTION
