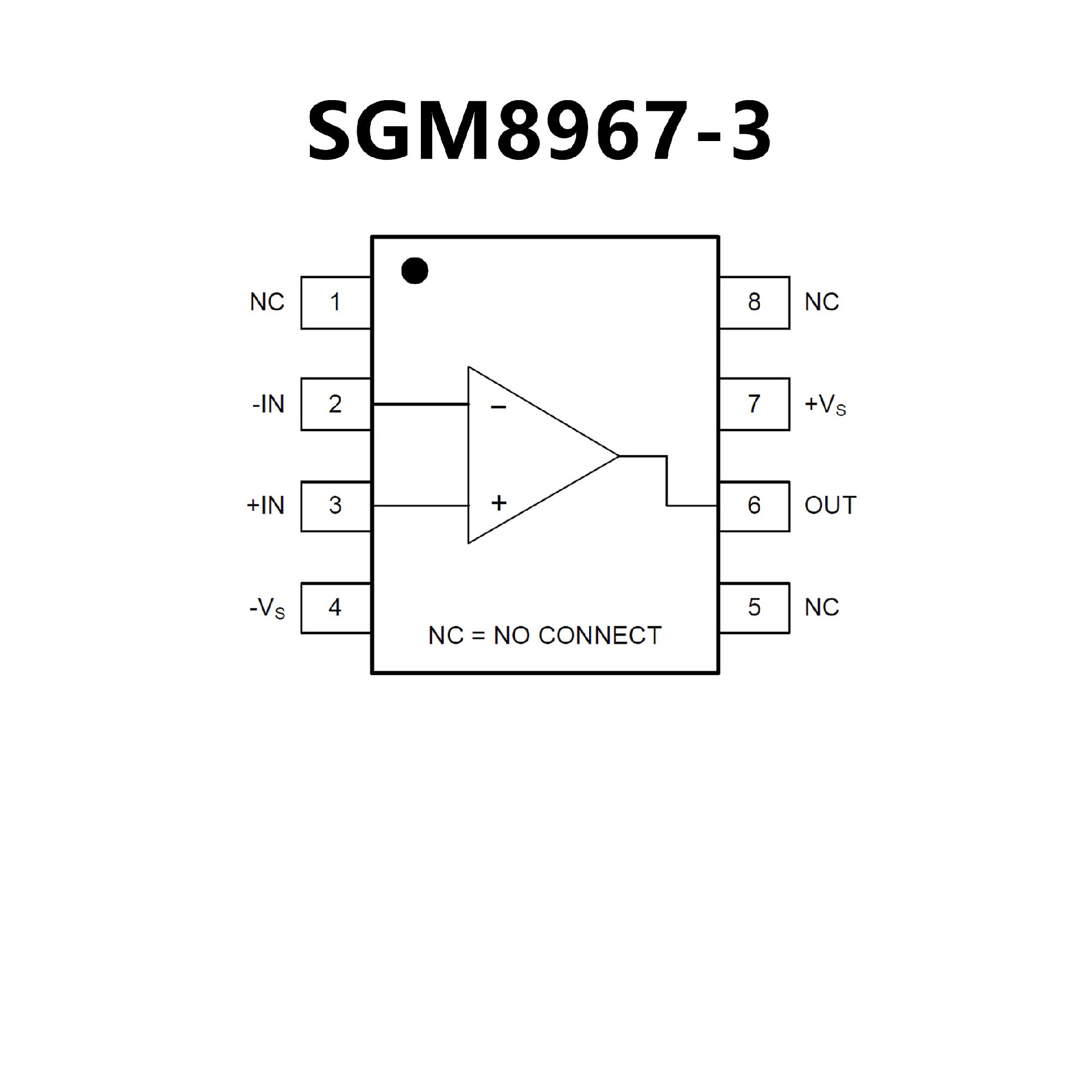

SGM8967-3XN6G.pdf? Rail-to-Rail Input and Output
? High Gain-Bandwidth Product: 27MHz
? High Slew Rate: 30V/μs
? Settling Time to 0.1% with 2V Step: 120ns
? Overload Recovery Time: 60ns
? Low Noise: 8nV/Hz at 10kHz
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Power:
Supply Current: 2.7mA/Amplifier (TYP)
SGM8967-3 Supply Current when Disabled: 0.1μA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8967-1 Available in Green SOT-23-5 and
SOIC-8 Packages
SGM8967-2 Available in Green MSOP-8 and
SOIC-8 Packages
SGM8967-3 Available in a Green SOT-23-6 Package
SGM8967-4 Available in Green SOIC-14 and
TSSOP-14 Packages

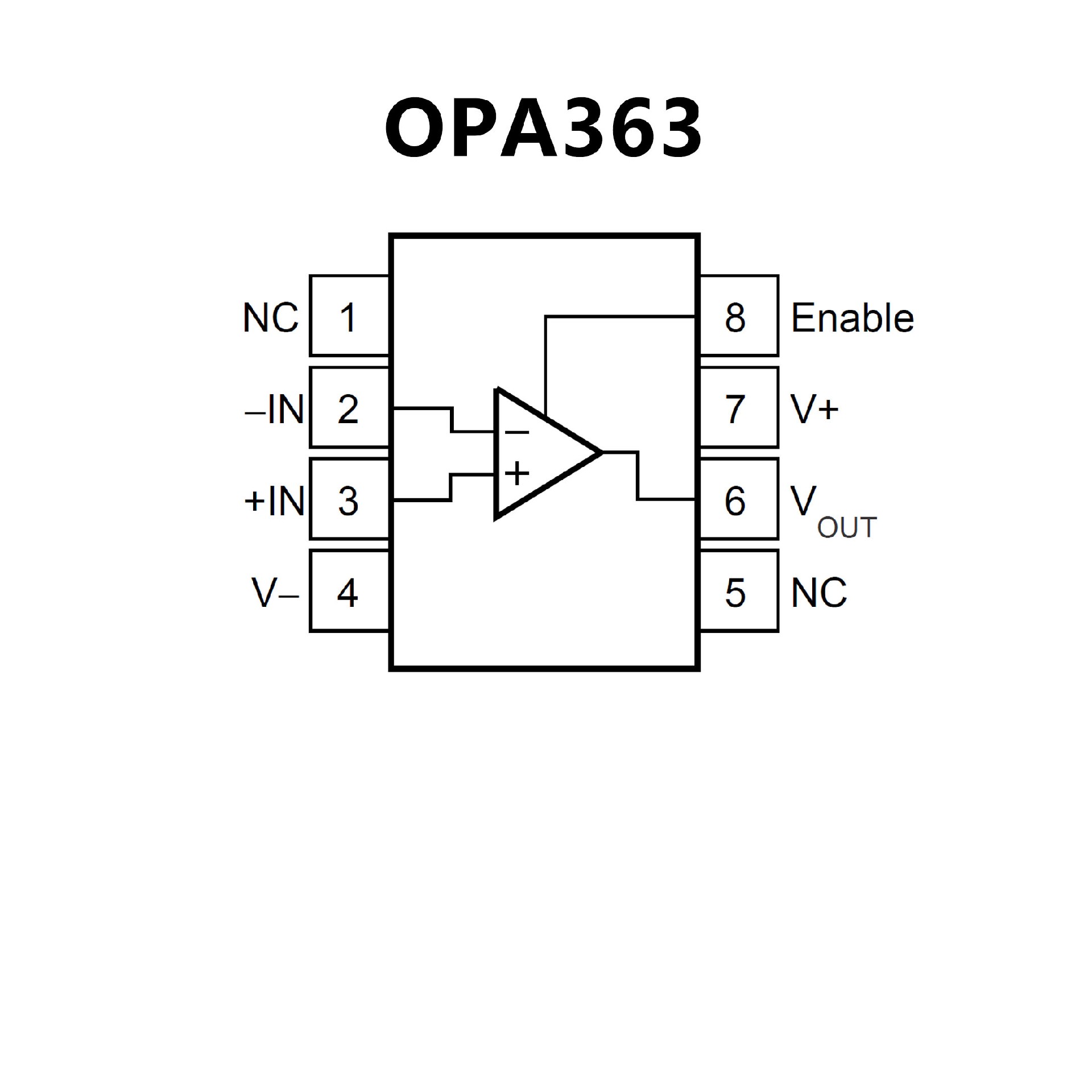

? 1.8V 運行電壓
? 微型封裝
? 帶寬： 7MHz
? CMRR：90dB（典型）
? 壓擺率：5V/μs
? 低失調電壓：500μV（最大值）
? 靜態(tài)電流：每個通道750μA（最大值）
? 關斷模式：每個通道小于1μA
