50MHz, Low Distortion,RRIO, Single-Supply Operational Amplifiers, SGM8965A-2XS8G/TR P2P OPA2322.
SGM8965A-2
SGM8965A-2.pdf
SGM8965A-2.pdfFEATURES
? Gain Bandwidth: 50MHz
? High CMRR: 94dB (TYP)
? Rail-to-Rail Input and Output
? Low Noise: 5.5nV/Hz at 100kHz
? Slew Rate: 30V/μs
? High Precision:
Low Offset: 50μV (TYP), 280μV (MAX)
Low Input Bias Current: 1pA (TYP)
? Unity-Gain Stable
? 2.2V to 5.5V Operation Voltage Range
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8965A-1 Available in Green SOT-23-5 and
SOIC-8 Packages
SGM8965A-2 Available in Green SOIC-8 and
MSOP-8 Packages

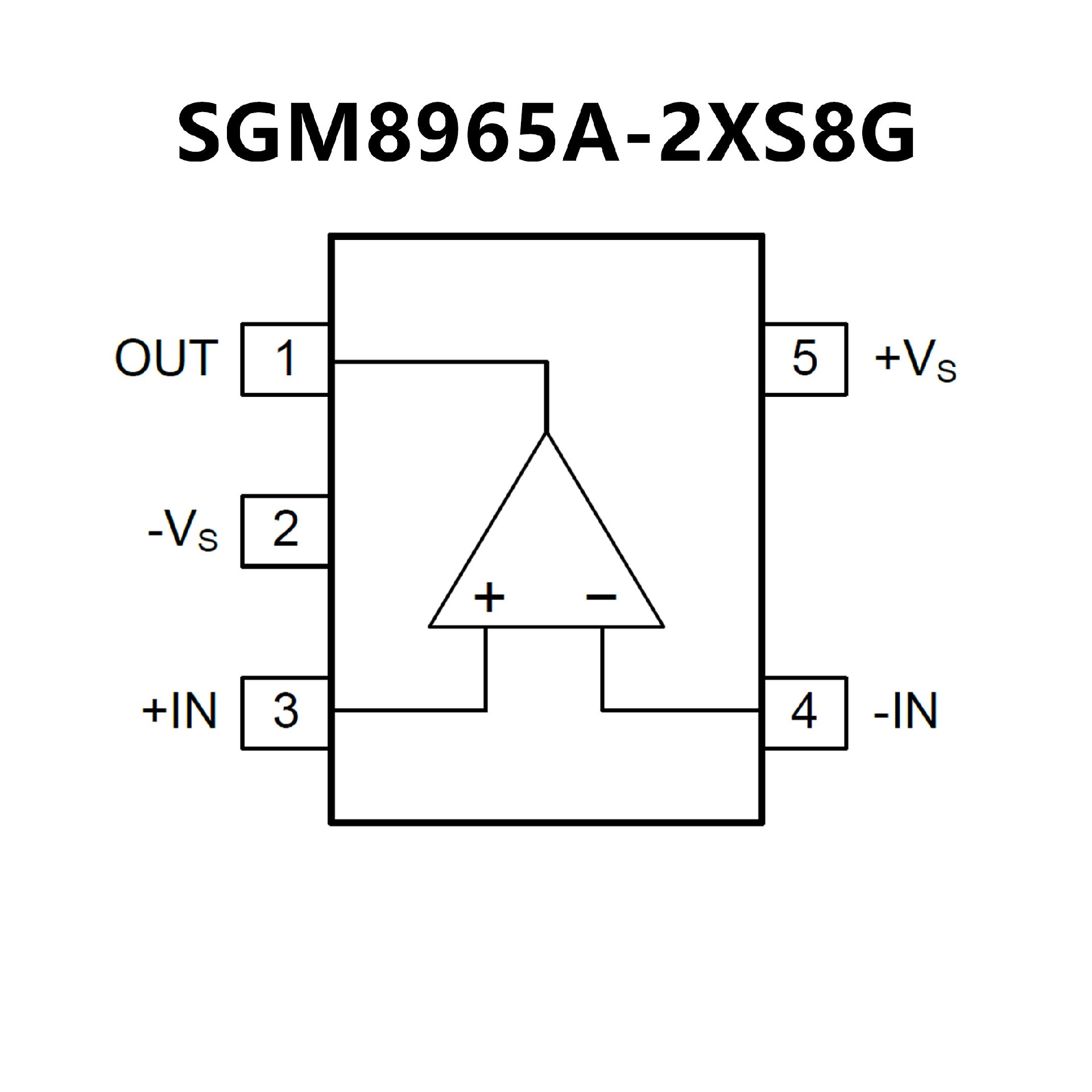

PIN CONFIGUTION
優勢替代
FEATURES
? 增益帶寬:20 MHz
? 低噪聲:8.5 nVIHz(在1kHz頻率條件下)
? 轉換速率:10 Vlus
? 低 THD +N: 0.0005%·軌至軌輸入輸出(IO)
? 失調電壓:2mV(最大值)
? 電源電壓:1.8V至5.5V
? 電源電流:每通道1.5 mA
-停機模式:每個通道的靜態電流為0.1 pA
· 具有穩定的單位增益
? 小外形封裝:
- SOT23, DFN, MSOP, TSSOP

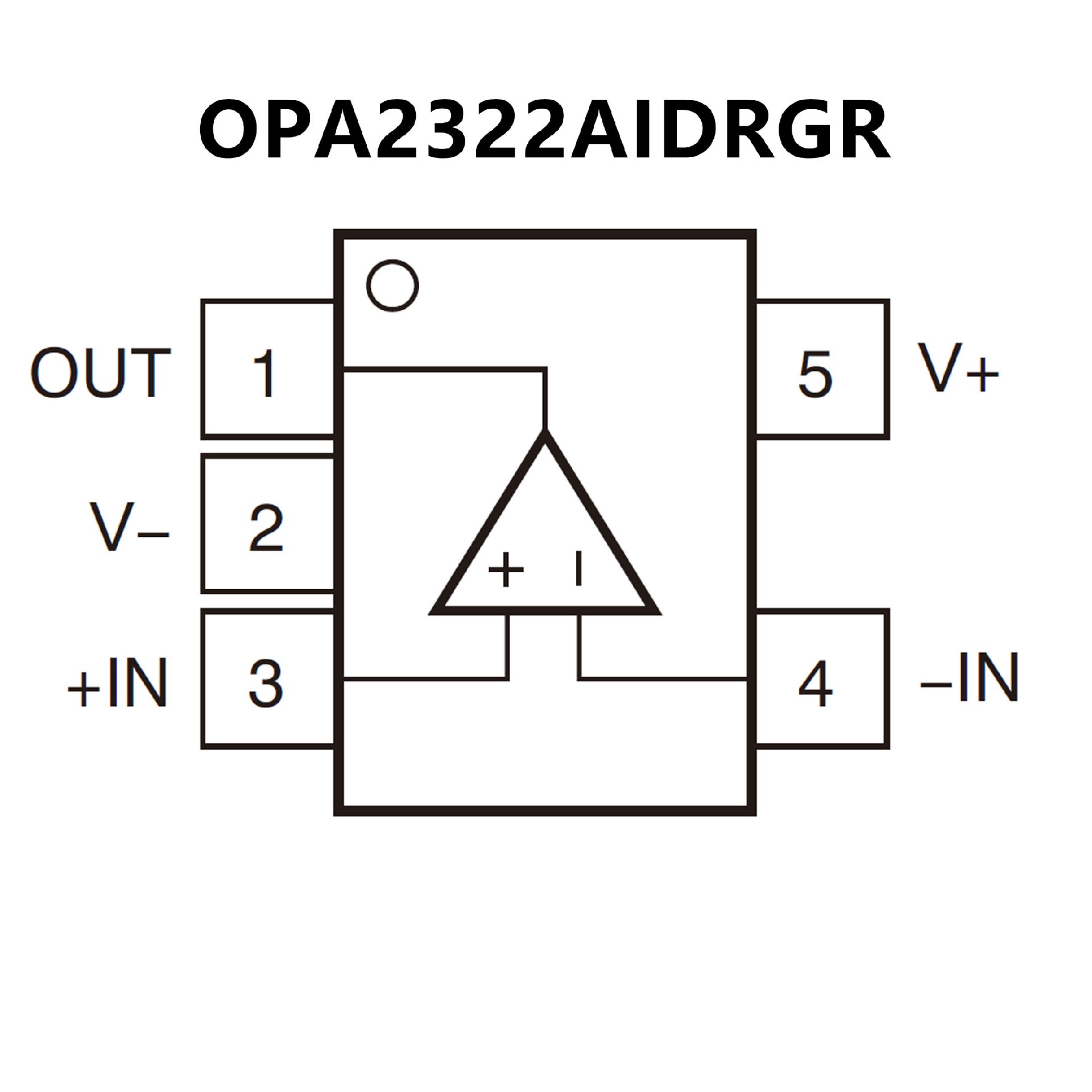

PIN CONFIGUTION
