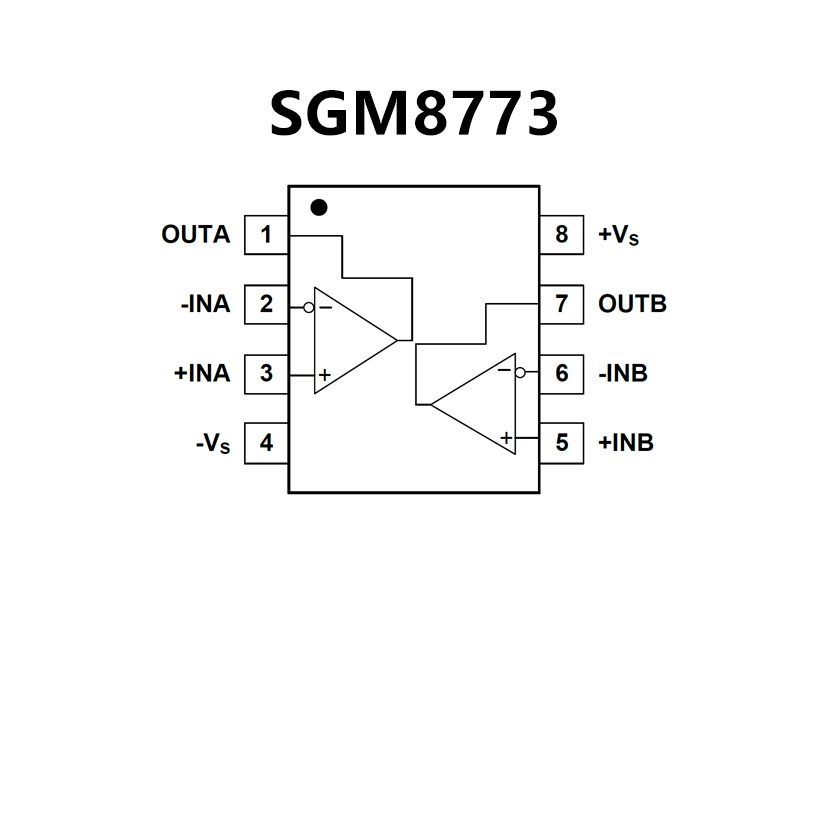

SGM8773XS8G.pdf? Single Supply or Dual Supplies
? Wide Supply Voltage Range: 2.8V to 36V
? Push-Pull Output
? Low Supply Current Independent of Supply Voltage:
330μA (TYP)
? Low Input Offset Voltage: 2.4mV (MAX)
? Low Input Bias Current: ±20pA (TYP)
? Input Common Mode Voltage Range Includes
Ground
? Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage: ±36V
? Low Output Saturation Voltage
? Output Compatible with TTL and CMOS
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and TDFN-3×3-8L
Packages
? Push-pull CMOS output (no external pull-up
resistor required)
? Extremely low supply current: 9μA typ /
comparator
? Wide single supply range: 2.7V to 16V or dual
supplies (±1.35V to ±8V)
? Extremely low input bias current: 1pA typ
? Extremely low input offset currents: 1pA typ
? Input common-mode voltage range includes
GND
? High input impedance: 1012Ω typ
? Fast response time: 2μs typ for 5mV overdrive
? Pin-to-pin and functionally compatible with
bipolar LM393
