SGM8770XS8G.pdf? Single Supply or Dual Supplies
? Wide Supply Voltage Range: 2.8V to 36V
? Open-Drain Output
? Low Supply Current Independent of Supply Voltage:
310μA (TYP)
? Low Input Offset Voltage: 2.4mV (MAX)
? Low Input Bias Current: ±20pA (TYP)
? Input Common Mode Voltage Range Includes
Ground
? Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage: ±36V
? Low Output Saturation Voltage
? Output Compatible with TTL and CMOS
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and TDFN-3×3-8L
Packages
? Low Supply Current: 470 nA Per Channel
? Input Common-Mode Range Exceeds the Rails:
0.1 V to VCC + 5 V
? Supply Voltage Range: 2.5 V to 16 V
? Reverse Battery Protection Up to 18 V
? Open-Drain CMOS Output Stage
? Specified Temperature Range:
Commercial Grade: 0°C to +70°C
Industrial Grade: –40°C to +125°C
? Ultra-Small Packaging:

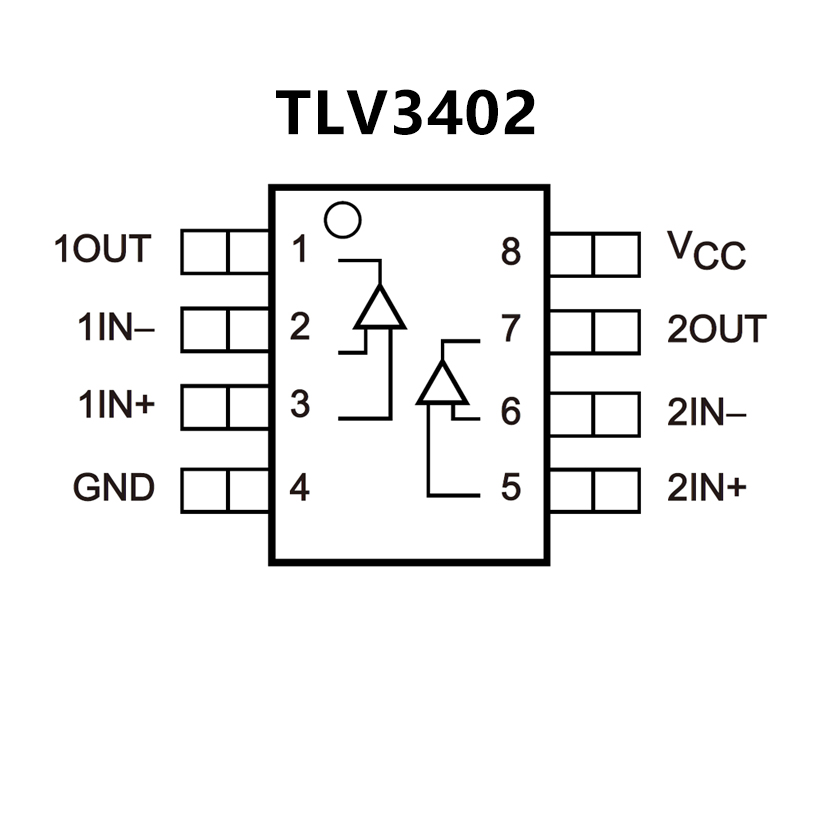

5-Pin SOT-23 (TLV3401)
8-Pin MSOP (TLV3402)
? Universal Op Amp EVM (See Universal
Operational Amplifier Evaluation Module Selection
Guide For More Information)
