High Precision Operational Amplifier, SGM8592 Replace LMV842.
SGM8592
SGM8592.pdf
SGM8592.pdfFEATURES
? Rail-to-Rail Input and Output Swing
? 2.5V to 5.5V Single Supply Operation
? Voltage Gain: 145dB (TYP) at +5V
? PSRR: 125dB (TYP)
? CMRR: 95dB (TYP)
? Ultra Low Input Bias Current: 15pA
? Low Supply Current: 430μA/Channel
? Overload Recovery Time: 70μs (at VS = +5V)
? No External Capacitors Required
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

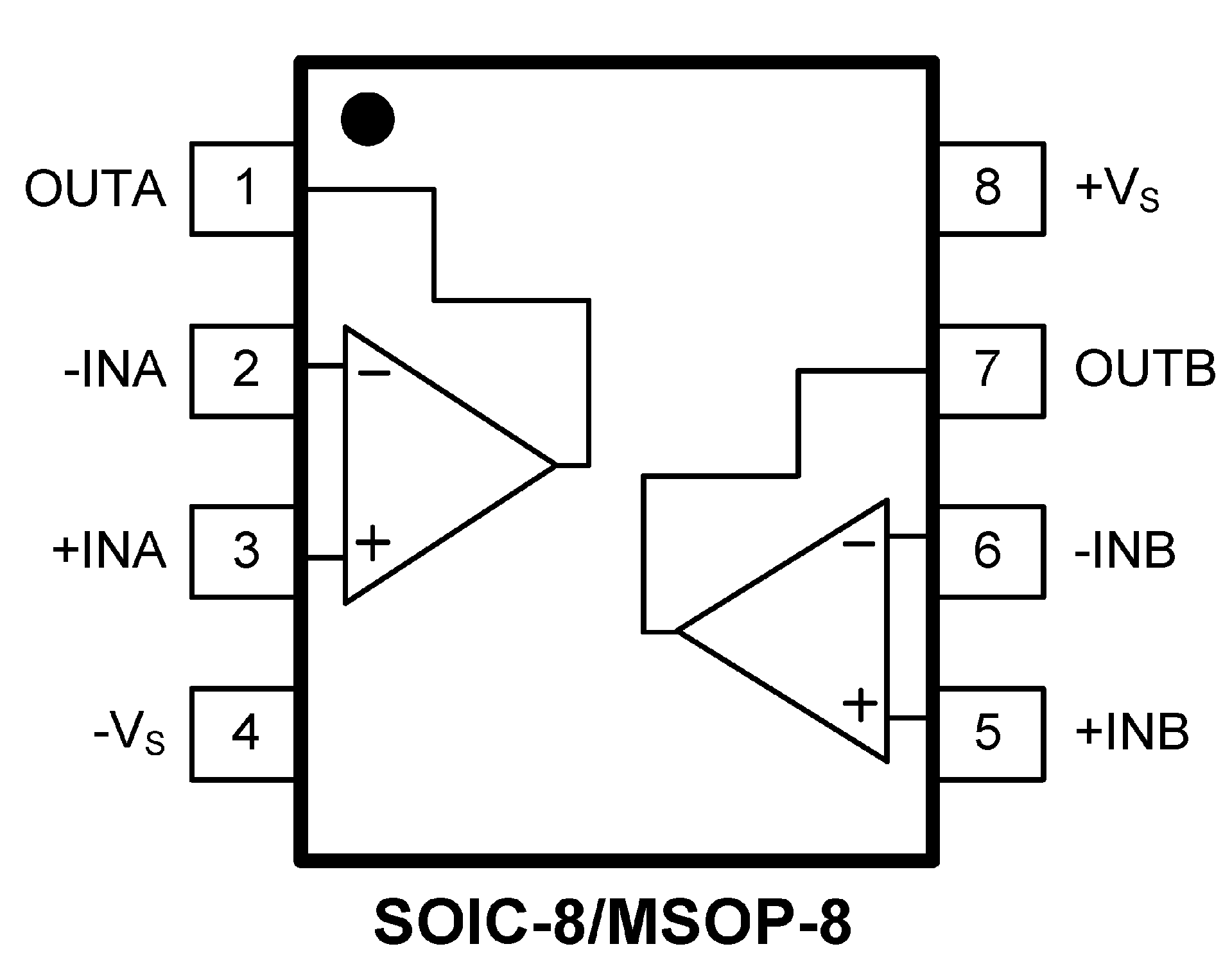

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Supply voltage range 2.7V to 12V
? Guaranteed at 3.3V, 5V and ±5V
? Low supply current 1mA per channel
? Unity gain bandwidth 4.5MHz
? Open loop gain 133dB
? Input offset voltage 500μV max
? Input bias current 0.3pA
? CMRR 112dB
? Input voltage noise 20nV/√Hz voltage
? Rail-to-Rail input
? Rail-to-Rail output

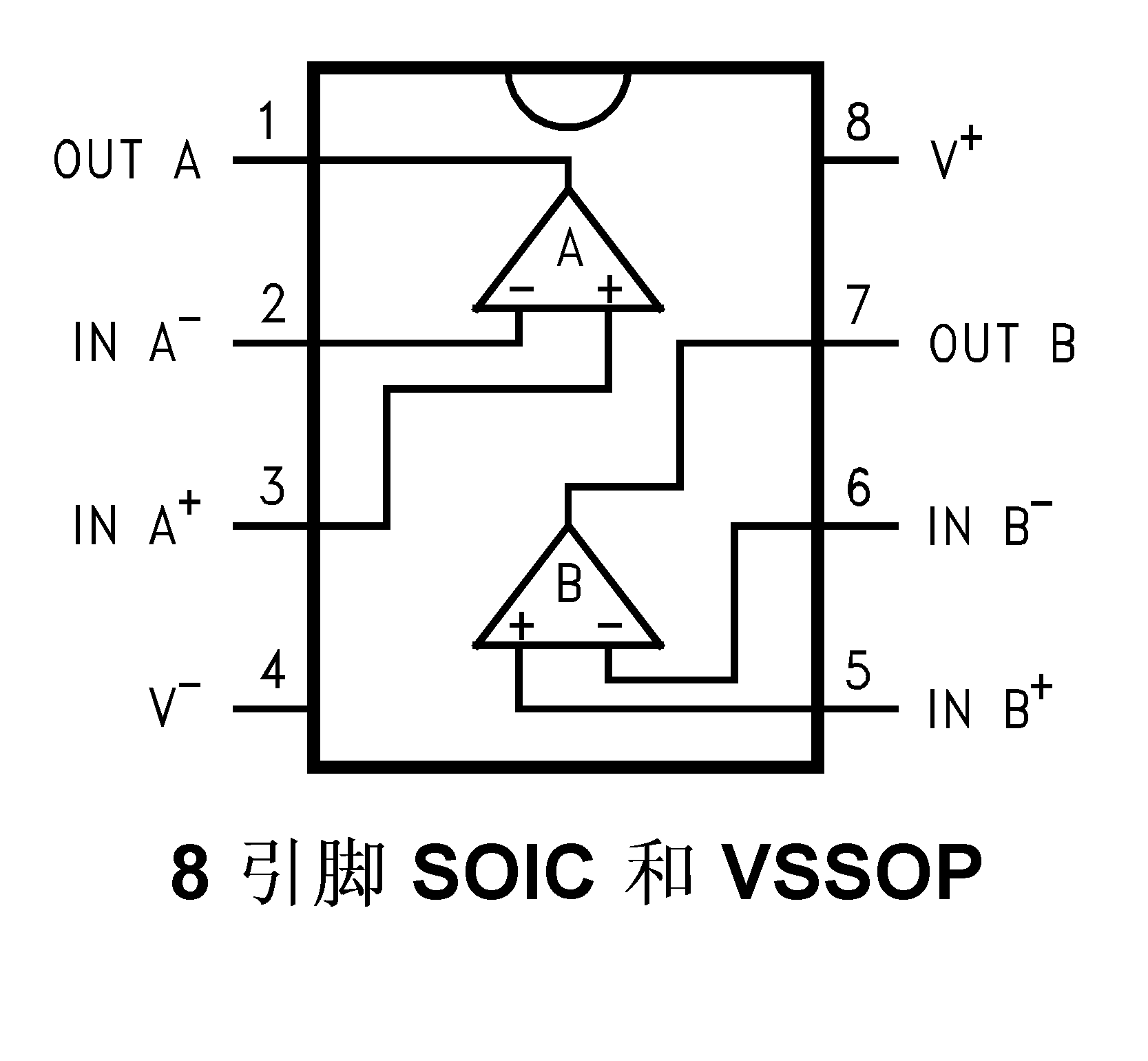

PIN CONFIGUTION
