1.1MHz, 46μA, Rail-to-Rail I/OCMOS Operational Amplifiers,SGM8544XTS14TRReplaceAD8609ARUZ.
SGM8544XTS14TR
SGM8544XTS14TR.pdf
SGM8544XTS14TR.pdfFEATURES
? Low Cost
? Rail-to-Rail Input and Output
0.8mV Typical VOS
? Unity Gain Stable
? Gain-Bandwidth Product: 1.1MHz
? Very Low Input Bias Current: 0.5pA
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range:
-0.1V to +5.6V with VS = 5.5V
? Low Supply Current: 46μA/Amplifier
? Small Packaging:
SGM8541 Availablein Green SOIC-8, SC70-5 and SOT-23-5 Packages
SGM8542 Available in Green SOIC-8, MSOP-8 and TSSOP-8 Packages
SGM8544 Available in Green SOIC-14 and TSSOP-14 Packages

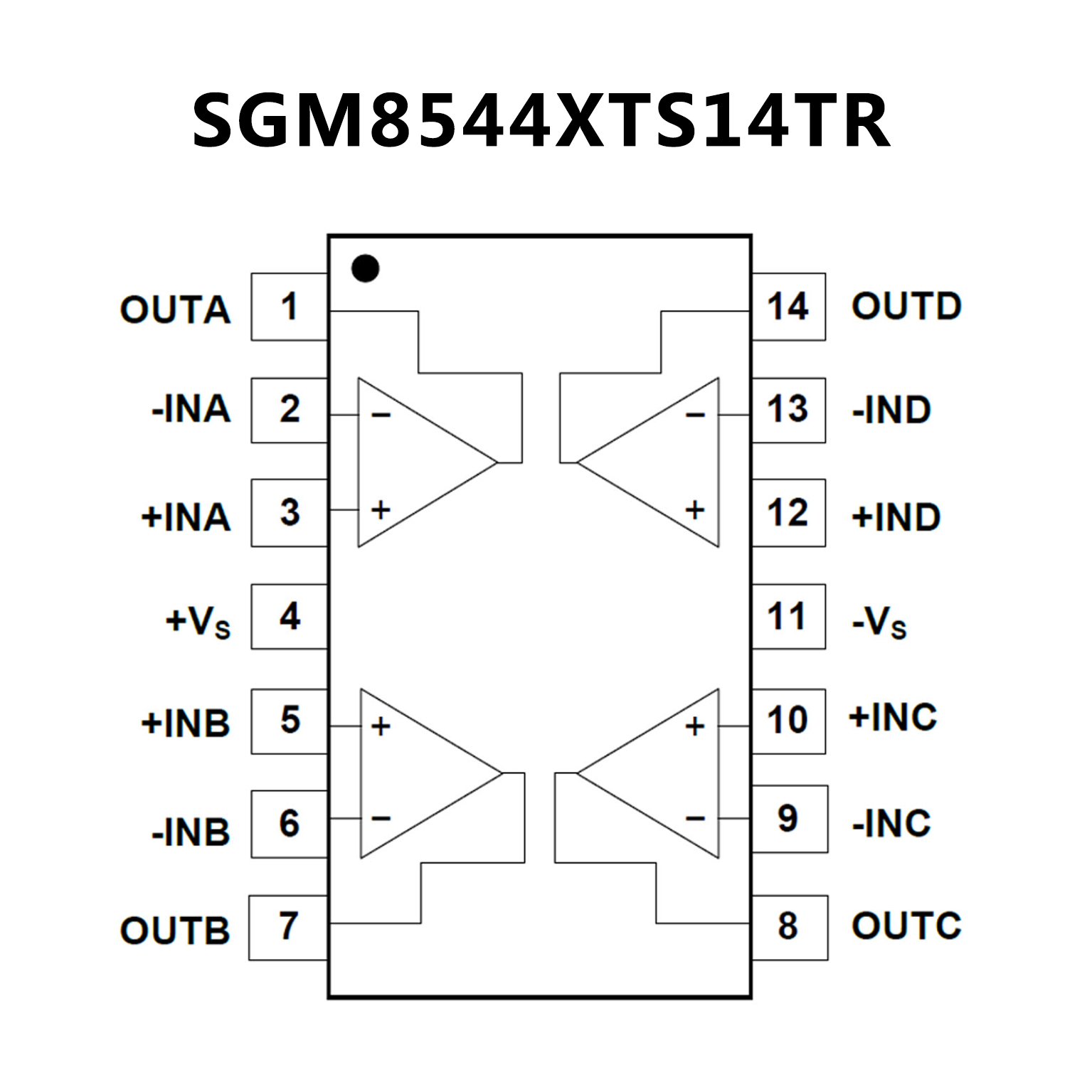

PIN CONFIGUTION
優勢替代
FEATURES
? 低失調電壓：50 μV(最大值)
? 低輸入偏置電流：1 pA(最大值)
? 單電源供電：1.8 V至5 V
? 低噪聲：22 nV/√Hz
? 微功耗：50 μA(最大值)
? 低失真
? 無相位反轉
? 單位增益穩定

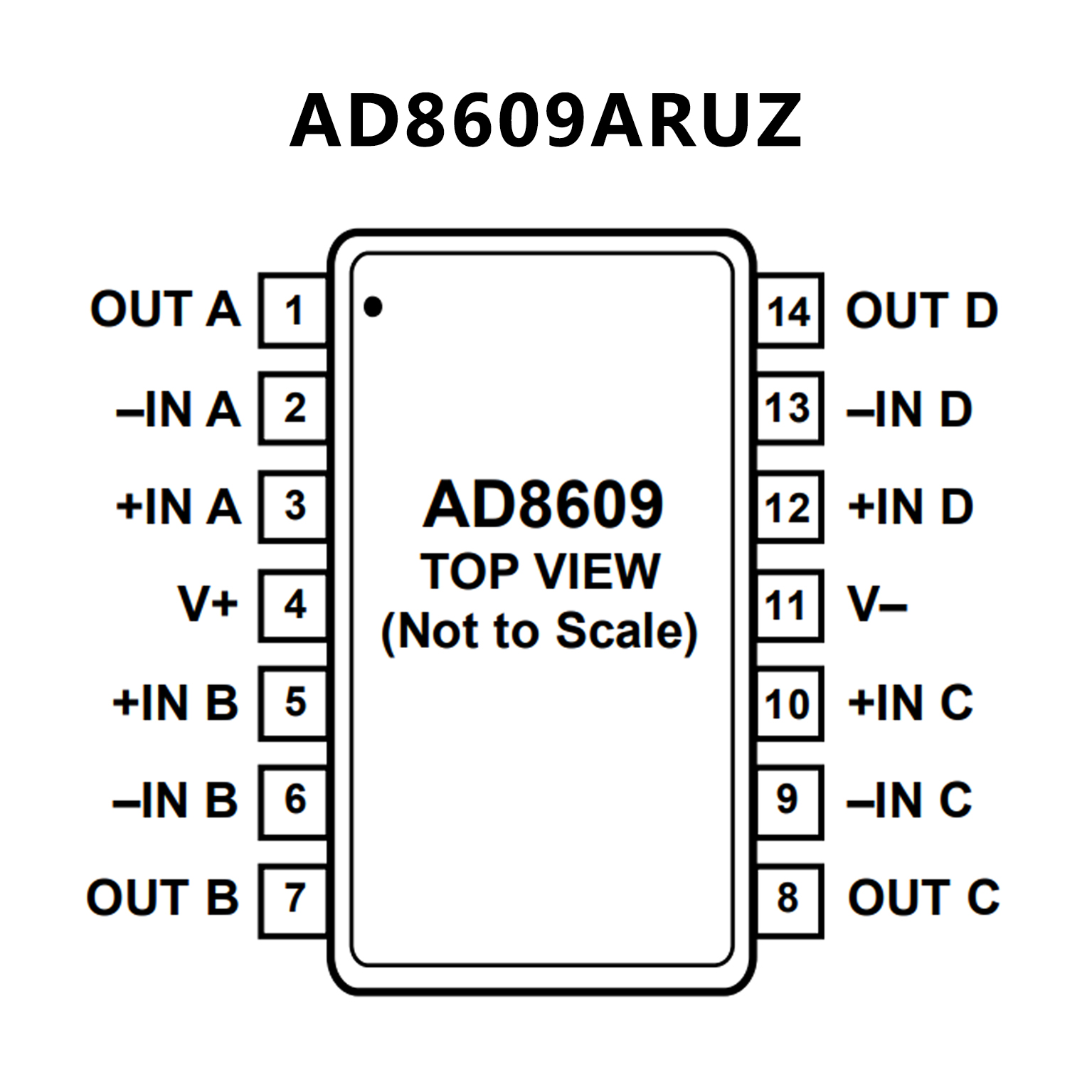

PIN CONFIGUTION
