1.1MHz, 46μA, Rail-to-Rail I/O CMOS Operational Amplifiers,SGM8544 Replace LMV934.
SGM8544
SGM8544.pdf
SGM8544.pdfFEATURES
? Low Cost
? Rail-to-Rail Input and Output0.8mV Typical VOS
? Unity Gain Stable
? Gain-Bandwidth Product: 1.1MHz
? Very Low Input Bias Current: 0.5pA
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range:
-0.1V to +5.6V with VS = 5.5V
? Low Supply Current: 46μA/Amplifier
? Small Packaging:
SGM8541 Available in Green SOIC-8,
SC70-5and SOT-23-5 Packages
SGM8542 Available in Green SOIC-8,
MSOP-8and TSSOP-8 Packages
SGM8544 Available in Green
SOIC-14 andTSSOP-14 Packages

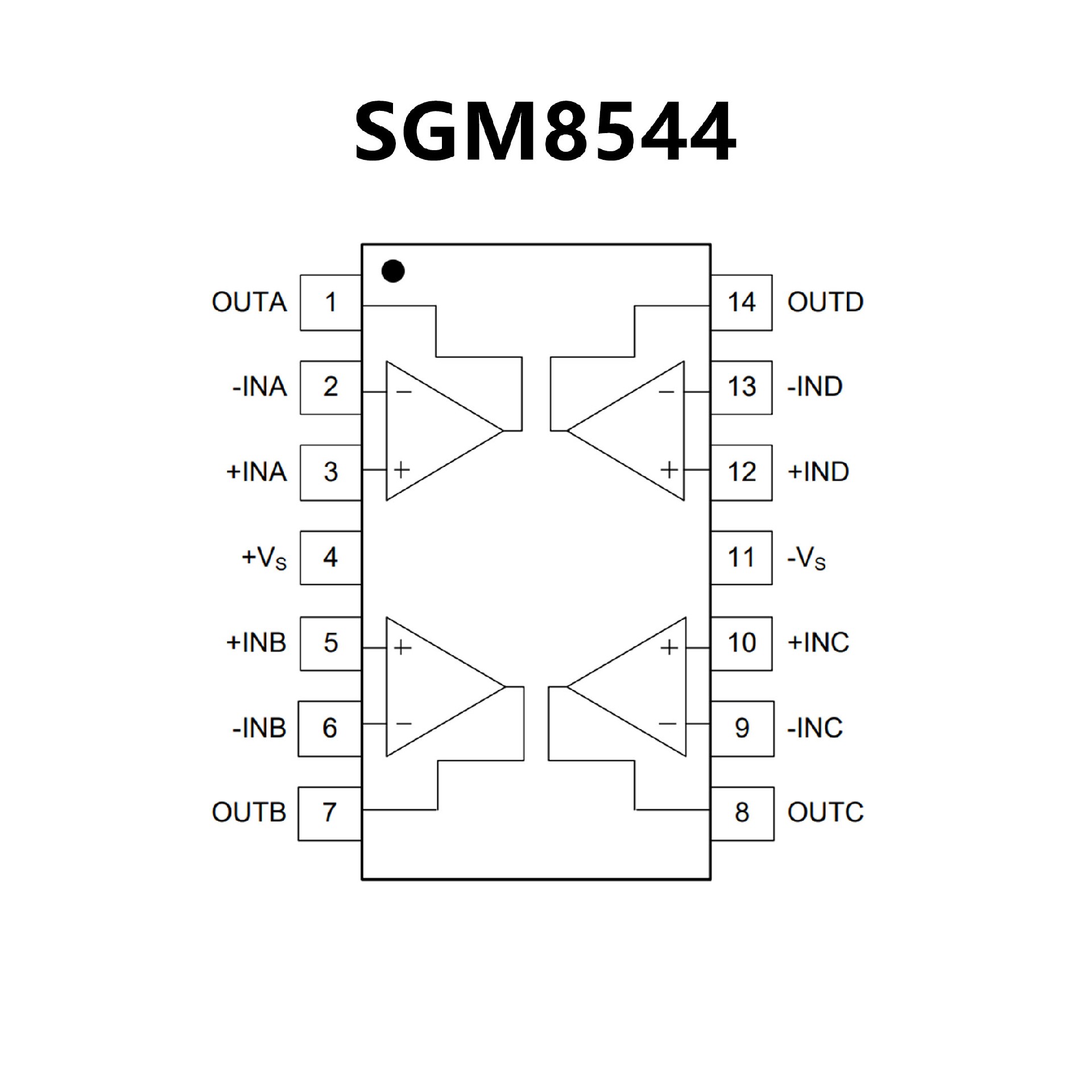

PIN CONFIGUTION
