1.1MHz, 46μA, Rail-to-Rail I/O, CMOS Operational Amplifiers,SGM8542XMSTR-Replace-BU7242FVM-TR.
SGM8542XMSTR
SGM8542XMSTR.pdf
SGM8542XMSTR.pdfFEATURES
? Low Cost
? Rail-to-Rail Input and Output
? Input Offset Voltage: 3.5mV (MAX)
? Unity Gain Stable
? Gain-Bandwidth Product: 1.1MHz
? Very Low Input Bias Current: 0.5pA
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range:-0.1V to 5.6V with VS = 5.5V
? Low Supply Current: 46μA/Amplifier
? Small Packaging:SGM8541 Available in Green
SOIC-8, SC70-5and SOT-23-5 PackagesSGM8542
Available in Green SOIC-8, MSOP-8and
TSSOP-8 PackagesSGM8544 Available in
Green SOIC-14 andTSSOP-14 Packages

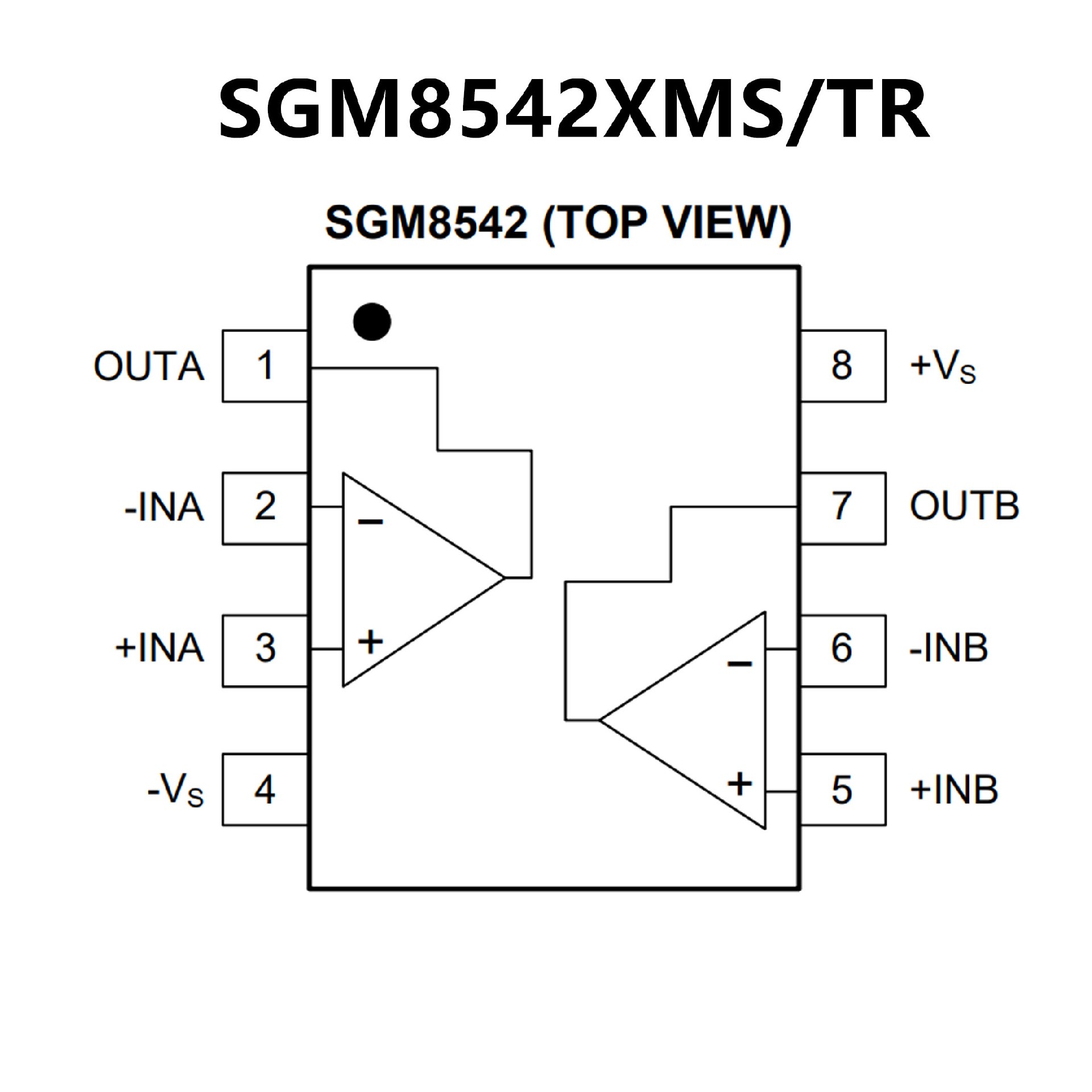

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Operable with Low Voltage
? Operable Input-Output Full Swing
? Wide Temperature Range
? Low Supply Current
? Low Input Bias Current

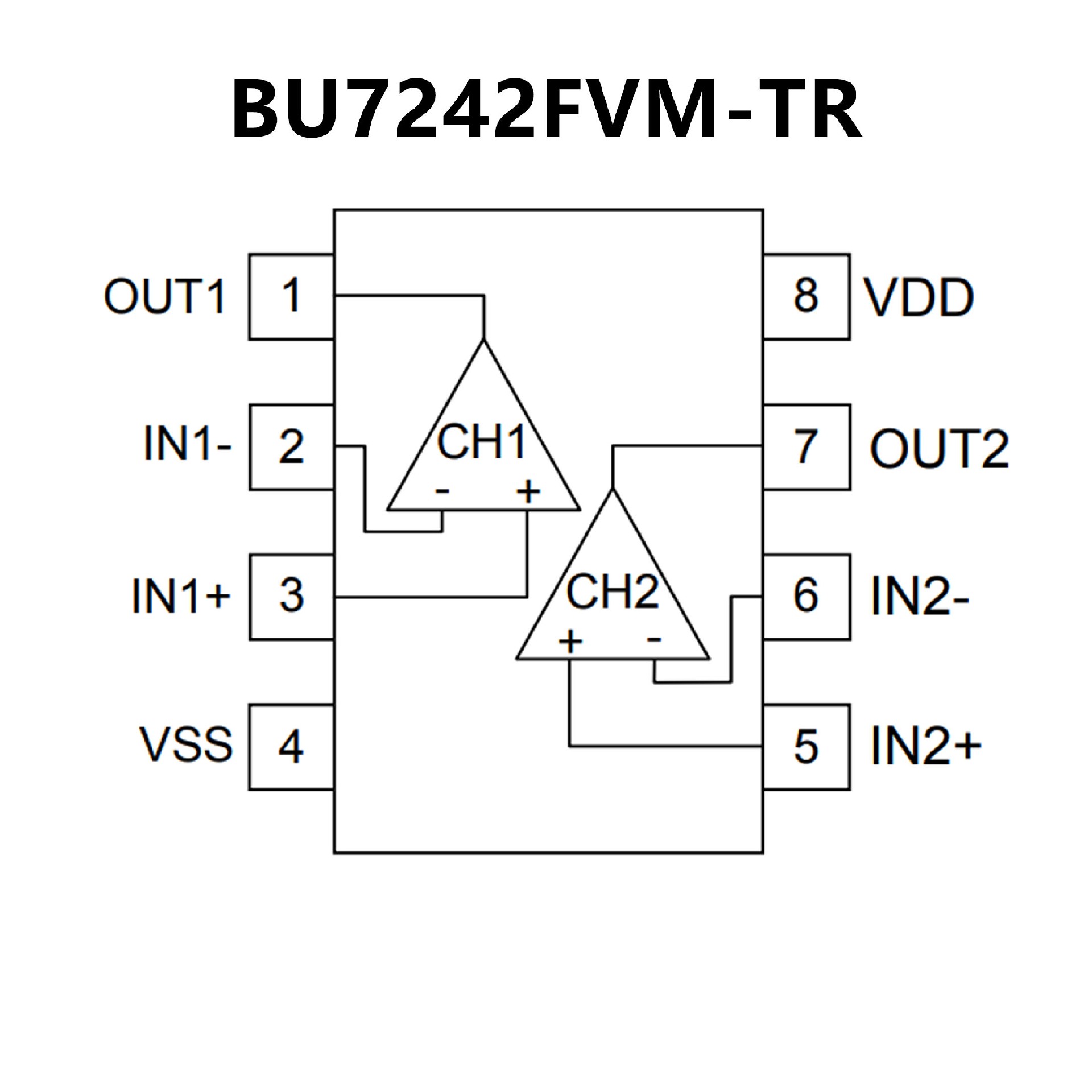

PIN CONFIGUTION
