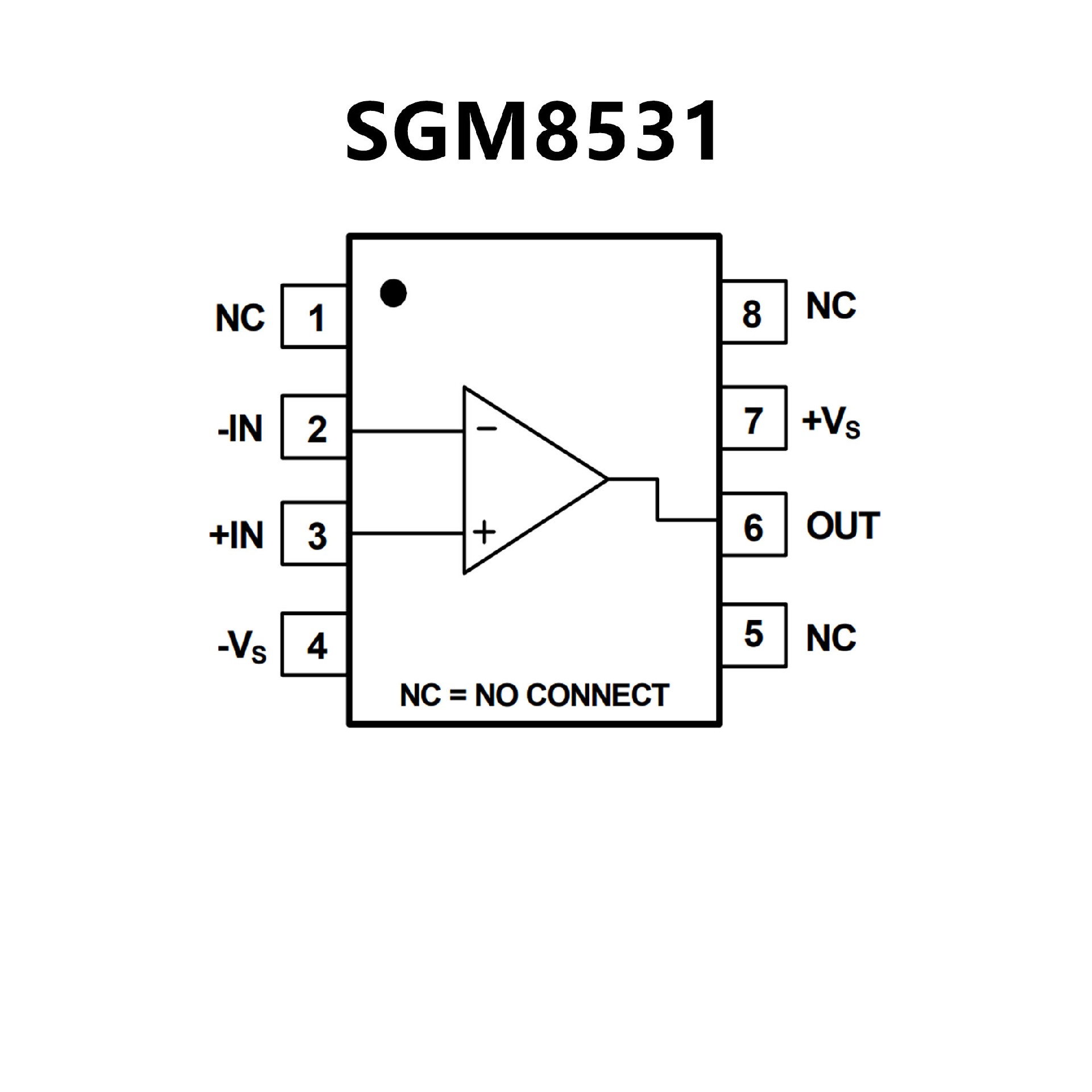

SGM8531.pdf? Low Cost
? Rail-to-Rail Input and Output
0.8mV Typical VOS
? Unity Gain Stable
? Gain-Bandwidth Product: 500kHz
? Very Low Input Bias Current: 0.5pA
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range:-0.1V to +5.6V with VS = 5.5V
? Low Supply Current: 18μA/Amplifier
? Small Packaging
SGM8531 Available in SOIC-8 and SOT-23-5
SGM8532 Available in SOIC-8 and MSOP-8
SGM8534 Available in SOIC-14 and TSSOP-14

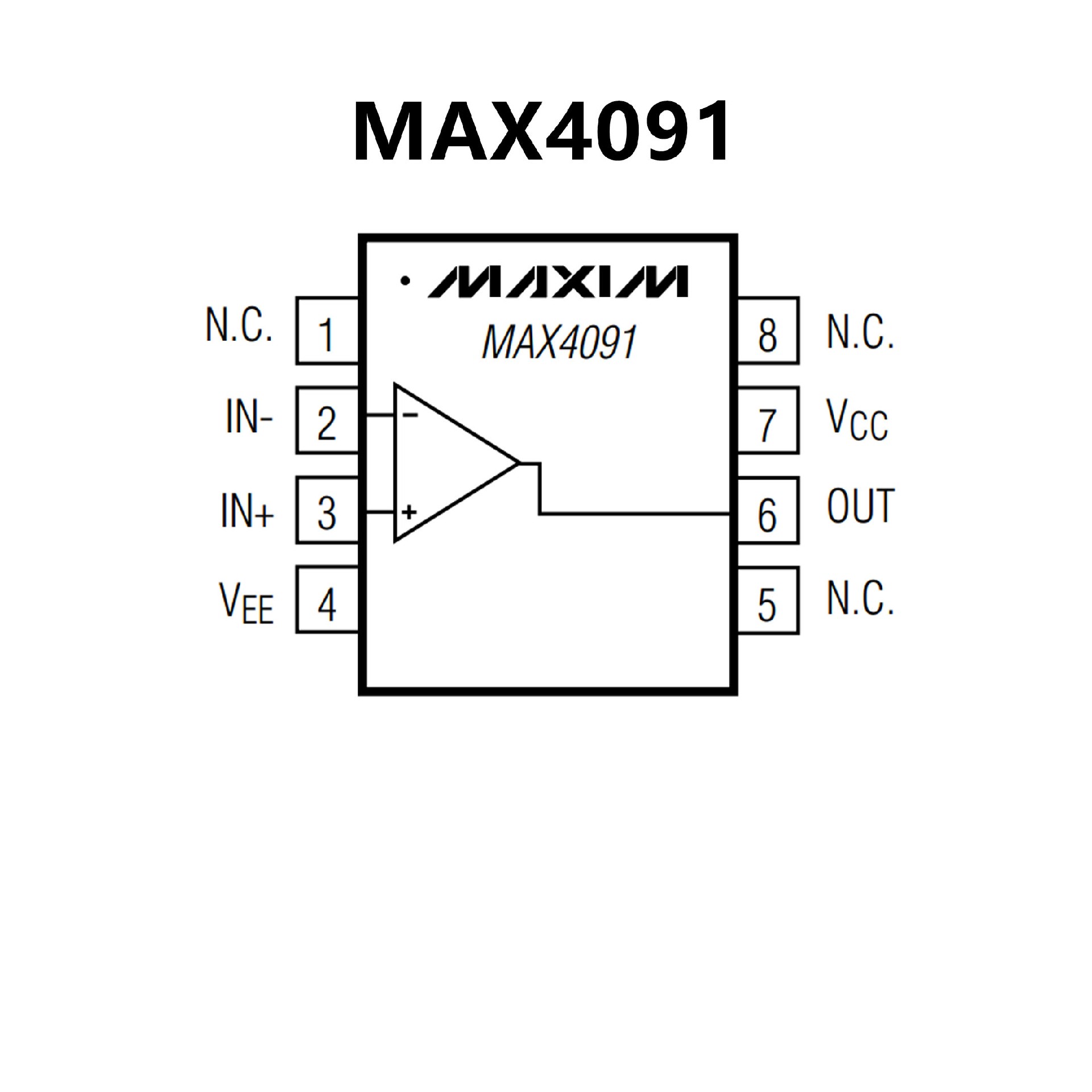

? Low-Voltage, Single-Supply Operation (2.7V to 6V)
? Beyond-the-Rails? Inputs
? No Phase Reversal for Overdriven Inputs
? 30μV Offset Voltage
? Rail-to-Rail Output Swing with 1k? Load
? Unity-Gain Stable with 2000pF Load
? 165μA (max) Quiescent Current Per Op Amp
? 500kHz Gain-Bandwidth Product
? High Voltage Gain (115dB)
? High Common-Mode Rejection Ratio (90dB)
andPower-Supply Rejection Ratio (100dB)
? Temperature Range (-40°C to +125°C)
