High Voltage, High Precision, Low Noise,Over the Rail Difference Amplifier,SGM8478-1CXS8G Replace TP199.
SGM8478-1CXS8G
SGM8478-1CXS8G.pdf
SGM8478-1CXS8G.pdfFEATURES
? Low Offset Voltage: 16μV (MAX)
? 4.5V to 36V Single Supply Operation
? Input Signal Range:
(-VS) - 0.1V to (+VS) + 1V for Dual Power Supplies
GND - 0.1V to (+VS) + 1V for Single Power Supply
? Rail-to-Rail Output
? Gain: 50V/V
? PSRR: 0.05μV/V (TYP)
? CMRR: 106dB (TYP)
? 0.1Hz to 10Hz Noise: 0.75μVP-P
? Input Voltage Noise Density: 39nV/Hzat 1kHz
? -3dB Bandwidth: 230kHz
? Integrated Matched Resistors for Differential Applications
? Supply Current: 1.55mA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and TDFN-3×3-8L Packages

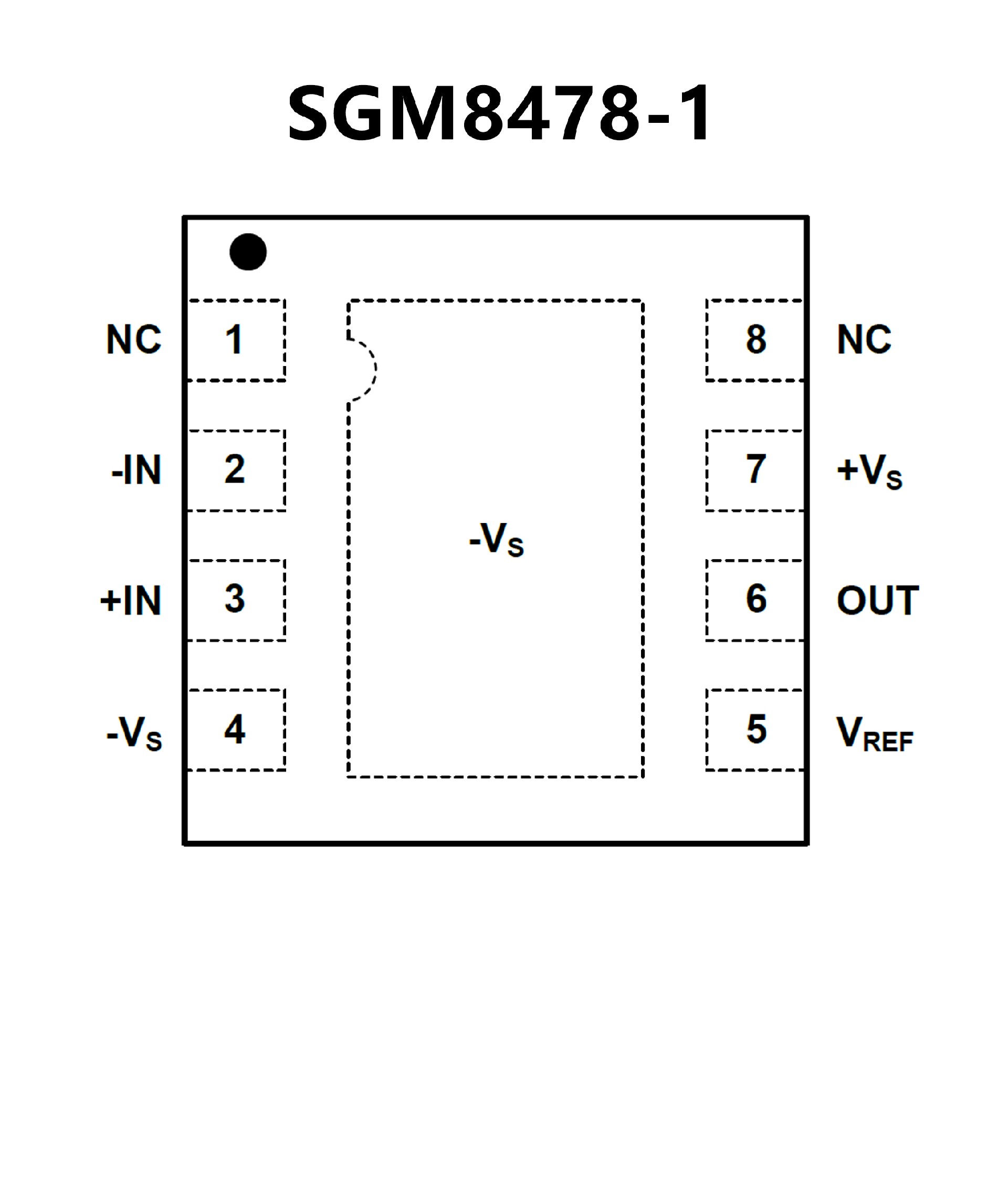

PIN CONFIGUTION
