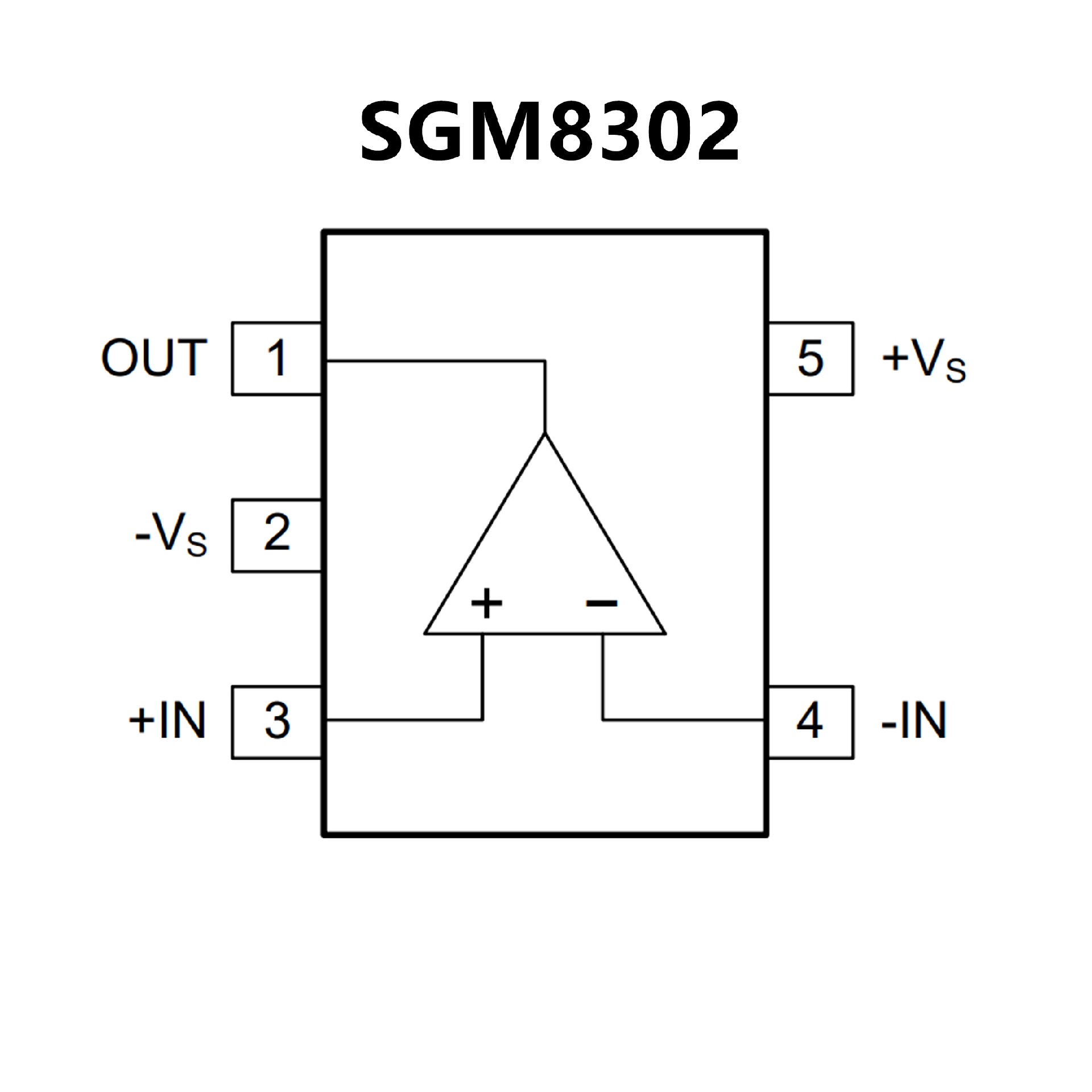

SGM8302.pdf? 4.5V to 12V Single Supply or ±2.25V
to ±6VDual Power Supplies
? High Speed:100MHz -3dB Bandwidth
56MHz -0.1dB Gain Flatness155V/μs Slew Rate
? Rail-to-Rail Output
? Low Differential Gain/Phase: 0.02%/0.02°
? High Output Drive: 103mA
? -40℃ to +85℃ Operating Temperature Range
? Small Packaging:
SGM8301 Available in SOT-23-5, SOIC-8and MSOP-8
SGM8302 Available in MSOP-8 and SOIC-8
SGM8304 Available in SOIC-14 and TSSOP-14

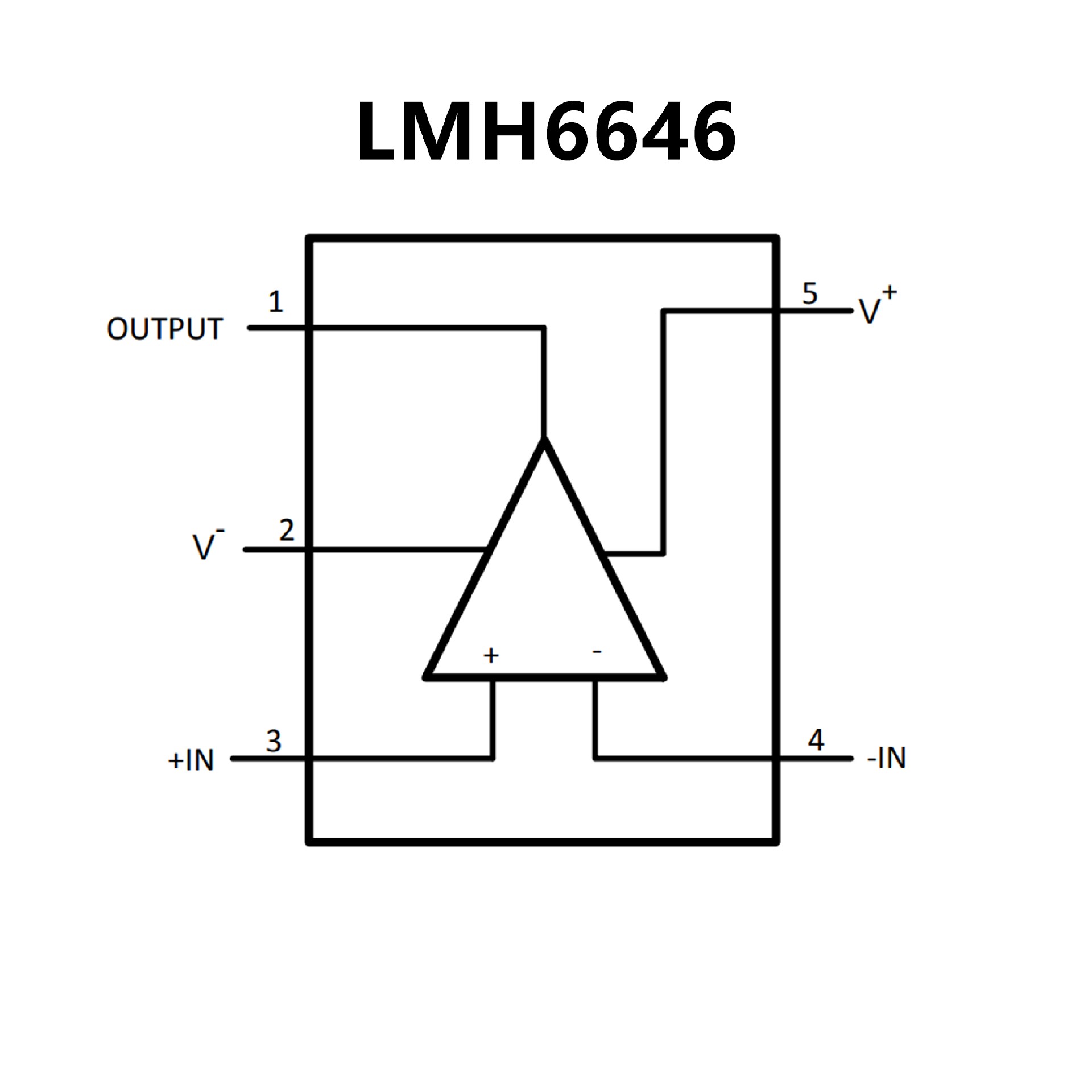

? (VS = 2.7V, TA = 25°C, RL = 1k? to V+/2, AV = +1.
? Typical Values Unless Specified.
? ?3dB BW 55 MHz
? Supply Voltage Range 2.5 V to 12 V
? Slew Rate 22 V/μs
? Supply Current 650 μA/channel
? Output Short Circuit Current 42 mA
? Linear Output Current ±20 mA
? Input Common Mode Voltage 0.3 V Beyond Rails
? Output Voltage Swing 20 mV from Rails
? Input Voltage Noise 17 nV/√Hz
? Input Current Noise 0.75 pA/√Hz
