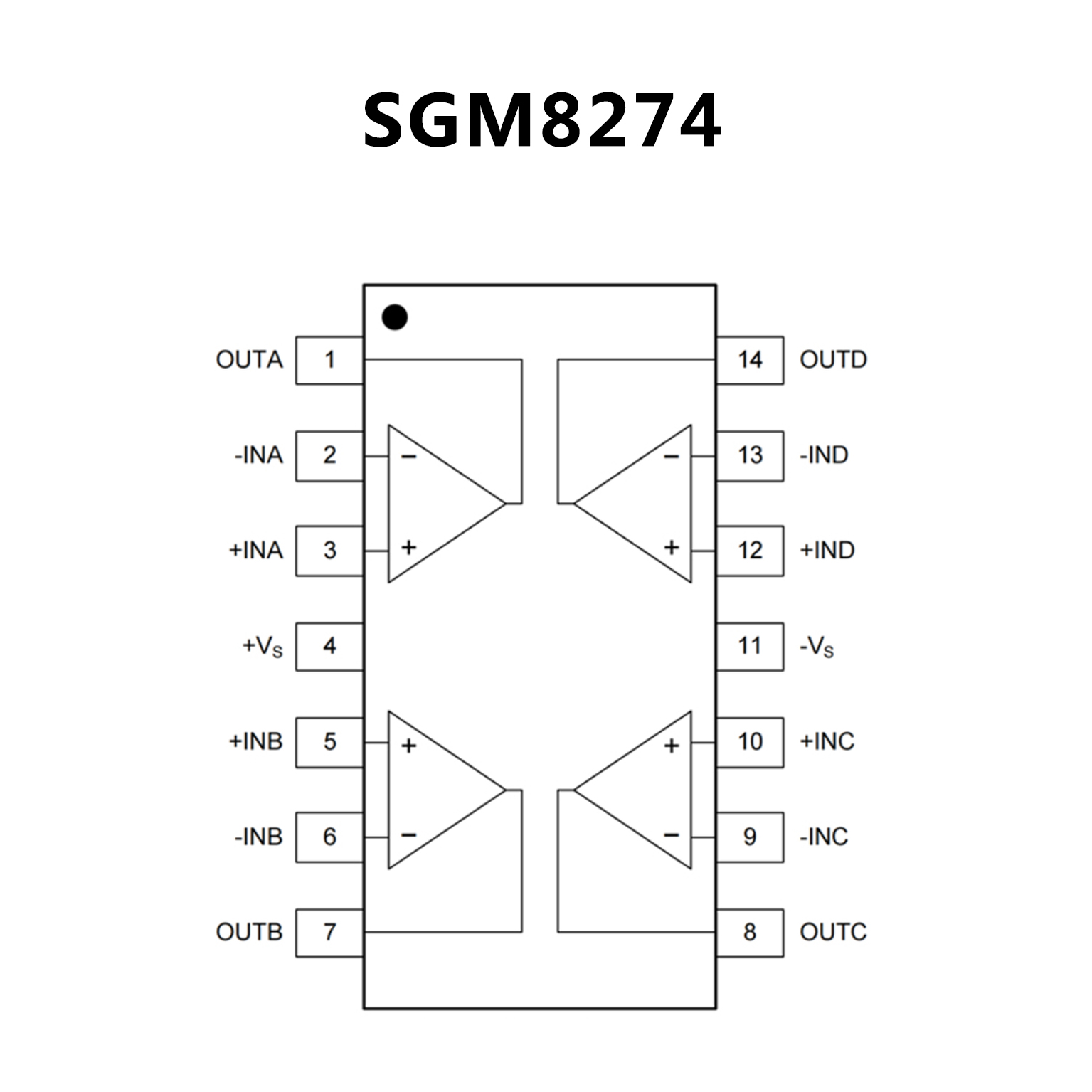

SGM8274.pdf? Low Power Consumption: 150μA/Amplifier
? Wide Input Common Mode Voltage Range
? Low Input Bias and Offset Currents
? Output Short-Circuit Protection
? Rail-to-Rail Output
? High Input Impedance
? Low Offset Voltage: 3mV (MAX)
? High Slew Rate: 7V/μs
? Small Packaging:
SGM8274 Available in Green TSSOP-14 and
SOIC-14

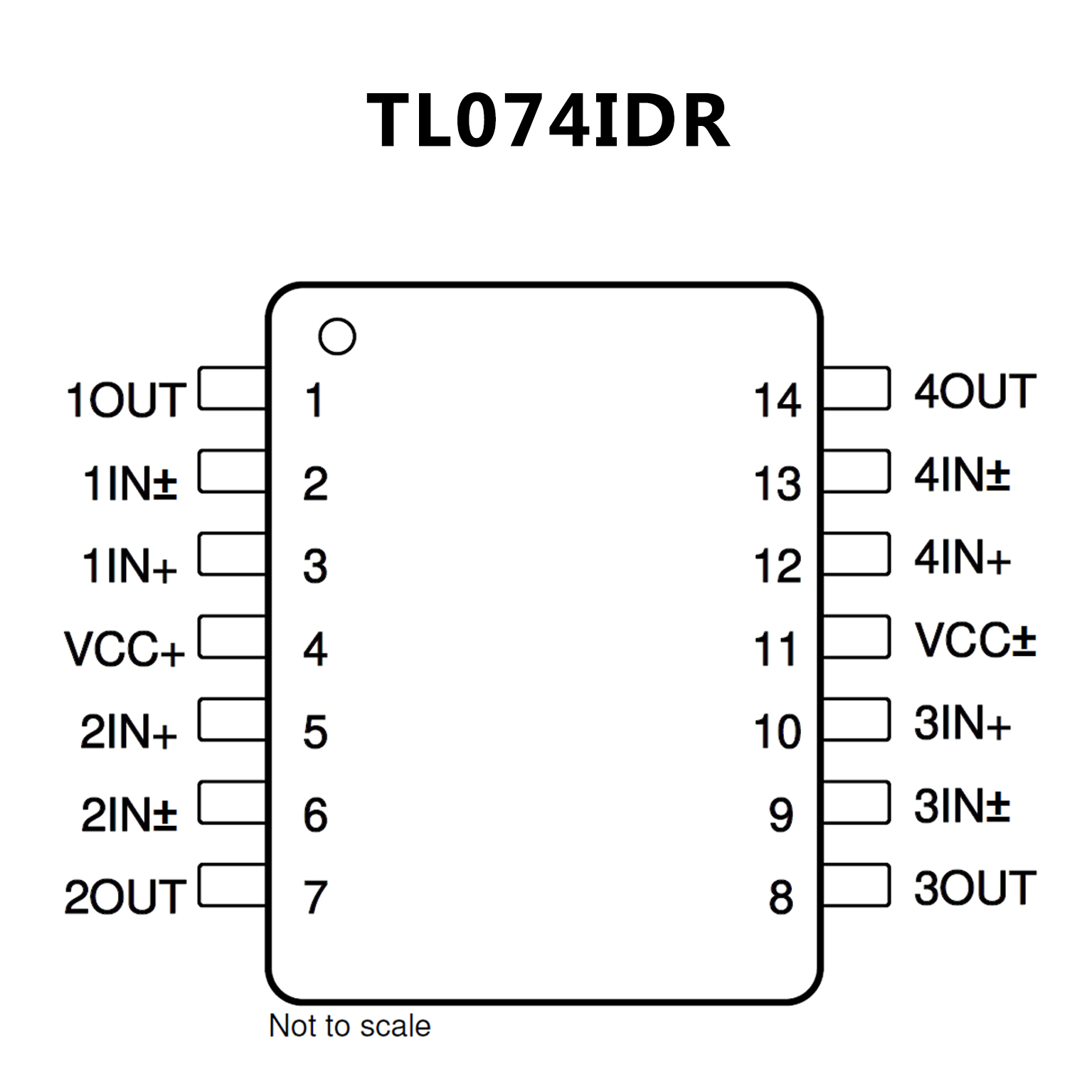

? High slew rate: 20 V/μs (TL07xH, typ)
? Low offset voltage: 1 mV (TL07xH, typ)
? Low offset voltage drift: 2 μV/°C
? Low power consumption: 940 μA/ch (TL07xH, typ)
? Wide common-mode and differential voltage ranges
Common-mode input voltage range includes VCC+
? Low input bias and offset currents Low noise:
Vn = 18 nV/√Hz (typ) at f = 1 kHz
? Output short-circuit protection
? Low total harmonic distortion: 0.003% (typ)
? Wide supply voltage:
±2.25 V to ±20 V, 4.5 V to 40 V
