High Voltage Rail-to-Rail Output Operational Amplifier, SGM8274XS14G/TR Replace TL074CDR.
SGM8274
SGM8274.pdf
SGM8274.pdfFEATURES
? Low Power Consumption: 150μA/Amplifier
? Wide Input Common Mode Voltage Range
? Low Input Bias and Offset Currents
? Output Short-Circuit Protection
? Rail-to-Rail Output
? High Input Impedance
? Low Offset Voltage: 3mV (MAX)
? High Slew Rate: 7V/μs
? Small Packaging:
SGM8274 Available in Green TSSOP-14 and
SOIC-14

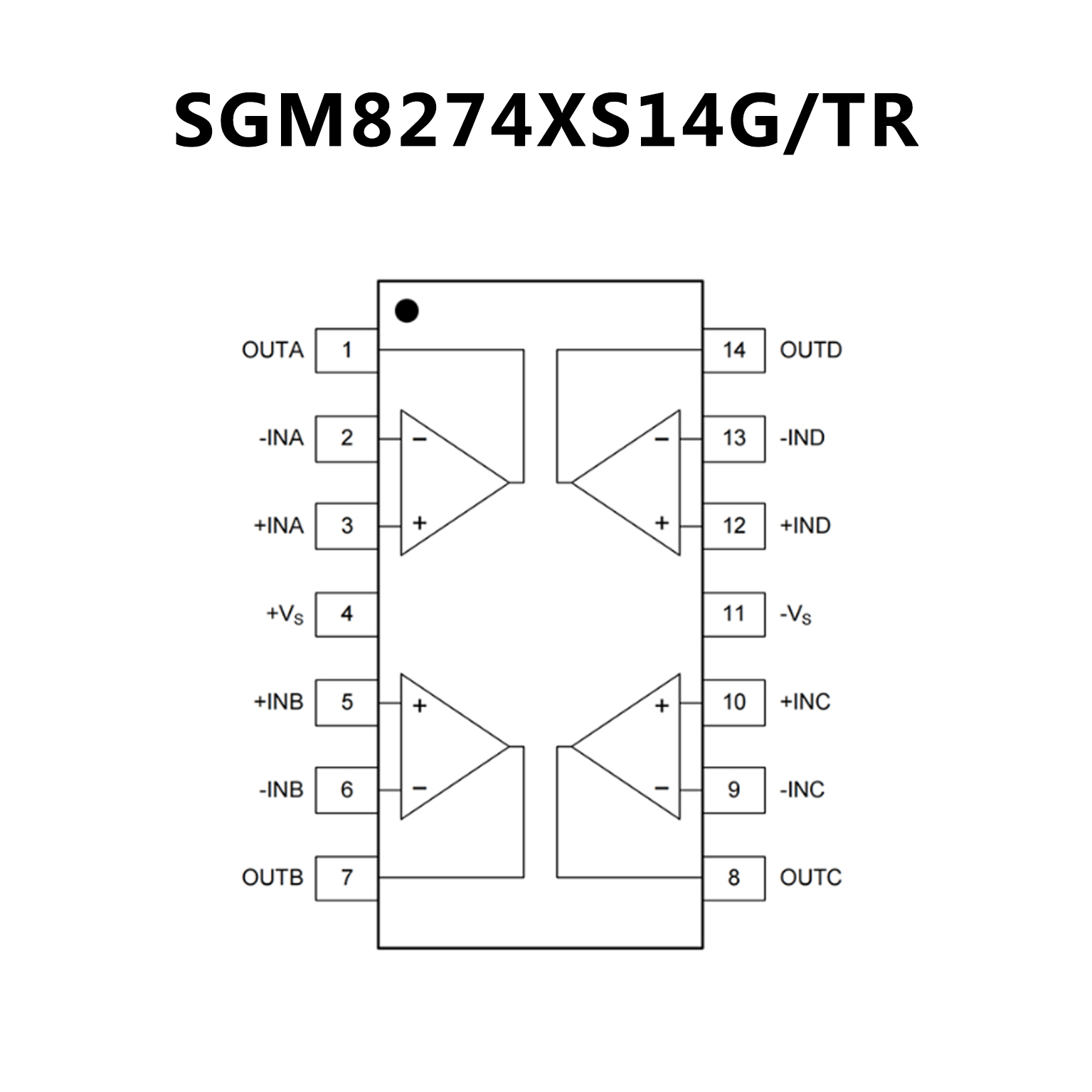

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Low Power Consumption: 1.4 mA/ch Typical
? Wide Common-Mode and Differential Voltage
Ranges
? Low Input Bias Current: 30 pA Typical
? Low Input Offset Current: 5 pA Typical
? Output Short-Circuit Protection
? Low Total Harmonic Distortion: 0.003% Typical
? High Input Impedance: JFET Input Stage
? Latch-Up-Free Operation
? High Slew Rate: 13 V/μs Typical
? Common-Mode Input Voltage Range
Includes VCC+

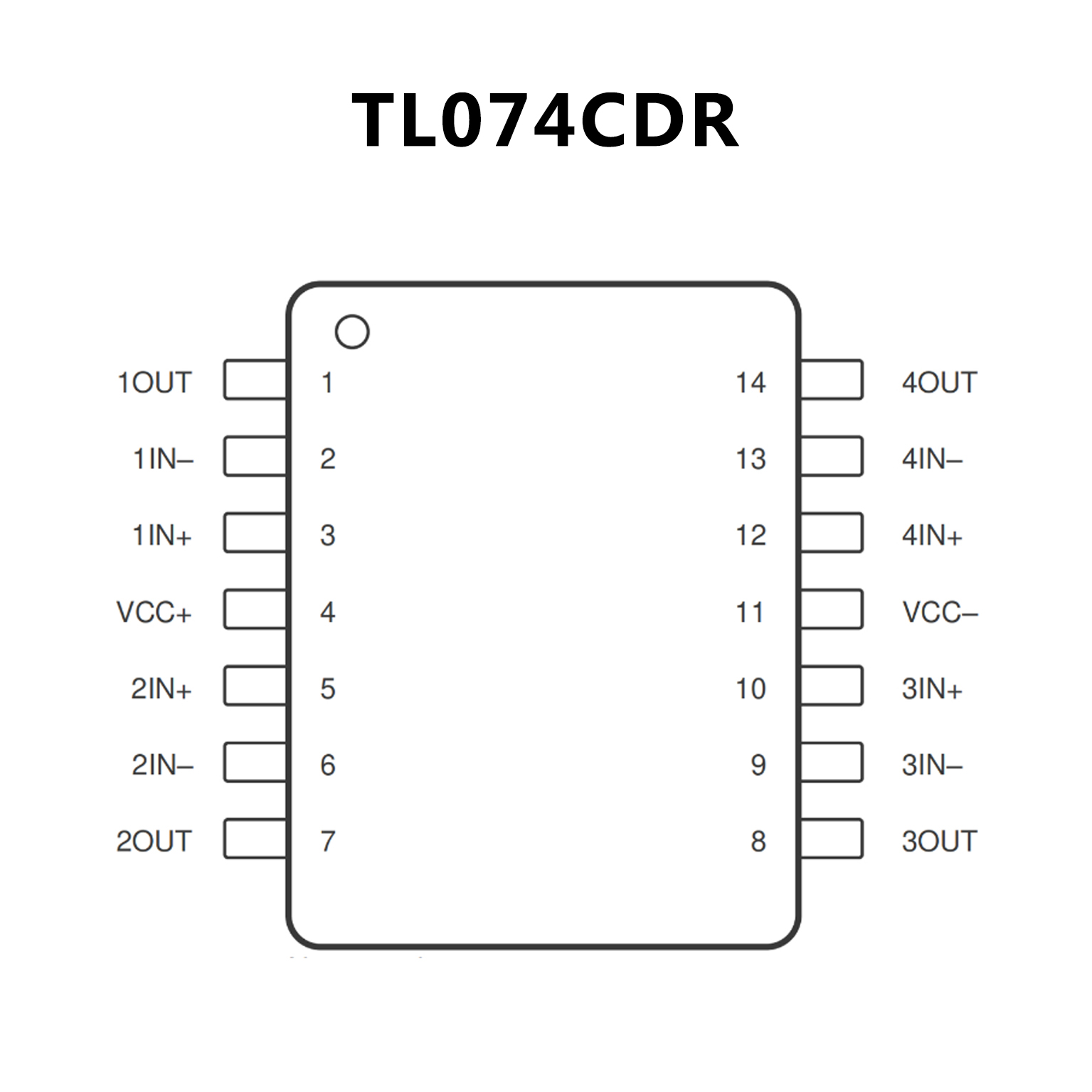

PIN CONFIGUTION
