Low Noise, Precision, High Voltage,Rail-to-Rail I/O Operational Amplifie,SGM8270-4 Replace TS914AID.
SGM8270-4
SGM8270-4.pdf
SGM8270-4.pdfFEATURES
? Wide Input Common Mode and Differential
Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1.2mV (MAX)
? Low Noise: 15nV/ Hz at 1kHz
? Gain-Bandwidth Product: 2.2MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-14 and TSSOP-14 Packages

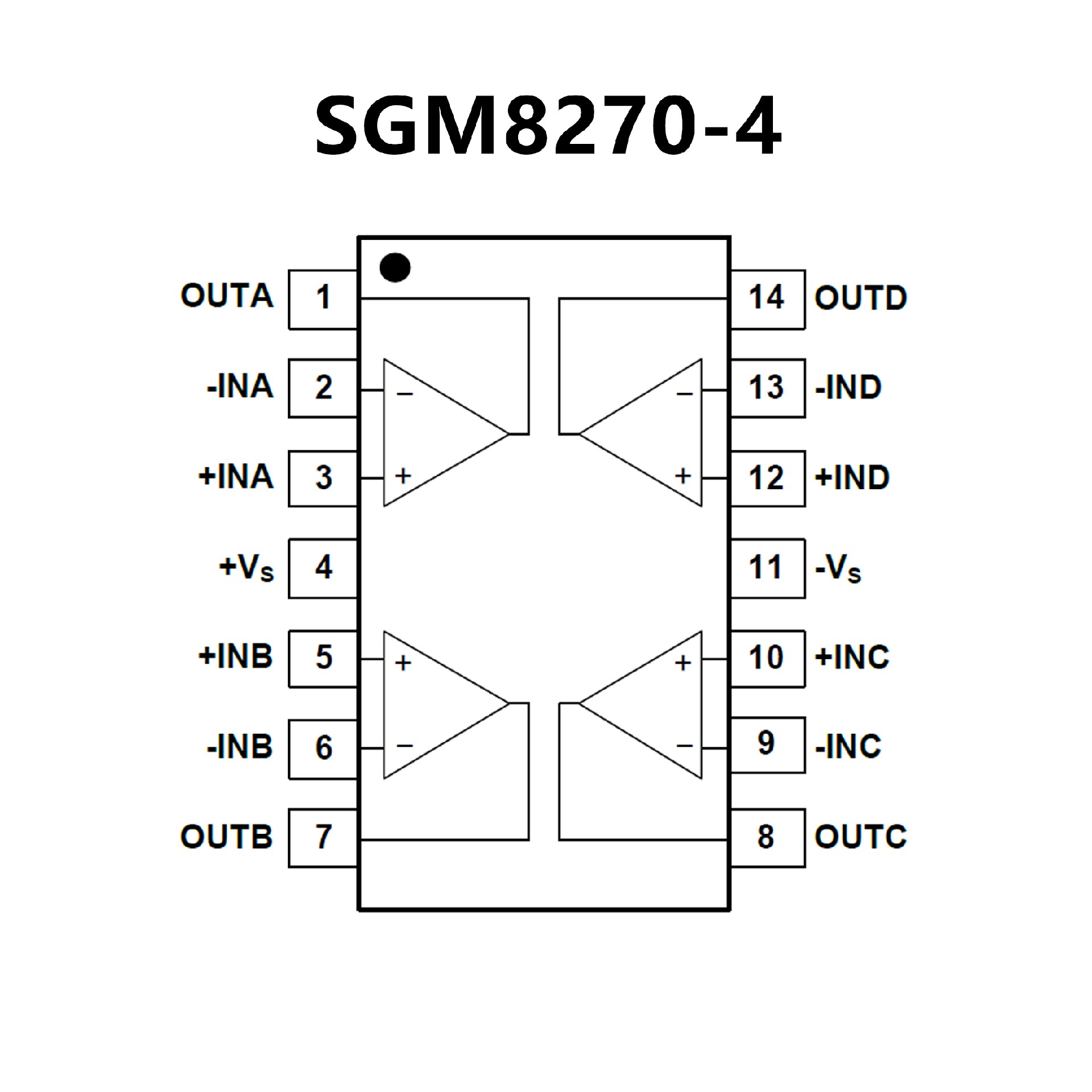

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Rail-to-rail input and output voltage ranges
? Single (or dual) supply operation from 2.7 to
16 V
? Extremely low input bias current: 1 pA typical
? Low input offset voltage: 5 mV max. (A grade)
? Specified for 600 Ω and 100 Ω loads
? Low supply current: 200 μA/ampli. (VCC = 3 V)
? Latch-up immunity
? Spice macromodel included in this specification

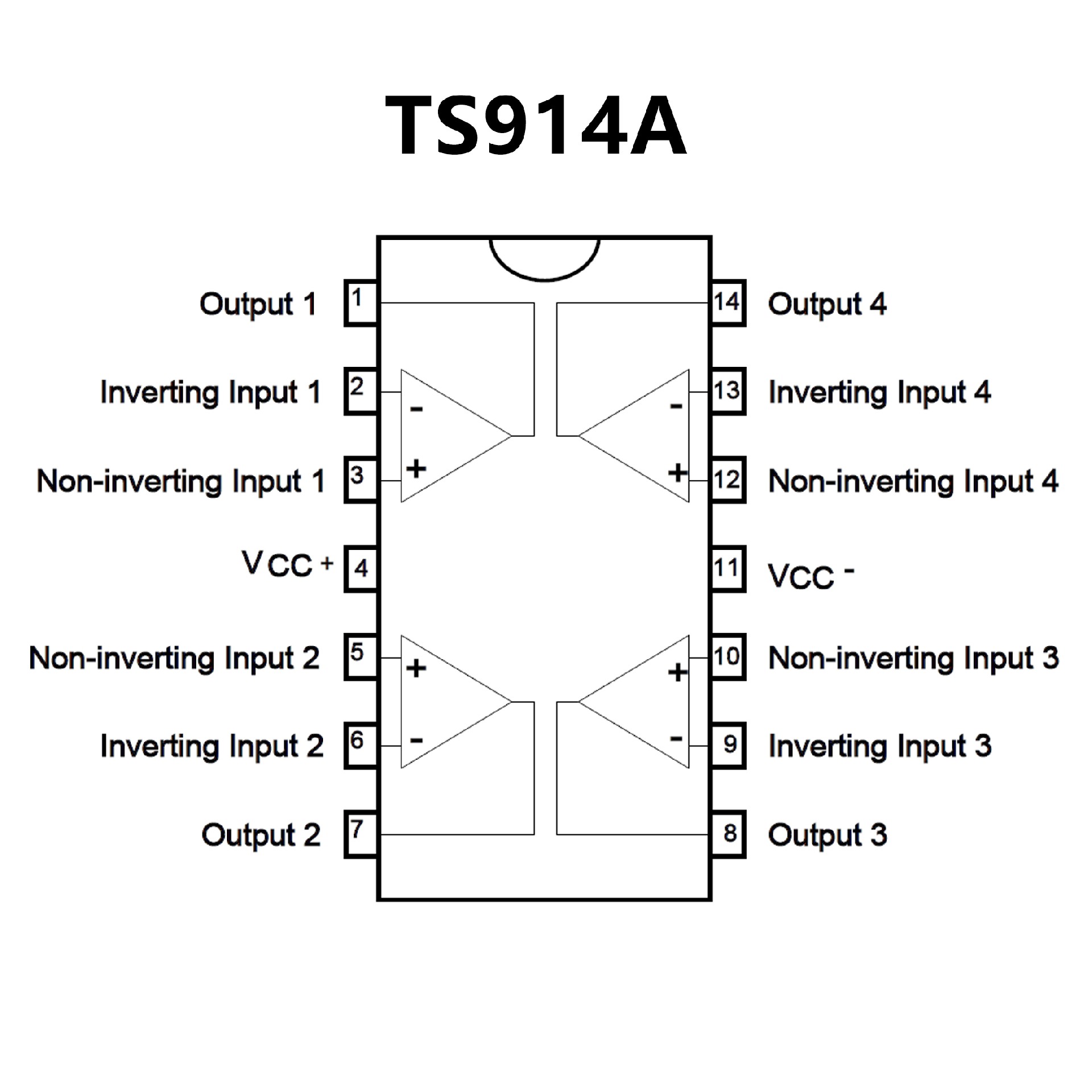

PIN CONFIGUTION
