Low Noise, Precision, High Voltage, Rail-to-Rail I/O Operational Amplifier,SGM8270 Replace HA17358A.
SGM8270
SGM8270.pdf
SGM8270.pdfFEATURES
? Wide Input Common Mode and
Differential
Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 2.8mV (MAX)
? Low Noise: 15nV/ Hz at 1kHz
? Gain-Bandwidth Product: 2.5MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

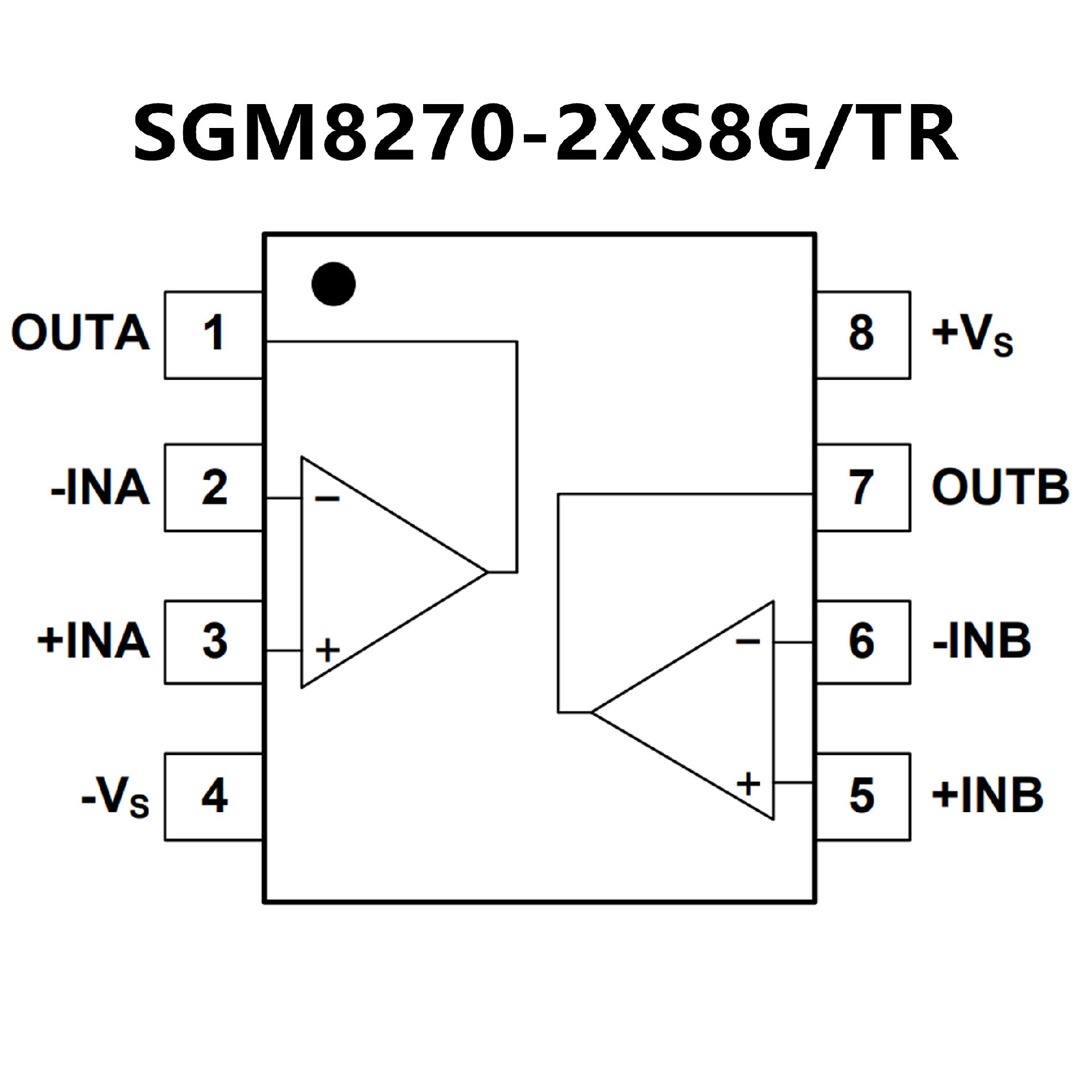

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Wide range of supply voltage,
and single power supply used
? Wide range of common mode
voltage, and possible to operate
with an input about 0 V, and output
around 0 V is
available
? Frequency characteristics and
input bias current are temperature compensated
? Low electro-magnetic susceptibility level

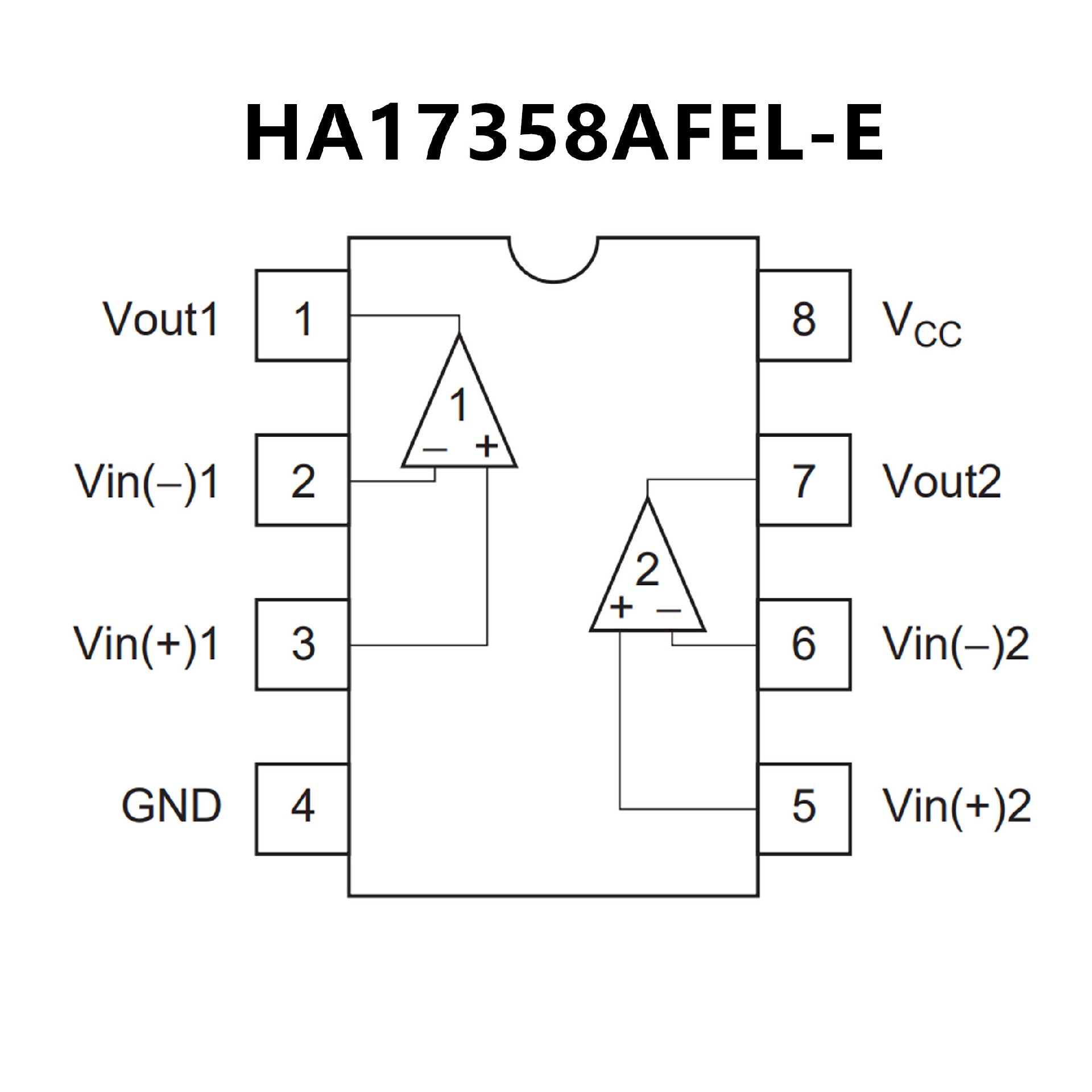

PIN CONFIGUTION
