Low Noise, Precision, High Voltage,Rail-to-Rail I/O Operational Amplifier,SGM8270-2XS8G Replace UPC812.
SGM8270-2XS8G
SGM8270-2XS8G.pdf
SGM8270-2XS8G.pdfFEATURES
? Wide Input Common Mode and
Differential Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 2.8mV (MAX)
? Low Noise: 15nV/Hz at 1kHz
? Gain-Bandwidth Product: 2.5MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

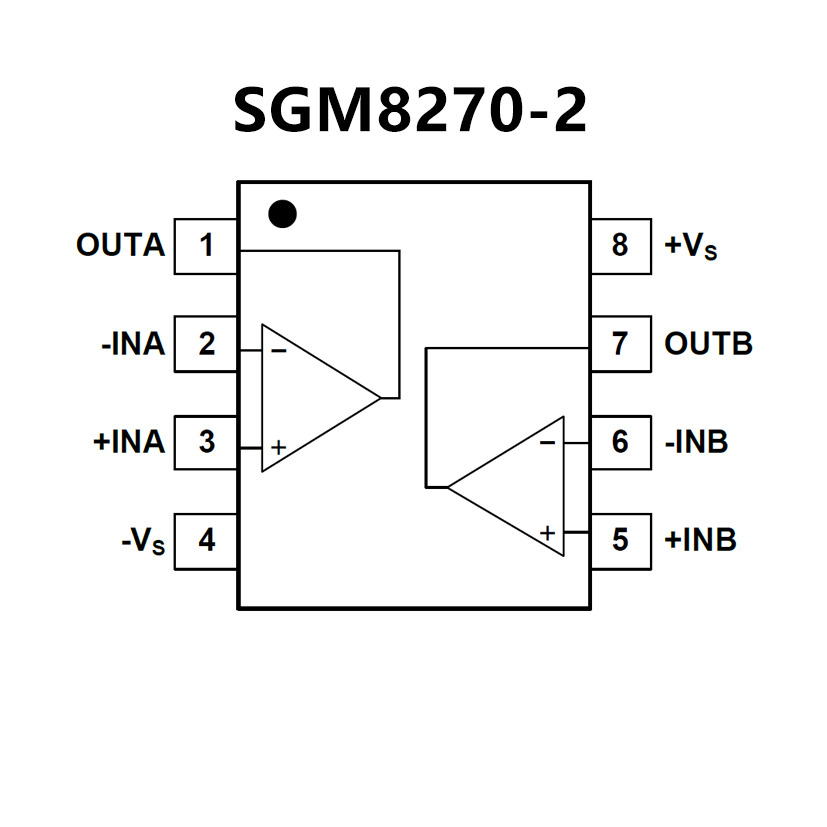

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Stable operation with 10 000 pF capacitive load
? Low input offset voltage
士3 mV (MAX.)
土7 μ V/°C (TYP.) temperature drift
? Very low input bias and offset currents
? Low noise : en = 19 nV/西(TYP.)
? Output short circuit protection
? High input impedance... J-FET Input Stage
? Internal frequency compensation
? High slew rate: 15 V/μs (TYP.)

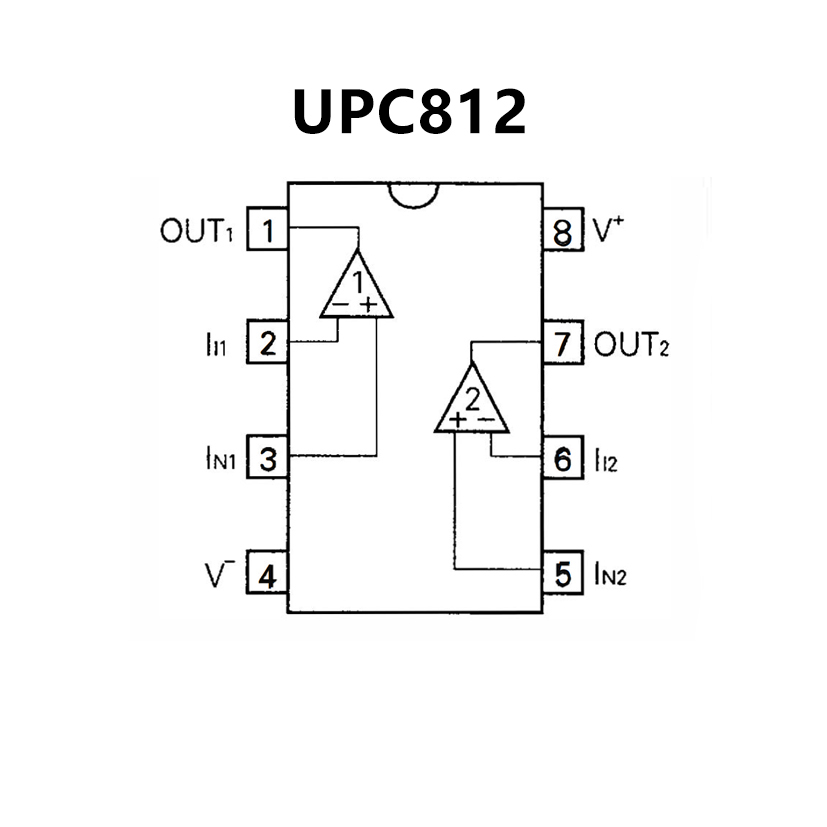

PIN CONFIGUTION
