3.3V to 24V,1MHz,Low Noise,Rail-to-Rail I/O Operational Amplifier,SGM8210-4 Replace TLV254.
SGM8210-4
SGM8210-4.pdf
SGM8210-4.pdfFEATURES
? Low 0.1Hz to 10Hz Noise: 3μVP-P
? Wide Supply Voltage Range: 3.3V to 24V
? Low Power Consumption: 50μA/Amplifier (TYP)
? Low Offset Voltage: 1mV (MAX)
? Input Voltage Noise Density: 25nV/ √Hz at 1kHz
? Slew Rate: 0.3V/μs
? Rail-to-Rail Input and Output
? High DC Precision:
CMRR: 115dB
PSRR: 120dB
AOL: 120dB
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8210-4 Available in a Green SOIC-14 Package

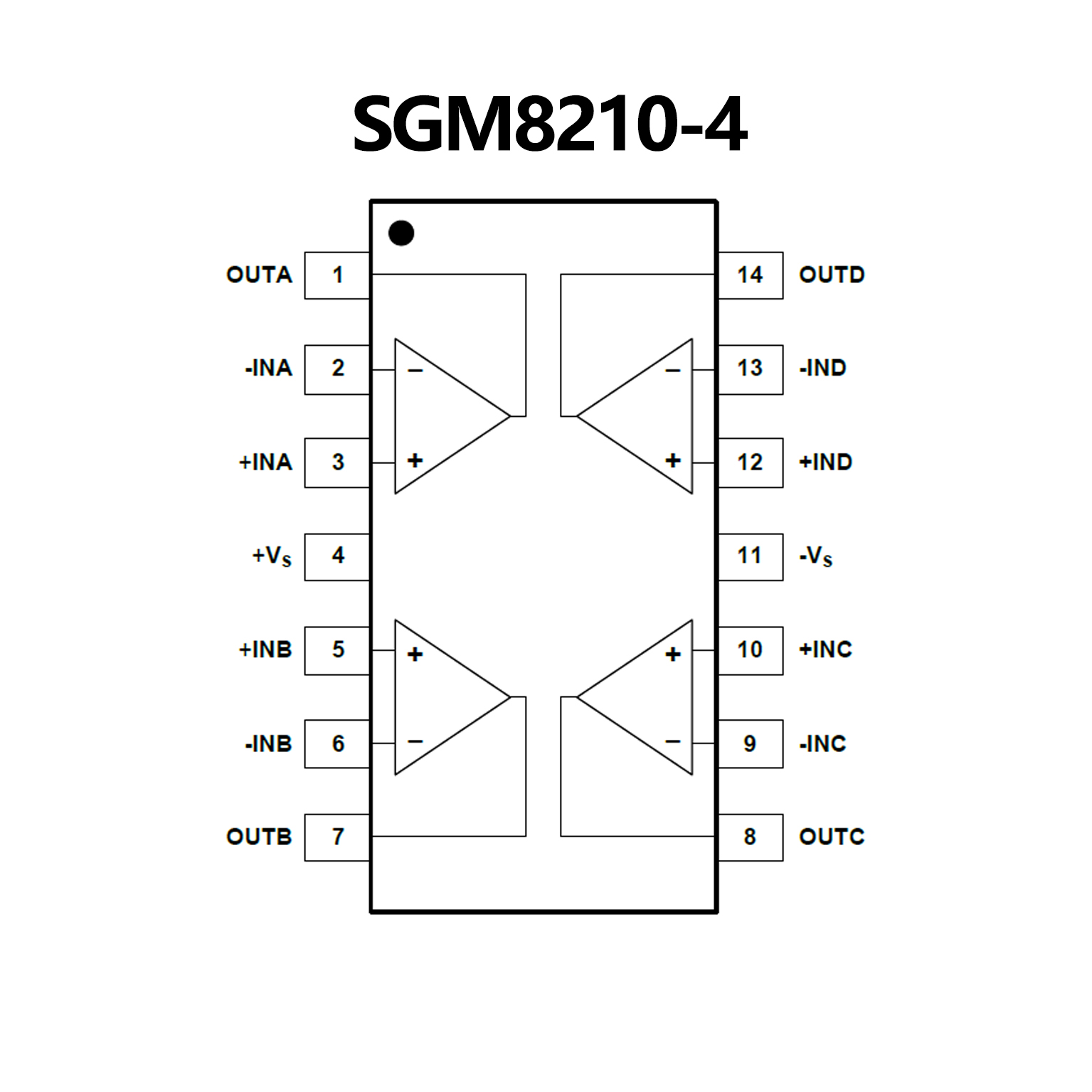

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? A-Suffix Versions Offer 5-mV VIO
? B-Suffix Versions Offer 2-mV VIO
? Wide Range of Supply Voltages
1.4 V to 16 V
? True Single-Supply Operation
? Common-Mode Input Voltage Includes the
Negative Rail
? Low Noise . . . 25 nV/√Hz Typ at f = 1 kHz
(High-Bias Version)

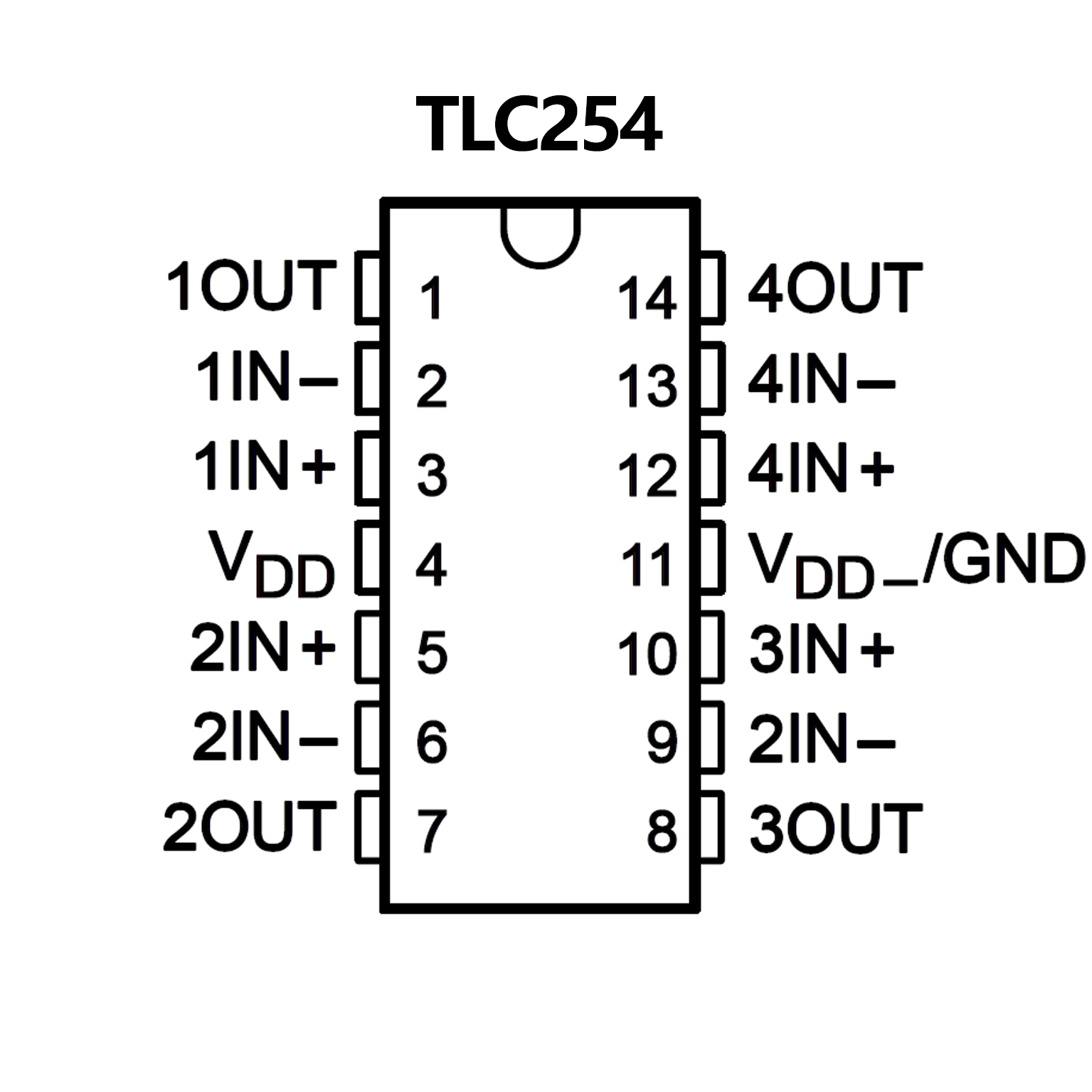

PIN CONFIGUTION
