SGM810B.pdf? Precision Voltage Monitor: 1.8V, 2.5V, 3V, 3.3V,
5V Options
? Superior Upgrade for MAX803/MAX809/MAX810
and ADM803/ADM809/ADM810
? Fully Specified over Temperature
? Low Power Consumption: 13μA (TYP)
? Reset Assertion Down to 1V VCC
? 150ms Power-On Reset (MIN)

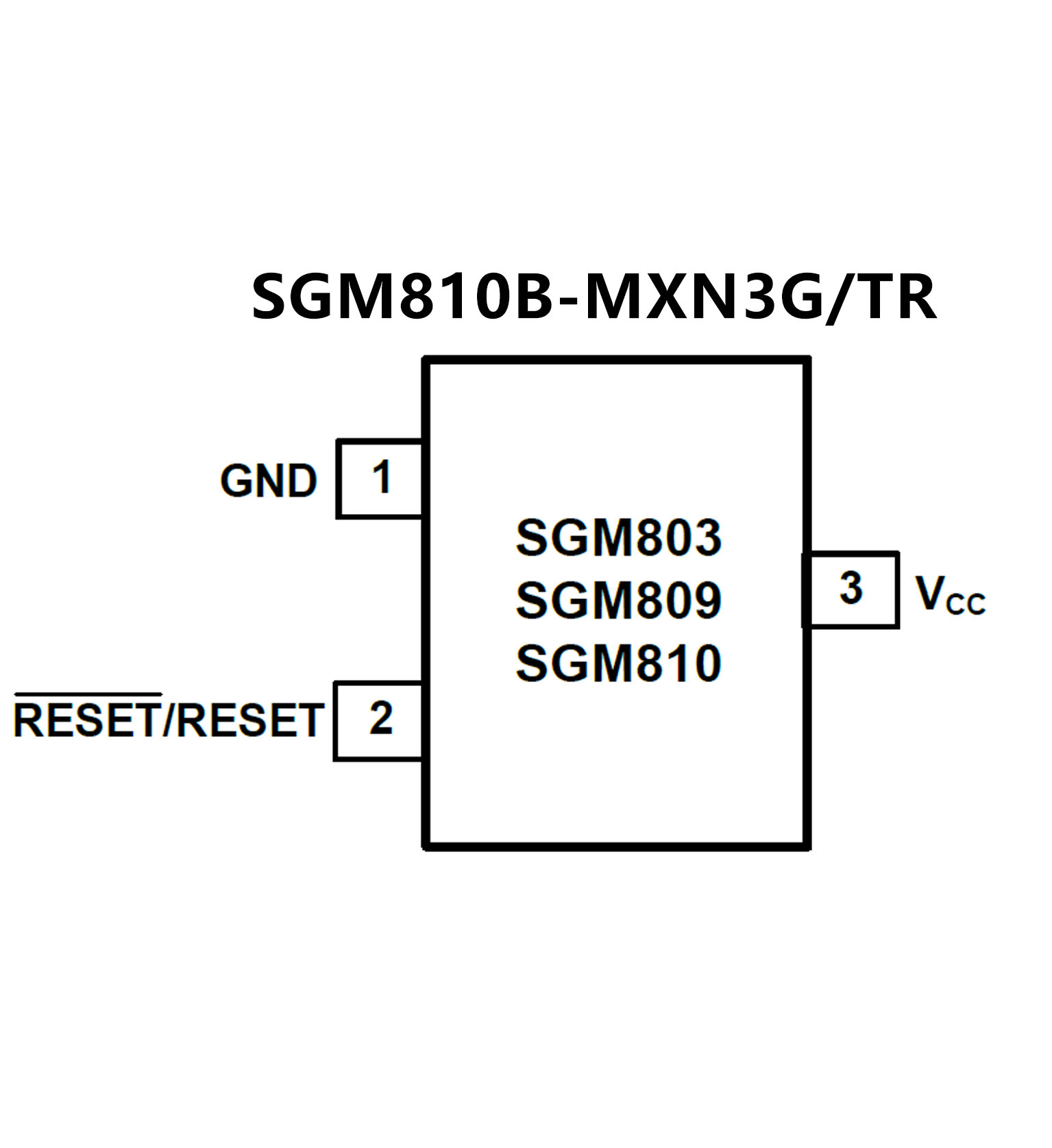

Open-Drain RESET Output (SGM803)
Push-Pull RESET Output (SGM809)
Push-Pull RESET Output (SGM810)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging
SGM803 Available in SOT-23-3 and SOT-23
SGM809 Available in SOT-23-3 and SOT-23
SGM810 Available in SOT-23-3 and SOT-23
? Specified over temperature
? Low power consumption: 17 μA
? Precision voltage monitor: 2.5 V,
3 V, 3.3 V, 5 V options
? Reset assertion down to 1 V VCC
? 140 ms minimum power-on reset

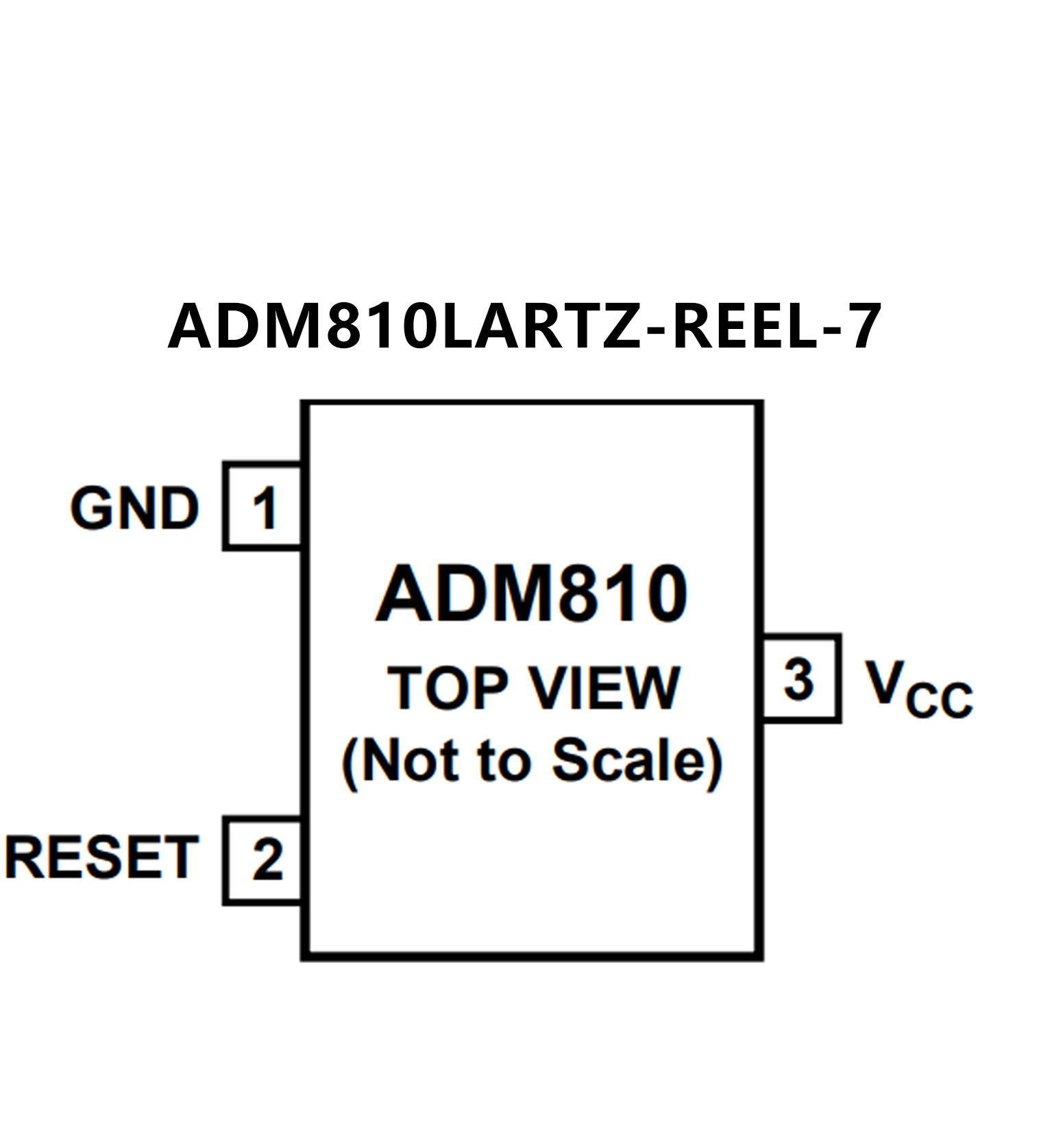

Open-drain RESET output (ADM803)
Push-pull RESET output (ADM809)
Push-pull RESET output (ADM810)
? SC70 and SOT-23 packages
