Micro Power Operational Amplifier, Replace OPA2349
SGM8049-2
SGM8049-2.pdf
SGM8049-2.pdfFEATURES
? Low Noise: 3.5μVP-P (0.1Hz to 10Hz)
? Wide Supply Voltage Range: 1.8V to 5.5V
? Low Quiescent Current: 2.5μA/Amplifier (TYP)
? Low Offset Voltage: 0.85mV (MAX)
? DC Precision:
CMRR: 100dB
PSRR: 2.5μV/V
AOL: 118dB
? -40℃ to +125℃ Operating Temperature Range

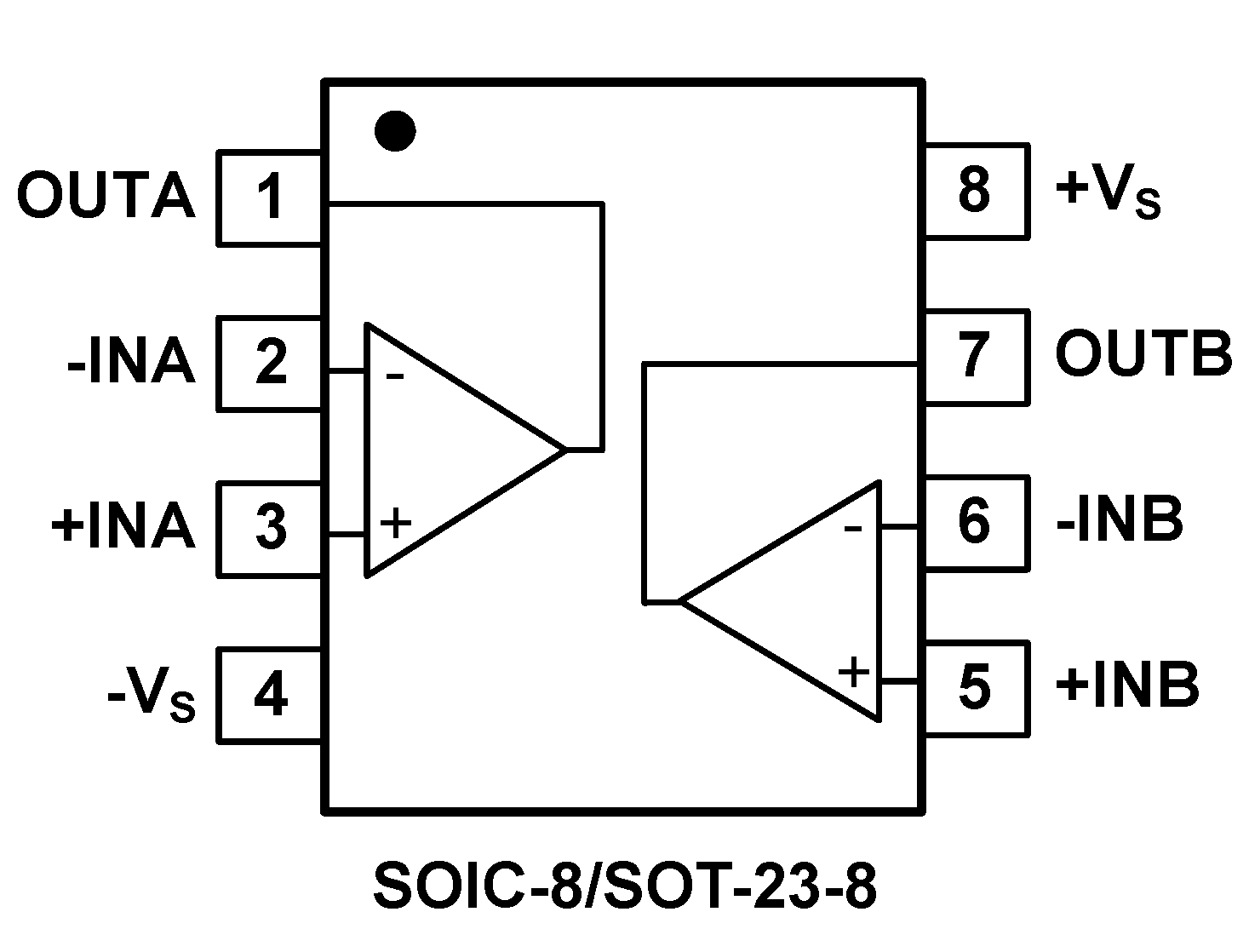

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? LOW SUPPLY CURRENT: 1μA
? GAIN-BANDWIDTH: 70kHz
? UNITY-GAIN STABLE
? LOW INPUT BIAS CURRENT: 10pA (max)
? WIDE SUPPLY RANGE: 1.8V to 5.5V
? INPUT RANGE: 200mV Beyond Rails
? OUTPUT SWINGS TO 350mV OF RAILS
? OUTPUT DRIVE CURRENT: 8mA
? OPEN-LOOP GAIN: 90dB
PIN CONFIGUTION
