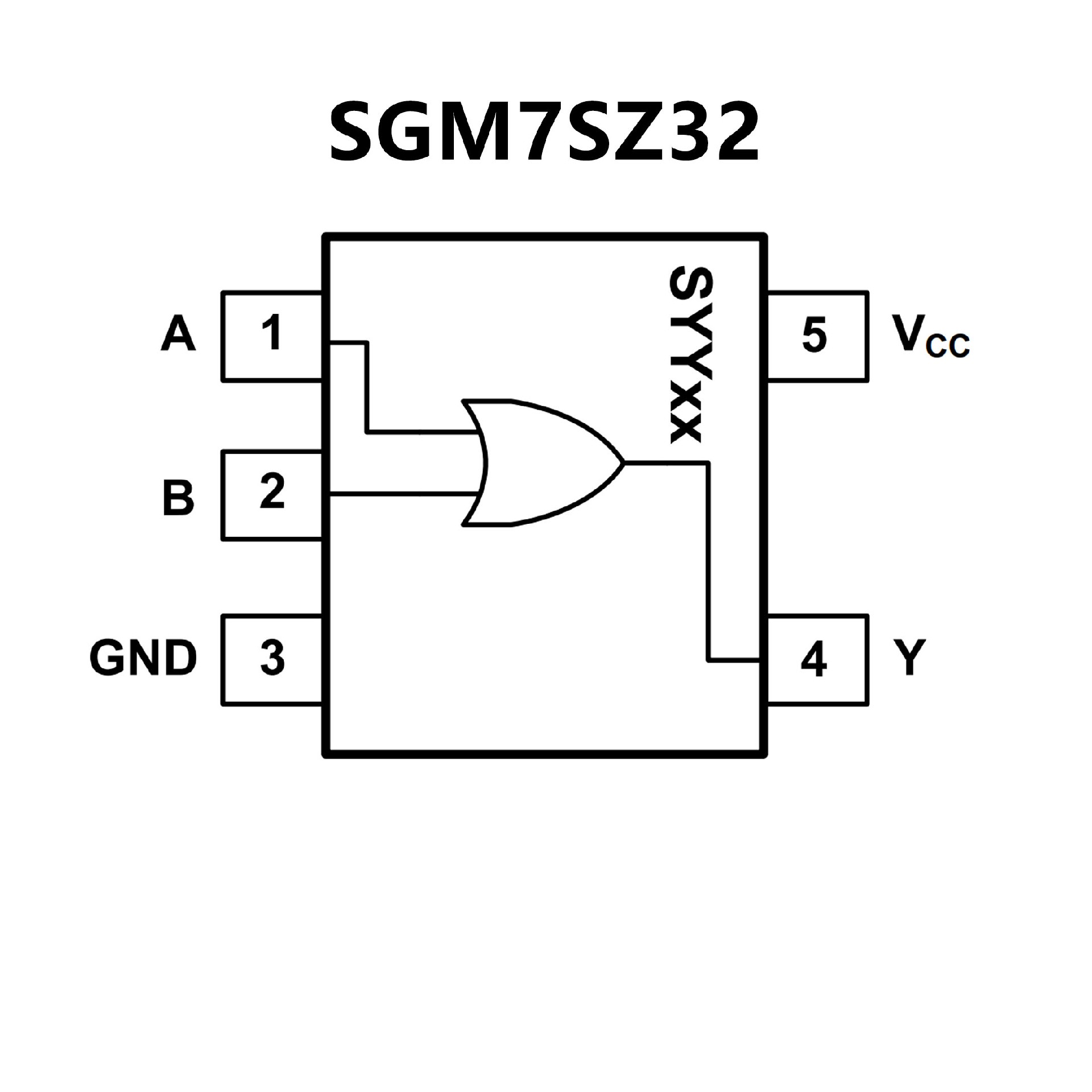

SGM7SZ32.pdf? Ultra-High Speed: tPD = 3.8ns (TYP) into 50pFat VCC = 3.3V
? High Output Drive: ±24mA at VCC = 3V
? Broad VCC Operating Range: 1.65V to 5.5V
? Matches Performance of LCX Operated at VCC = 3.3V
? Power Down High-Impedance Inputs/Output
? Over-Voltage Tolerance Inputs Facilitate 5V to 3V Translation
? Available in Green SOT-23-5 and SC70-5 Packages

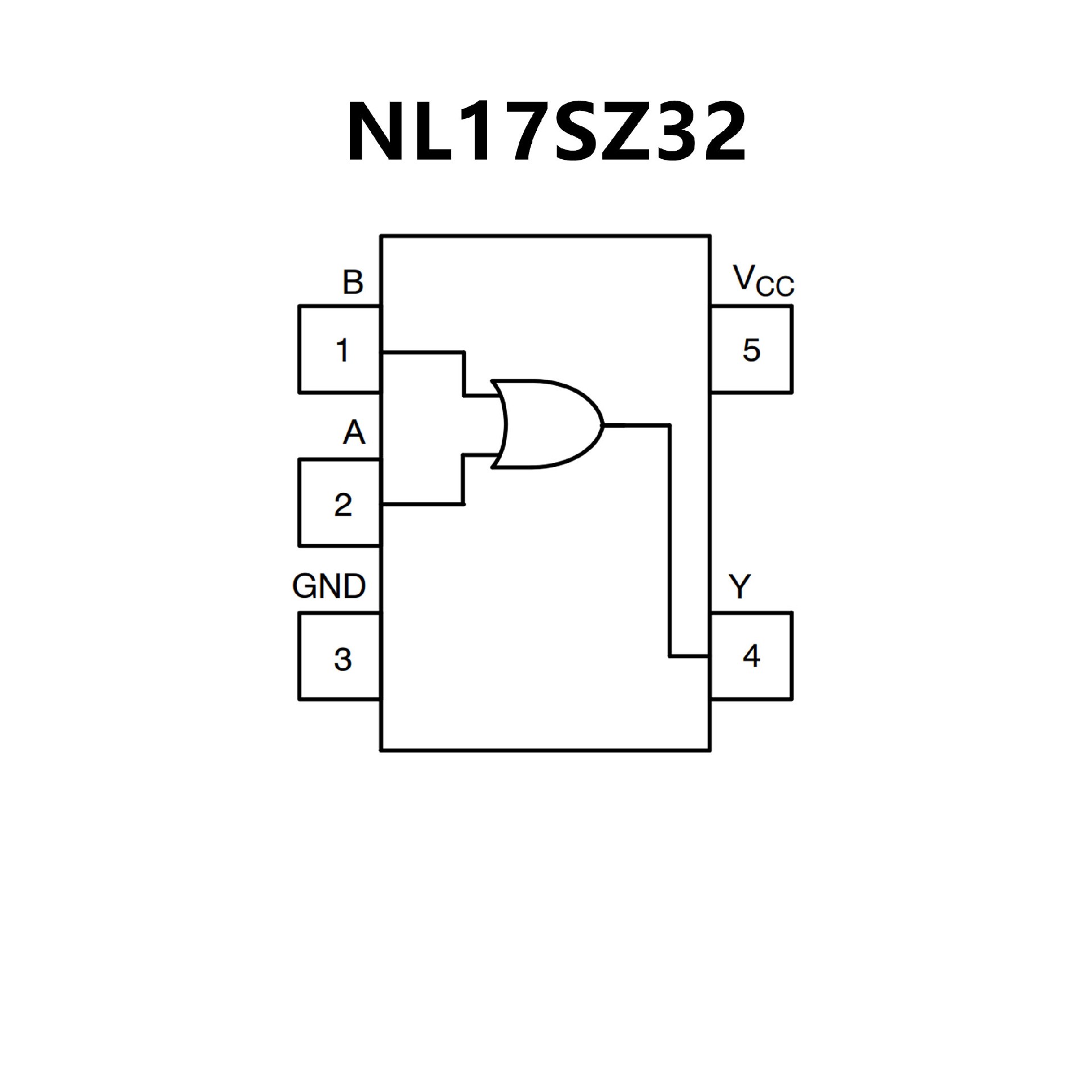

? Designed for 1.65 V to 5.5 V VCC Operation
? 2.4 ns tPD at VCC = 5 V (typ)
? Inputs/Outputs Overvoltage Tolerant up to 5.5 V
? IOFF Supports Partial Power Down Protection
? Source/Sink 24 mA at 3.0 V
? Available in SC?88A, SC?74A, SOT?553,
SOT?953 and UDFN6 Packages
? Chip Complexity < 100 FETs
? NLV Prefix for Automotive and Other Applications
Requiring Unique Site and Control Change
Requirements; AEC?Q100 Qualified and PPAP Capable
? These Devices are Pb?Free, Halogen Free/BFR
Free and are RoHS Compliant
