Octal Buffers/Line Driverswith 3-State Outputs,7SZ244XTS20GTR-Replace-74ACT541MTCX.
SGM7SZ244
SGM7SZ244.pdf
SGM7SZ244.pdfFEATURES
? Wide Operating Voltage Range: 1.8V to 5.0V
? High-Current Outputs Drive Up to 15 LSTTL
Loads
? 3-State Outputs Drive Bus Lines or Buffer
Memory Address Registers
? Low Power Consumption, ICC: 25μA (MAX)
? Typical tPD = 8.9ns at 5.0V
? ±20mA Output Drive at 5.0V
? Low Input Current: ±8μA (MAX)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TSSOP-20 Package

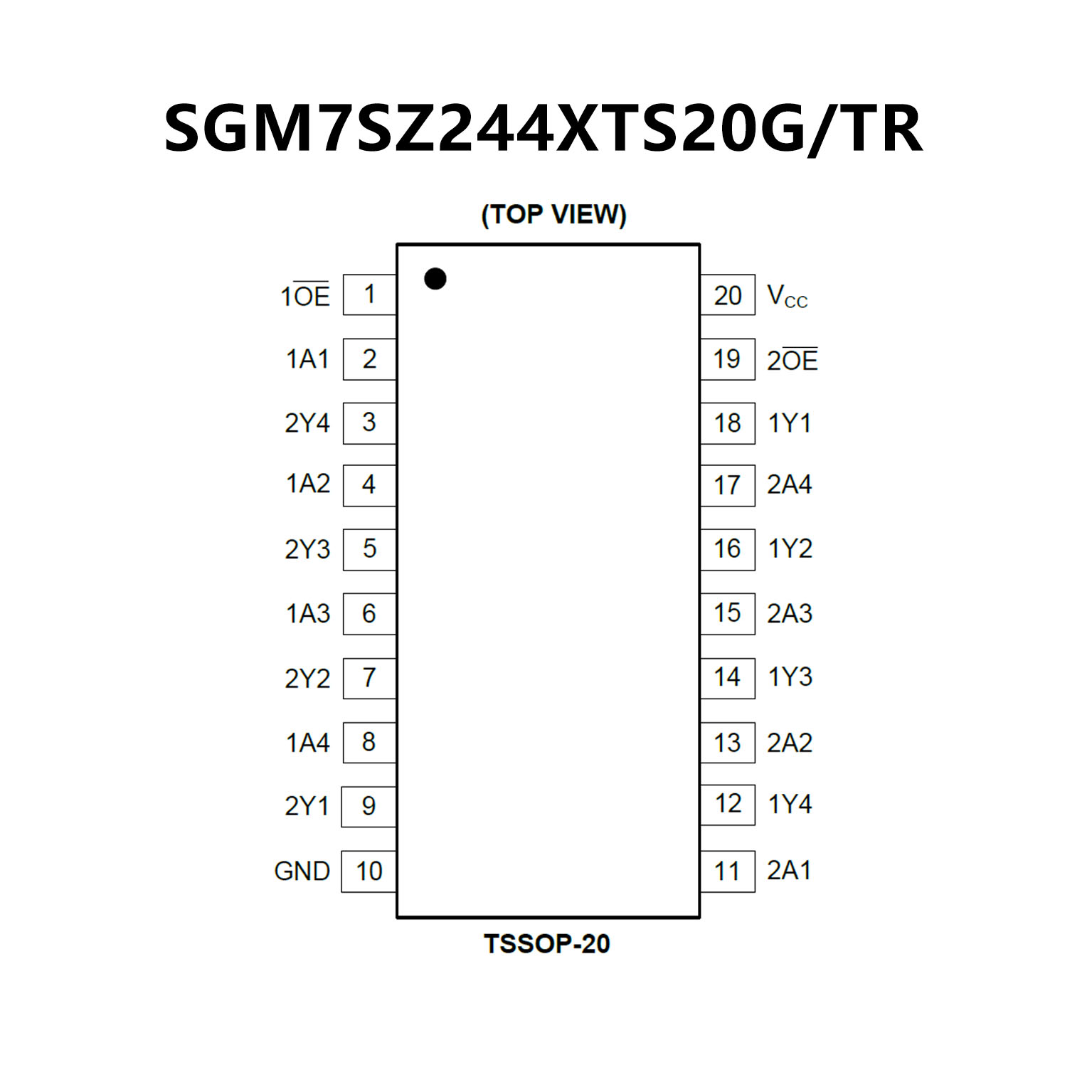

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? ICC and IOZ reduced by 50%
? 3-STATE outputs
? Inputs and outputs opposite side of package, allowing
easier interface to microprocessors
? Output source/sink 24mA
? 74AC541 is a non-inverting option of the 74AC540
? 74ACT541 has TTL-compatible inputs

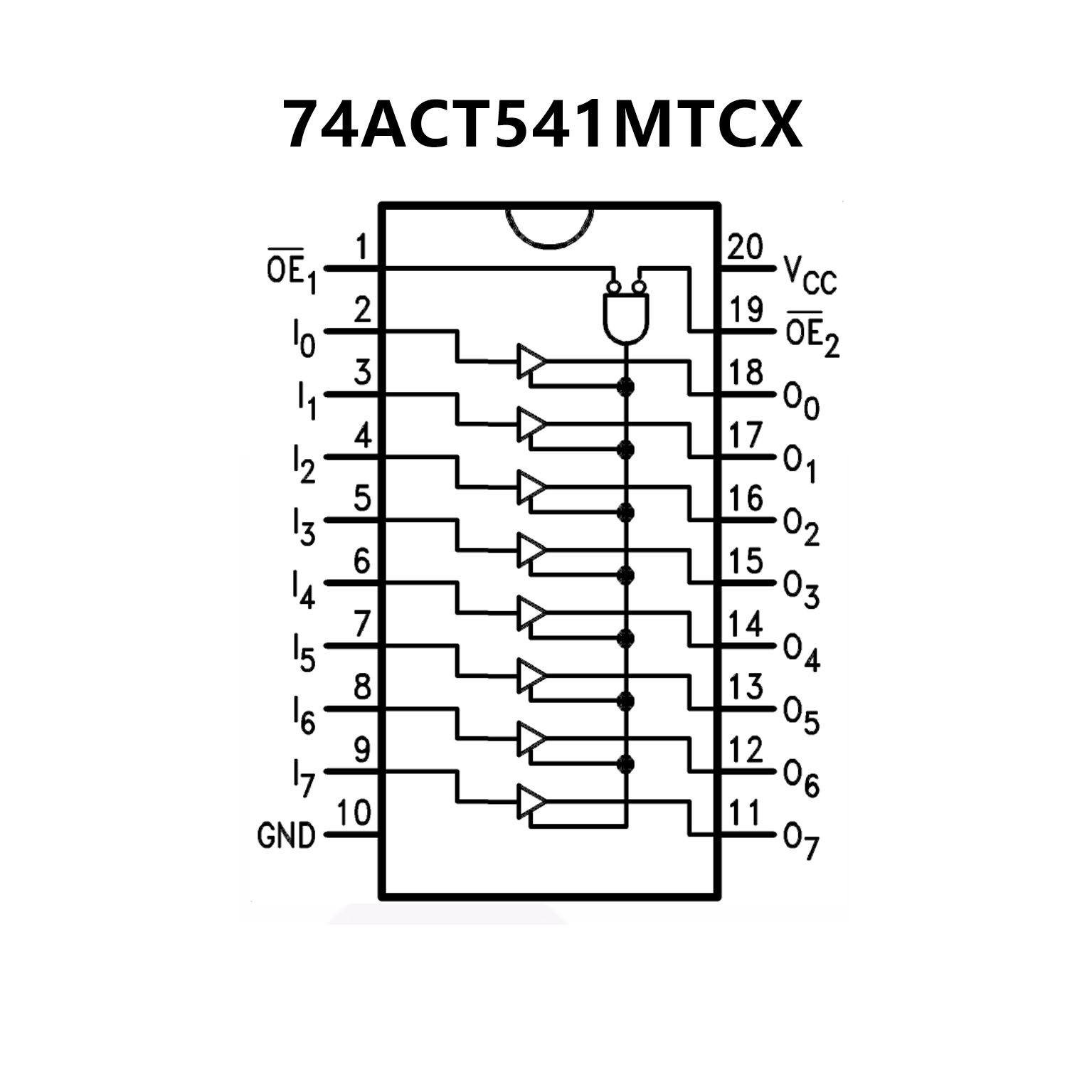

PIN CONFIGUTION
