Small Logic Inverter with Schmitt Trigger Input, SGM7SZ14 Replace NC7S14.
SGM7SZ14
SGM7SZ14.pdf
SGM7SZ14.pdfFEATURES
? Ultra-High Speed: tPD = 4.2ns (TYP) into 50pF
at VCC = 3.3V
? High Output Drive: ±24mA at VCC = 3V
? Broad VCC Operating Range: 1.65V to 5.5V
? Matches Performance of LCX Operated at
VCC = 3.3V
? Power Down High-Impedance Input/Output
? Over-Voltage Tolerant Input Facilitates
5V to 3V Translation
? Available in Green SOT-23-5 and SC70-5 Packages

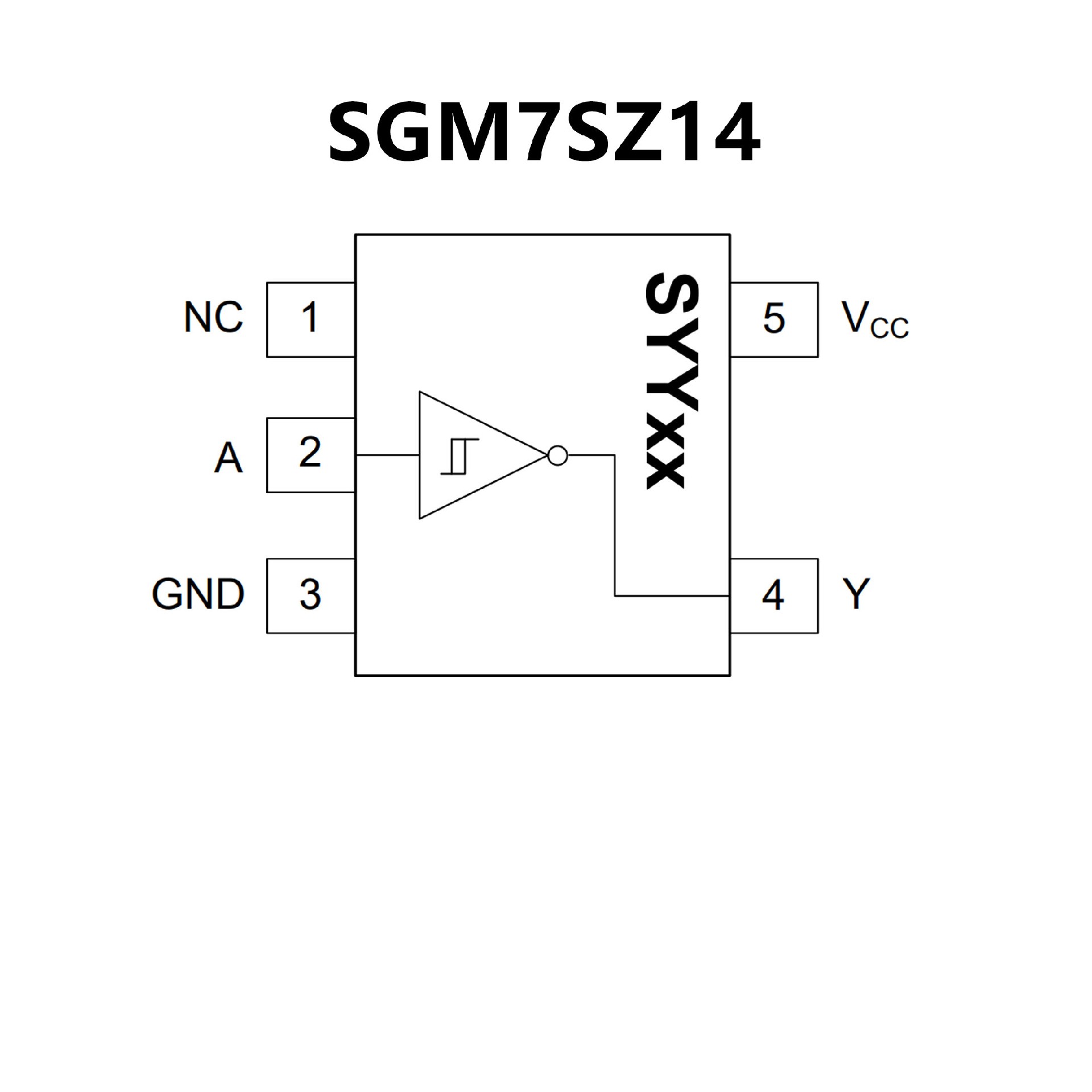

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Space Saving SC?74A and SC?88A 5?Lead Package
? Ultra Small MicroPak? Leadless Package
? Schmitt Input Hysteresis: >1 V Typ
? High Speed: tPD = 4.5 ns Typ
? Low Quiescent Power: ICC < 1μA
? Balanced Output Drive: 2 mA IOL, ?2 mA IOH
? Broad VCC Operating Range: 2 V – 6 V
? Balanced Propagation Delays
? Specified for 3 V Operation
? These Devices are Pb?Free, Halogen
Free/BFR Free and are RoHSCompliant

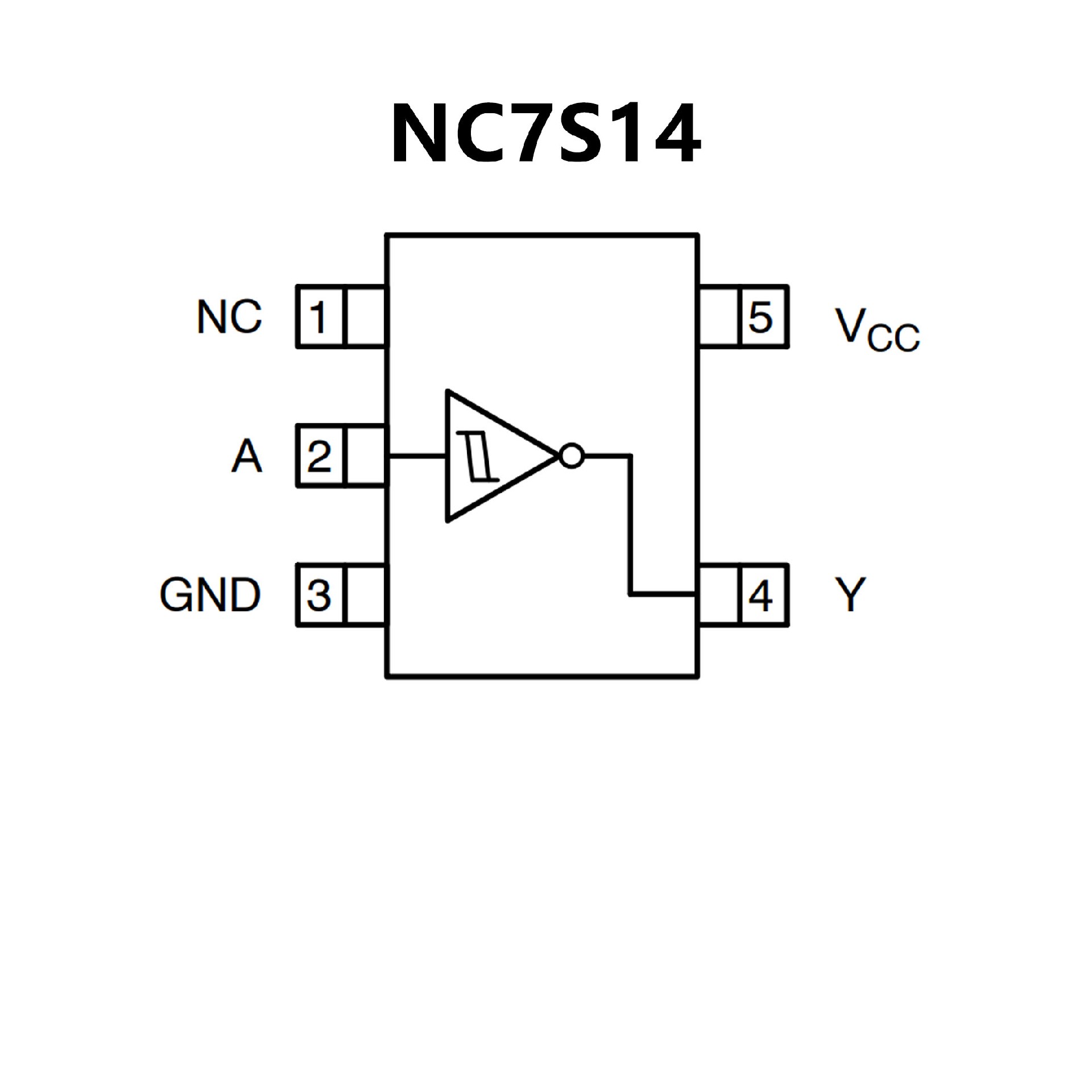

PIN CONFIGUTION
