Small Logic Buffer with Three-State Output,SGM7SZ126 Replace SN74AHCT1G126.
SGM7SZ126
SGM7SZ126.pdf
SGM7SZ126.pdfFEATURES
? Ultra-High Speed: tPD = 3.4ns (TYP) into 50pF
at VCC = 3.3V
? High Output Drive: ±24mA at VCC = 3V
? Broad VCC Operating Range: 1.65V to 5.5V
? Matches Performance of LCX Operated at
VCC = 3.3V
? Power Down High-Impedance Inputs/Output
? Over-Voltage Tolerant Inputs Facilitate 5V to 3V
Translation
? Available in Green SOT-23-5 and SC70-5 Packages

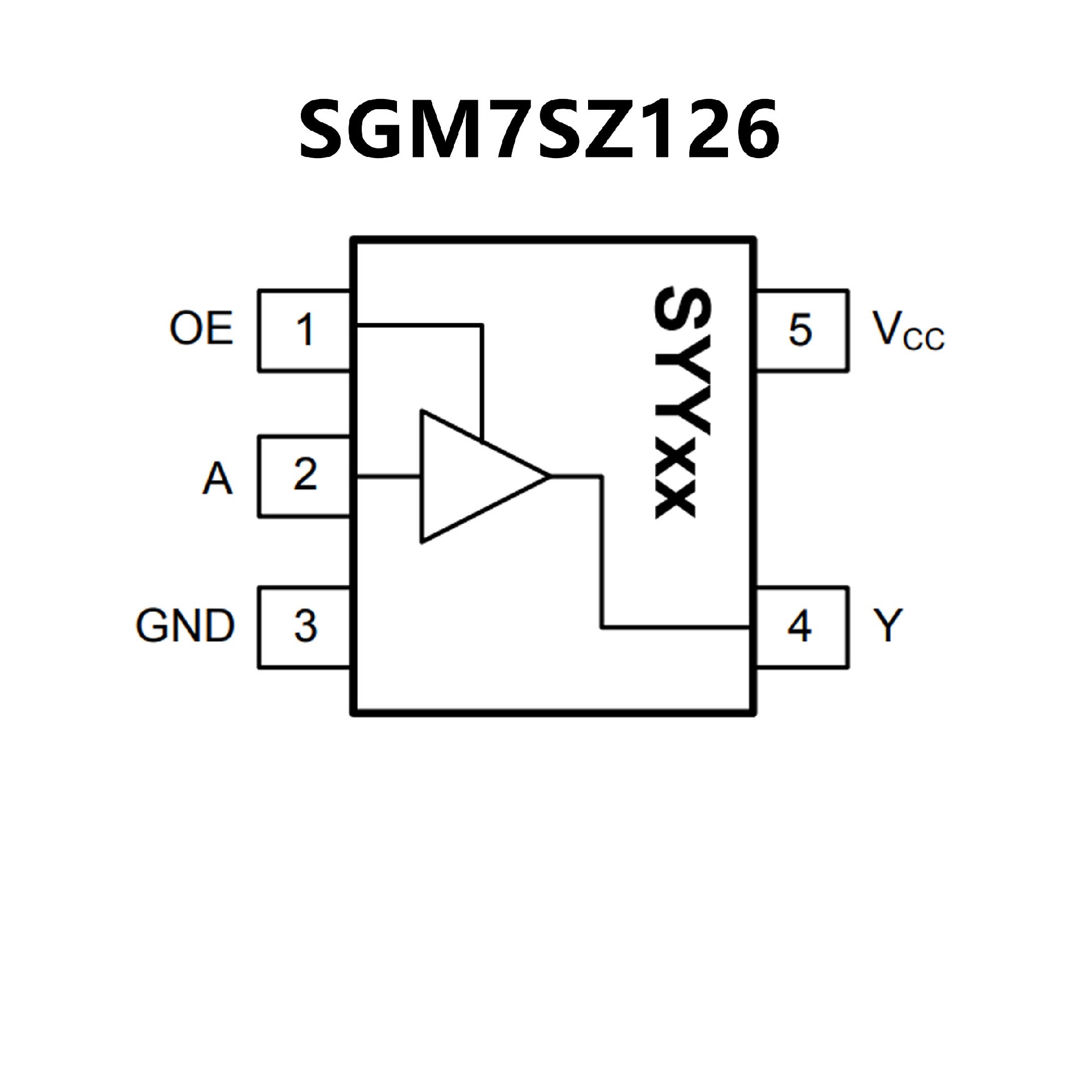

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Operating Range of 4.5 V to 5.5 V
? Max tpd of 6 ns at 5 V
? Low Power Consumption, 10-μA Max ICC
? ±8-mA Output Drive at 5 V
? Inputs are TTL-Voltage Compatible
? Latch-Up Performance Exceeds 250 mA Per JESD 17
? ESD Protection Exceeds JESD 22
2000-V Human-Body Model
200-V Machine Model
1000-V Charged-Device Model

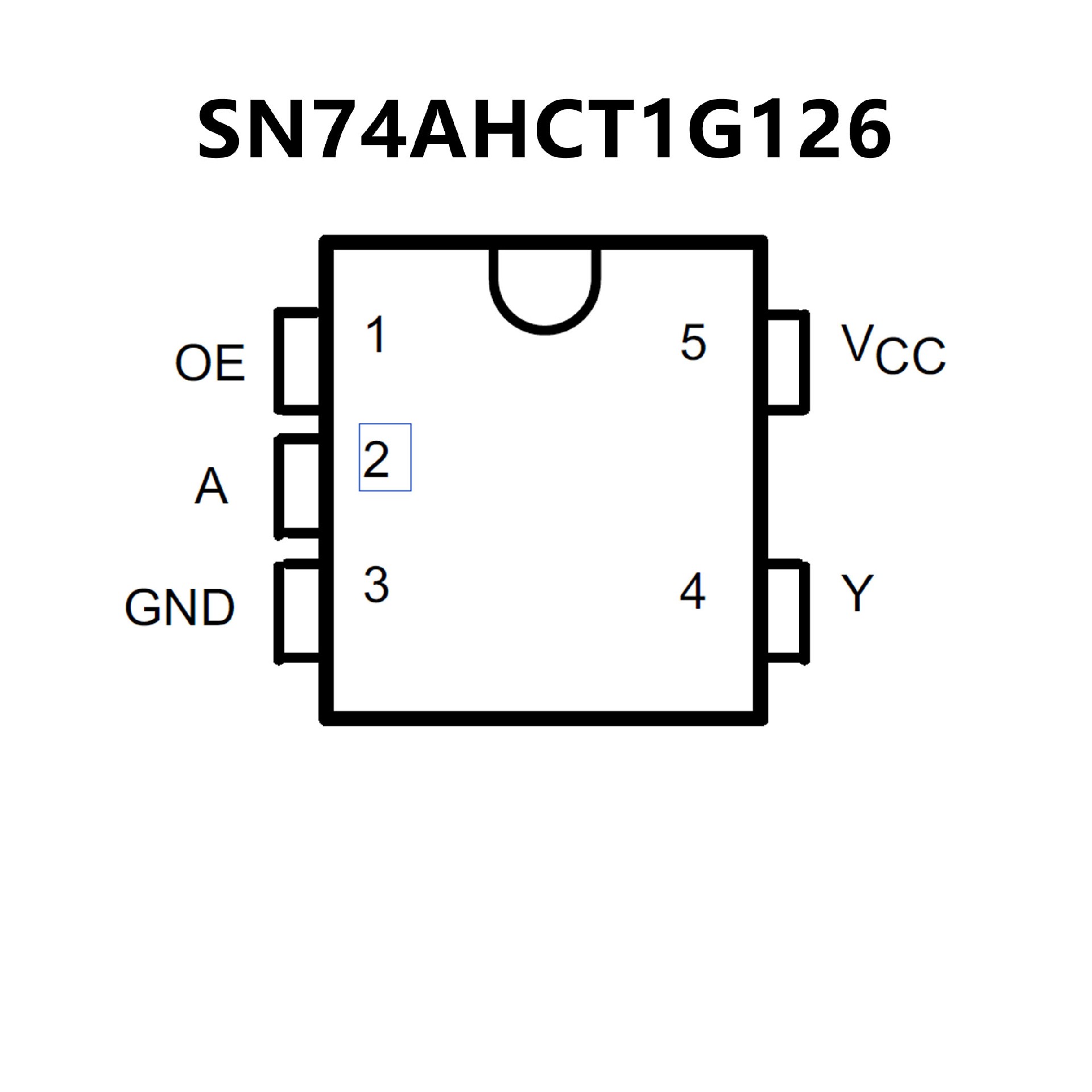

PIN CONFIGUTION
