Small Logic Buffer with Three-State Output, SGM7SZ125YC5G Replace 74AHC1G125SE.
SGM7SZ125YC5G
SGM7SZ125YC5G.pdf
SGM7SZ125YC5G.pdfFEATURES
? Ultra-High Speed: tPD = 3.5ns (TYP) into 50pF
at VCC = 3.3V
? High Output Drive: ±24mA at VCC = 3V
? Broad VCC Operating Range: 1.65V to 5.5V
? Matches Performance of LCX Operated at
VCC = 3.3V
? Power Down High-Impedance Inputs/Output
? Over-Voltage Tolerant Inputs Facilitate 5V to 3V
Translation
? Available in Green SOT-23-5 and SC70-5 Packages

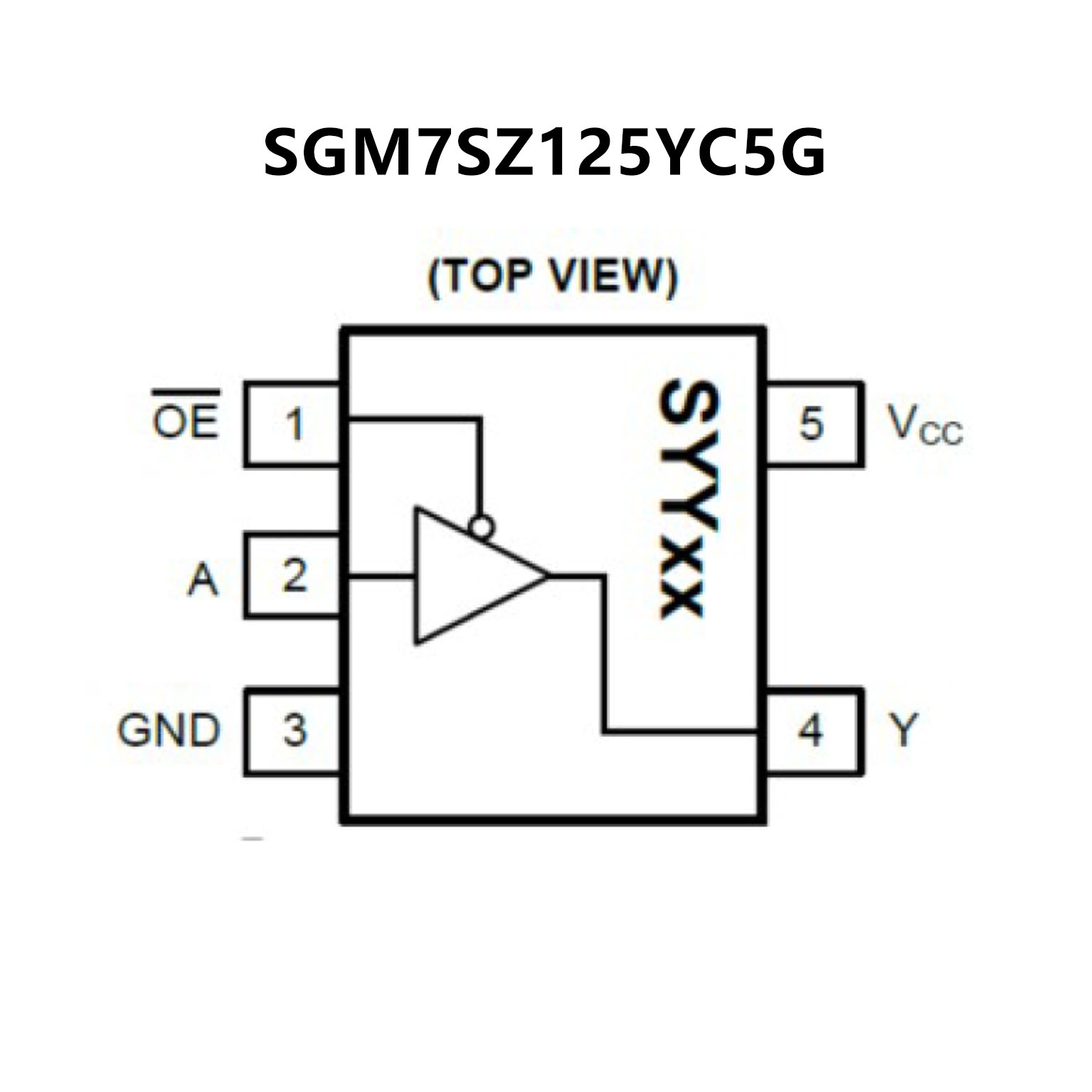

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
?Supply Voltage Range from 2.0V to 5.5V
? ± 8 mA Output Drive at 5.0V
?CMOS low power consumption
?Schmitt Trigger Action at All Inputs Make the Circuit
Tolerant for Slower Input Rise and Fall Time.
?ESD Protection per JESD 22
Exceeds 200-V Machine Model (A115-A)
Exceeds 2000-V Human Body Model (A114-A)
Exceeds 1000-V Charged Device Model (C101C)
?Latch-Up Exceeds 100mA per JESD 78, Class II
?SOT25 and SOT353: Assembled with “Green”
Molding Compound (no Br, Sb)
?Lead Free Finish / RoHS Compliant (Note 1)

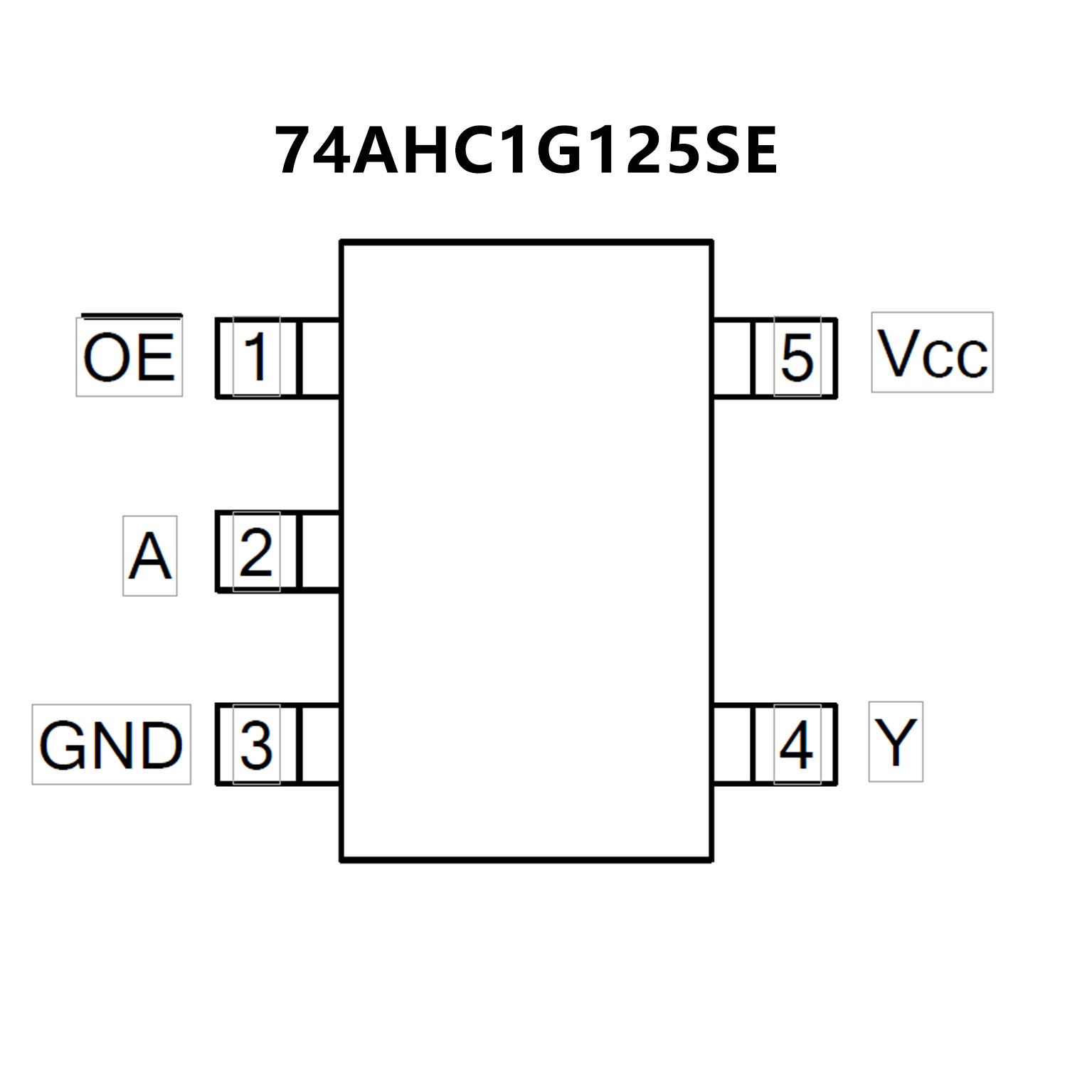

PIN CONFIGUTION
