Small Logic Two-Input AND Gate,SGM7SZ08YC5G Replace SN74AHCT1G08.
SGM7SZ08YC5G
SGM7SZ08YC5G.pdf
SGM7SZ08YC5G.pdfFEATURES
? Ultra-High Speed: tPD = 3.6ns (TYP) into 50pF
at VCC = 3.3V
? High Output Drive: ±24mA at VCC = 3V
? Broad VCC Operating Range: 1.65V to 5.5V
? Matches Performance of LCX Operated at VCC = 3.3V
? Power Down High-Impedance Inputs/Output
? Over-Voltage Tolerant Inputs Facilitate 5V to 3V
Translation
? Available in Green SOT-23-5, SC70-5, XTDFN-1×1-6L
and UTDFN-1.45×1-6L Packages

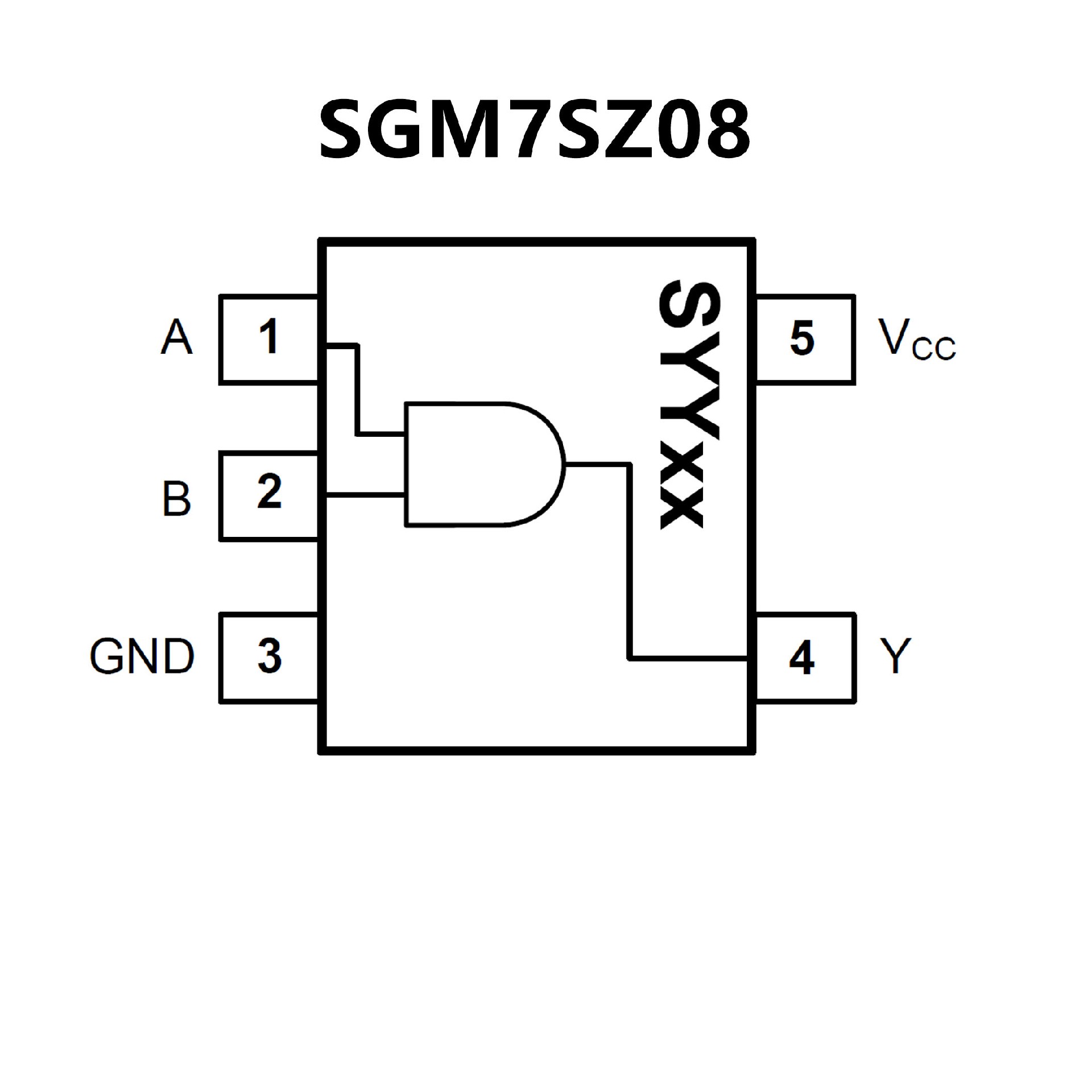

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Operating Range: 4.5 V to 5.5 V
? Maximum tpd of 7.1 ns at 5 V
? Low Power Consumption: Maximum ICC of 10-μA
? ±8-mA Output Drive at 5 V
? Inputs Are TTL-Voltage Compatible
? Latch-Up Performance Exceeds 250 mA
Per JESD 17

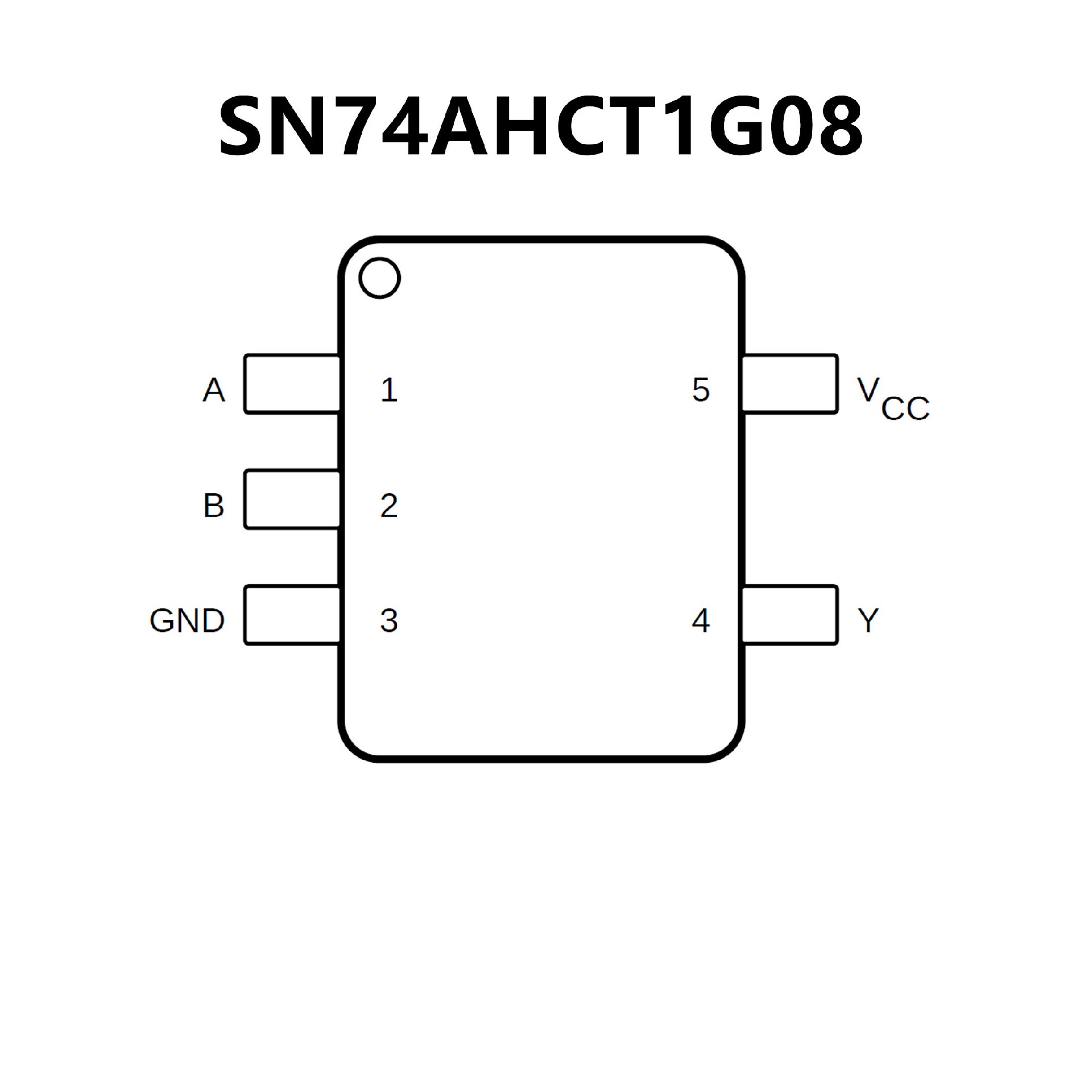

PIN CONFIGUTION
