SGM721.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 4mV (MAX)
? High Gain-Bandwidth Product: 11MHz
? High Slew Rate: 8.5V/μs
? Settling Time to 0.1% with 2V Step: 0.21μs
? Overload Recovery Time: 0.6μs
? Low Noise: 8.5nV/√Hz at 10kHz
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Power:SGM721/3: 1.2mA (TYP)SGM722/4:
1.1mA/Amplifier (TYP)SGM723 Less than 1μA when Disabled
? -40℃ to +125℃ Operating Temperature Range

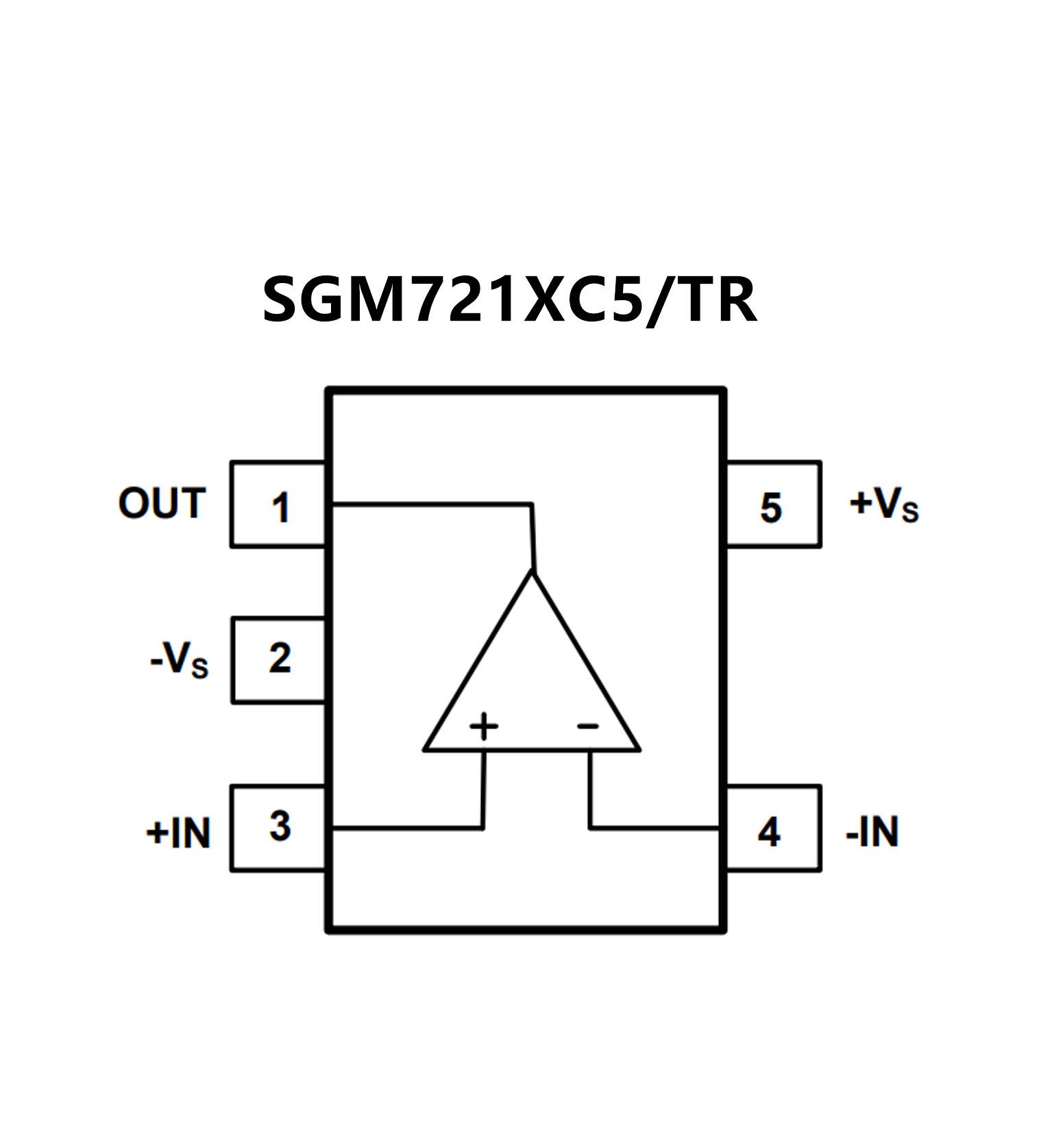

? Small Packaging:SGM721 Available in Green SC70-5,
SOT-23-5 andSOIC-8 PackagesSGM722 Available in
Green MSOP-8, SOIC-8 andTSSOP-8 PackagesSGM723
Available in Green SOT-23-6 and SOIC-8PackagesSGM724
Available in Green TSSOP-14 andSOIC-14 Packages
?失調(diào)電壓：400 μV(典型值)
?低失調(diào)電壓漂移：6 μV/°C
(最大值，AD8692/AD8694)
?極低輸入偏置電流：1 pA(最大值)
?低噪聲：8 nV/√Hz
?低失真： 0.0006%
?寬帶寬：10 MHz
?單位增益穩(wěn)定
?單電源供電：2.7 V至6 V
?通過汽車應(yīng)用認證
