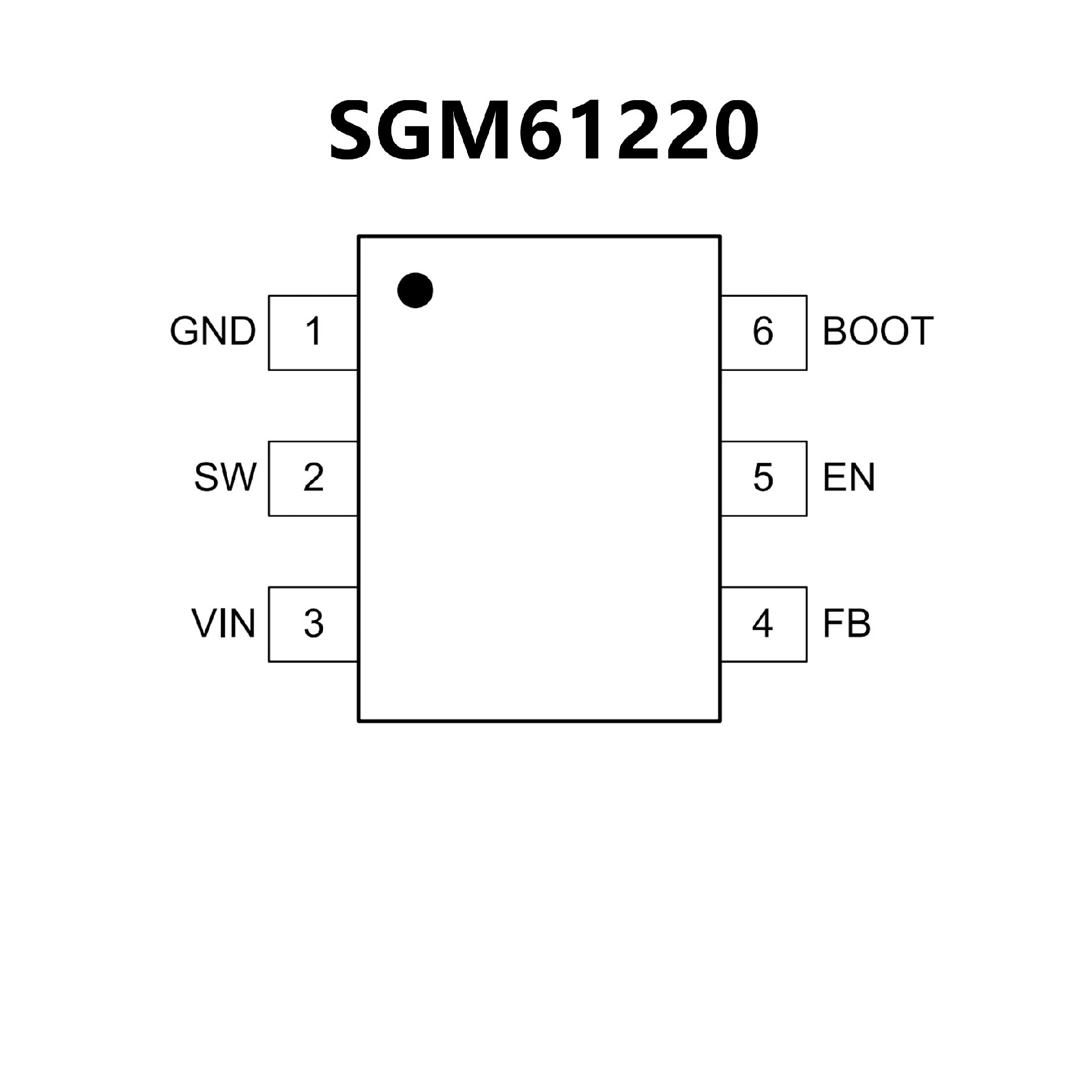

SGM61220.pdf? Wide 4.5V to 28V Input Voltage Range
? 2A Continuous Output Current
? Integrated 66mΩ/36mΩ Power MOSFETs
? Low Quiescent Current: 25μA (TYP)
? Shutdown Current: 2μA (TYP)
? 5ms Internal Soft-Start Time
? Fixed 410kHz Switching Frequency
? Pulse Skip Mode and PWM Mode
? Peak Current Mode Control
? Internal Loop Compensation
? Over-Current Protection for Both MOSFETs
? Output Over-Voltage Protection
? Adjustable Input Under-Voltage Lockout
? Thermal Shutdown with Auto Recovery
? Available in a Green TSOT-23-6 Package

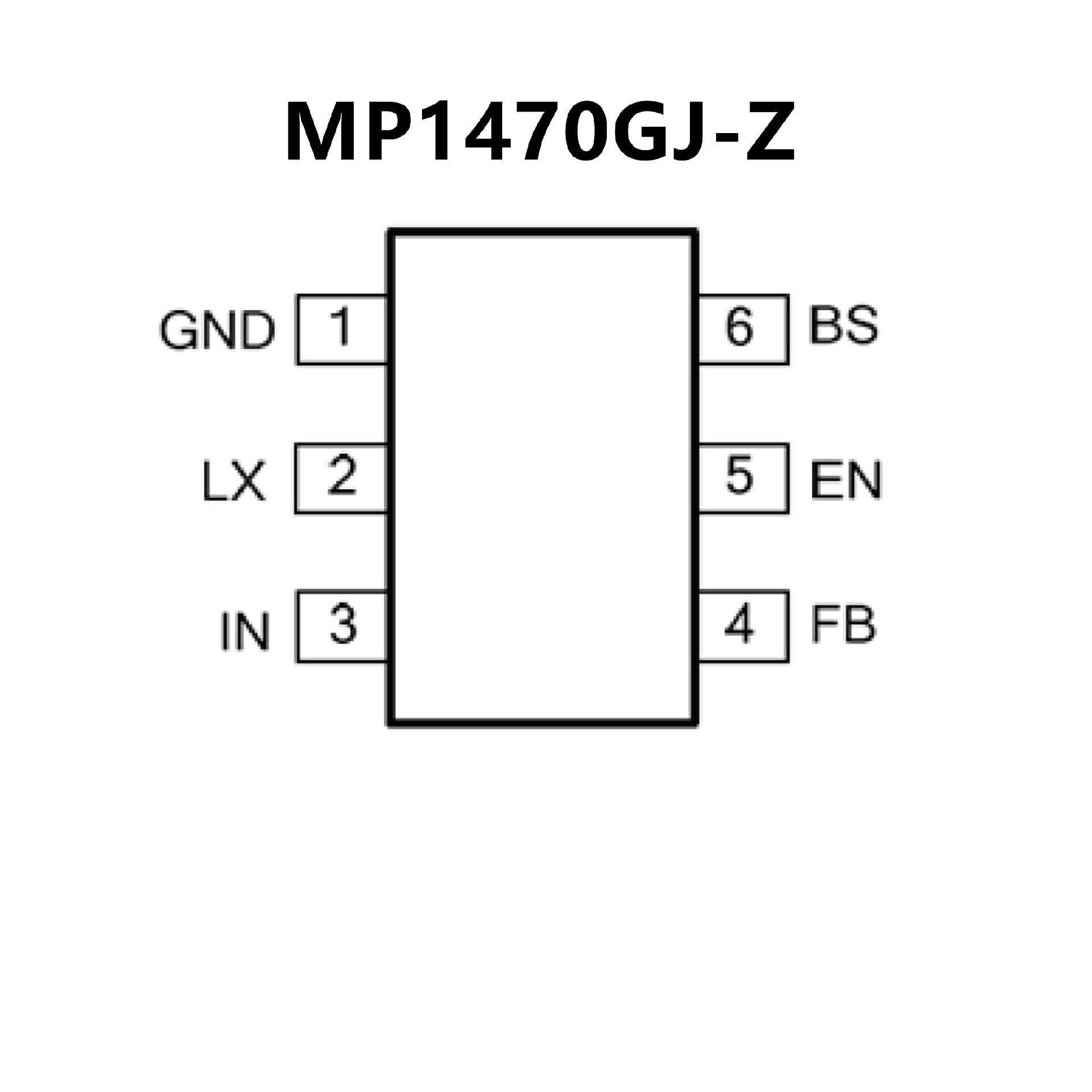

? High Efficiency: Up to 95%max
? 600KHz Frequency Operation
? 2.0A Output Current
? No Schottky Diode Required
? 3.5V to 18V Input Voltage Range
? 0.8V Reference
? Slope Compensated Current Mode Control for
Excellent Line and Load Transient Response
? Integrated internal compensation
? Stable with Low ESR Ceramic Output Capacitors
? Over Current Protection with Hiccup-Mode
? Input over voltage protection(OVP)
? Thermal Shutdown
? Inrush Current Limit and Soft Start
? Available in SOT23-6 Package
? -40°C to +85°C Temperature Range
