SGM61030.pdf? 2.5V to 5.5V Input Voltage Range
? Adjustable Output Voltage from 0.6V to VIN
? Adaptive Off-Time Architecture
? Up to 95% Efficiency
? Low RDSON MOSFET Switches (34mΩ/20mΩ)
? 42μA (TYP) Operating Quiescent Current
? Ultra-Low Quiescent Current in Shutdown Mode
? Power-Save Mode at Light Loads (SGM61030A)
? Continuous Current Mode (SGM61030B)
? 100% Duty Cycle Capability for Low Dropout
? Startup with Pre-biased Output
? Output Discharge Function
? Power Good Output
? Hiccup Mode Short-Circuit Protection
? Thermal Shutdown Protection

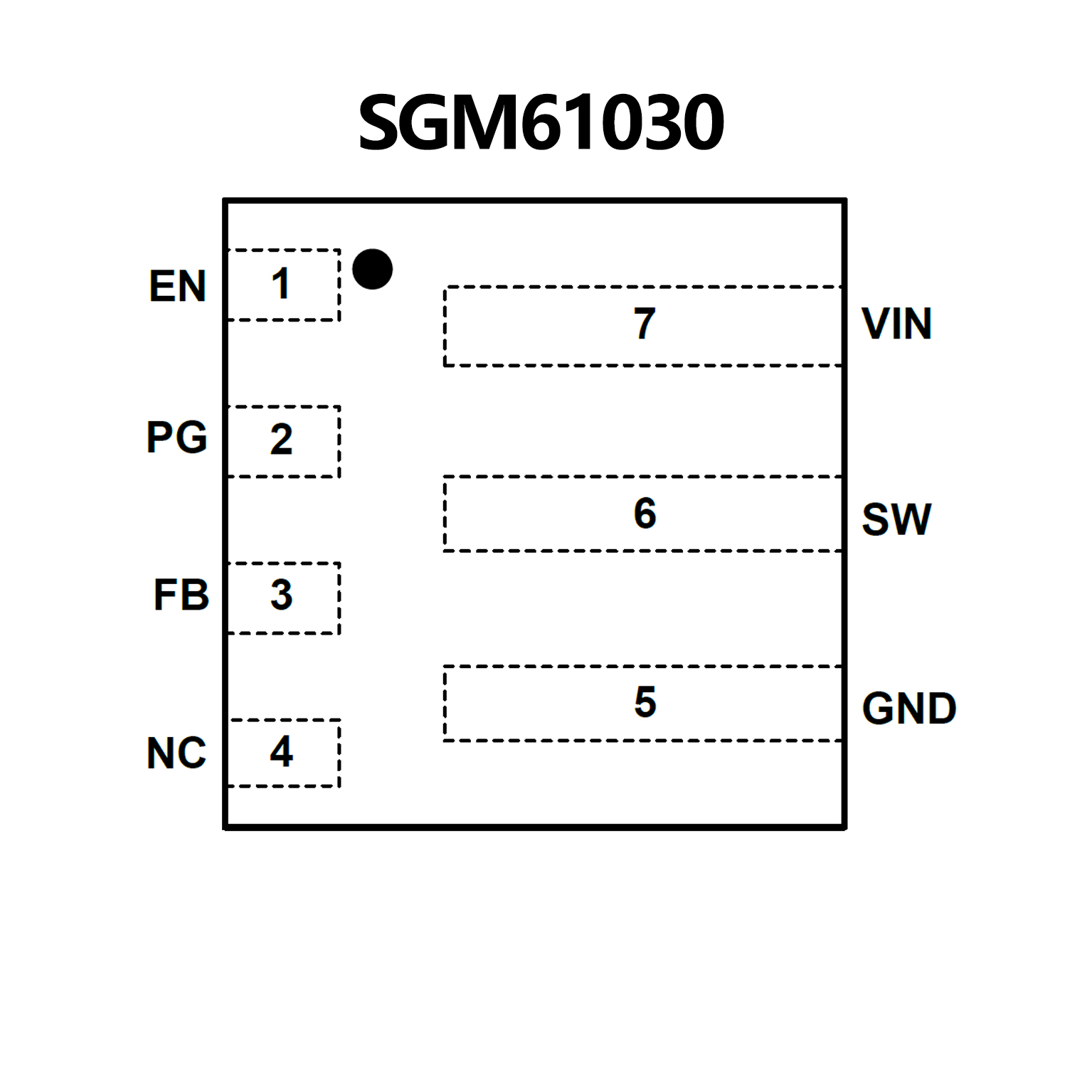

? Available in a Green TDFN-2×2-7L Package
? Up to 95% efficiency
? Low RDS(ON) power switches 56 mΩ / 32 mΩ
? 2.5-V to 5.5-V input voltage range
? Adjustable output voltage from 0.6-V to VIN
? Power save mode for light load efficiency
? 100% duty cycle for lowest dropout
? 35-μA operating quiescent current
? 1.5-MHz typical switching frequency
? Short circuit protection (HICCUP)
? Output discharge
? Power good output
? Thermal shutdown protection
? Available in 2-mm × 2-mm QFN or 1.6-mm x 1.6-
mm SOT563 package
? Create a custom design using the TLV62585 with
the WEBENCH? Power Designer
