Dual Bilateral Analog Switch, SGM48759 Replace SN74LVC2G66.
SGM48759.pdf優(yōu)勢替代
FEATURES
? Available in the Texas Instruments
NanoFree? Package
? 1.65-V to 5.5-V VCC Operation
? Inputs Accept Voltages to 5.5 V
? Max tpd of 0.8 ns at 3.3 V
? High On-Off Output Voltage Ratio
? High Degree of Linearity
? High Speed, Typically 0.5 ns
(VCC = 3 V, CL = 50 pF)
? Rail-to-Rail Input/Output
? Low ON-State Resistance,
Typically ?6 ? (VCC = 4.5 V)
? Latch-Up Performance Exceeds
100 mA Per JESD 78, Class II

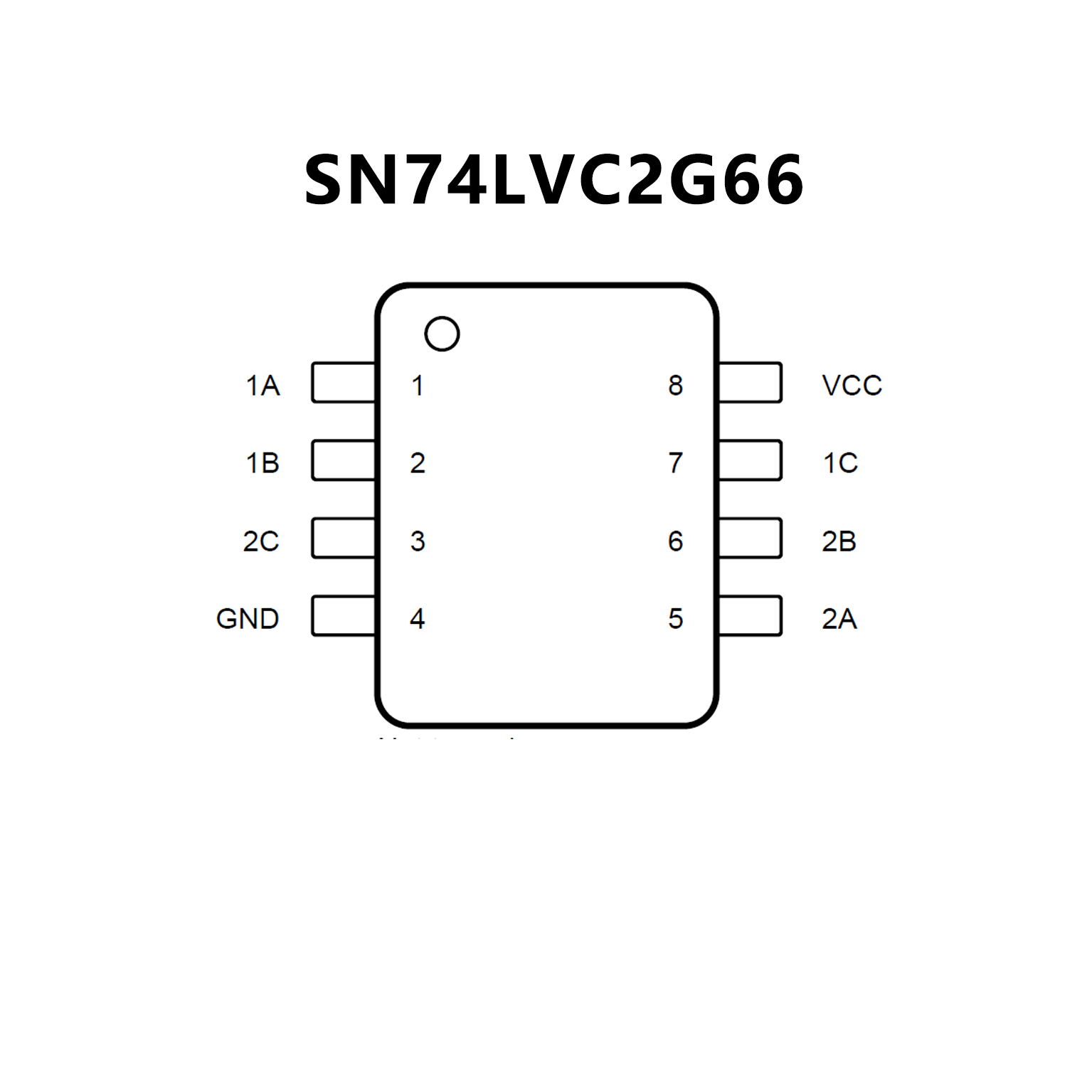

PIN CONFIGUTION
