Single-Channel Low-side IGBT Gate Driver IC with Over-Current Protection, Replace 1ED44175
SGM48534.pdf優(yōu)勢替代
FEATURES
? Over-current detection with negative voltage input
? -0.246 V over-current threshold with accurate ±5% tolerance
? Single pin for fault output and enable
? Programmable fault clear time
? Under voltage lockout for IGBTs
? CMOS Schmitt-triggered inputs
? 3.3 V, 5 V and 15 V input logic compatible
? 25 V VCC voltage supply support (max)
? Output in phase with input
? -10 Vdc negative Input capability of OCP pin
? 3 kV ESD HBM
? RoHS compliant

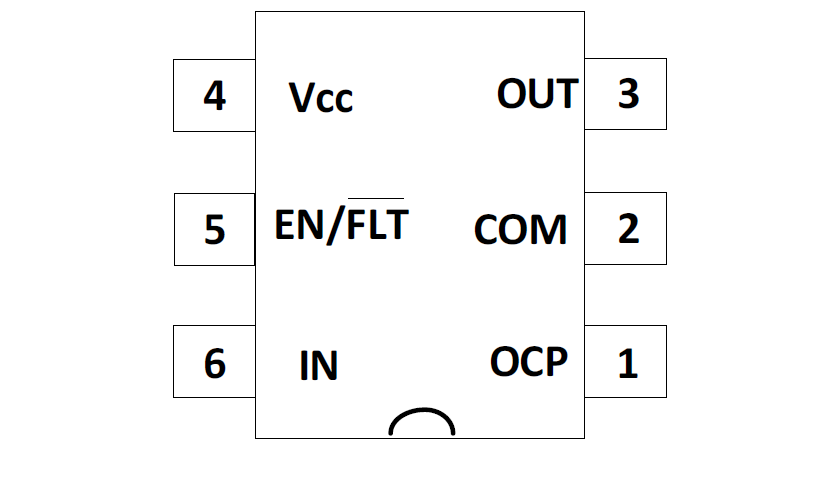

PIN CONFIGUTION
