SGM48000.pdf? Improved Response Times
? Matched Rise and Fall Times
? Reduced Clock Skew between Dual Channels
? Low Output Impedance
? Output is at LOW under UVLO Protection
? High Noise Immunity
? Improved Clocking Rate
? Low Supply Current
? Wide Operating Voltage Range
? -40℃ to +125℃ Operating Temperature Range

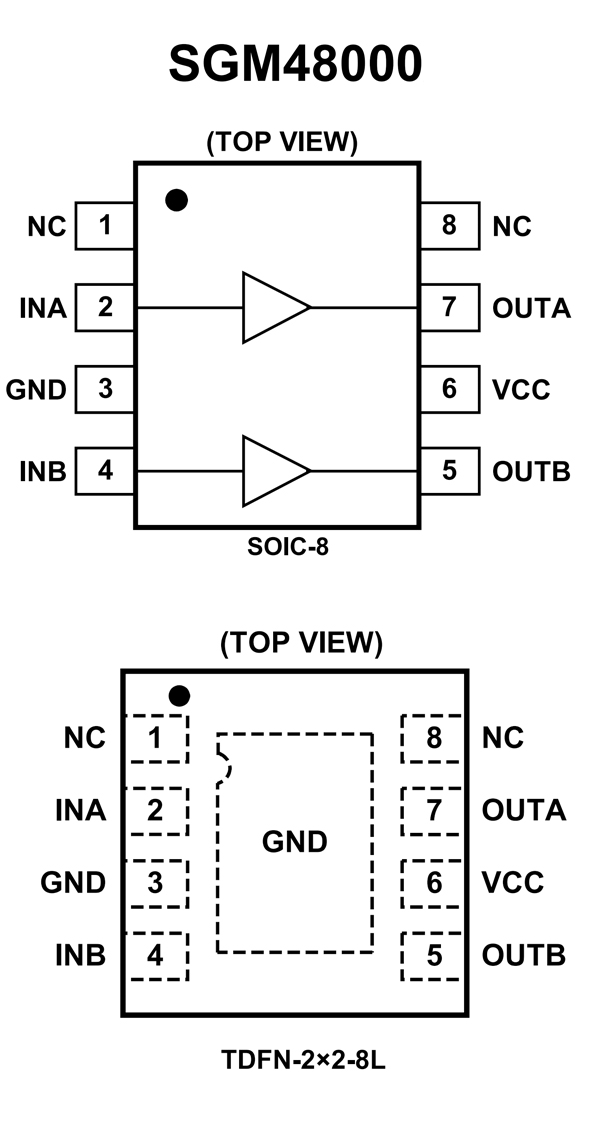

? Available in Green SOIC-8 and TDFN-2×2-8L
Packages
? High Peak Output Current:1.5A
? Wide Operating Range: 4.5V to 18V
? High Capacitive Load
Drive Capability: 1000 pF in 25 nsec
? Short Delay Time: <40nsec Typ
? Consistent Delay Times With Changes in
Supply Voltage
? Low Supply Current
With Logic “1” Input : 4mA
With Logic “0” Input : 400μA
? Low Output Impedance: 7?
? Latch-Up Protected: Will Withstand >0.5A
Reverse Current: Down to – 5V
? Input Will Withstand Negative Inputs
? ESD Protected: 4kV

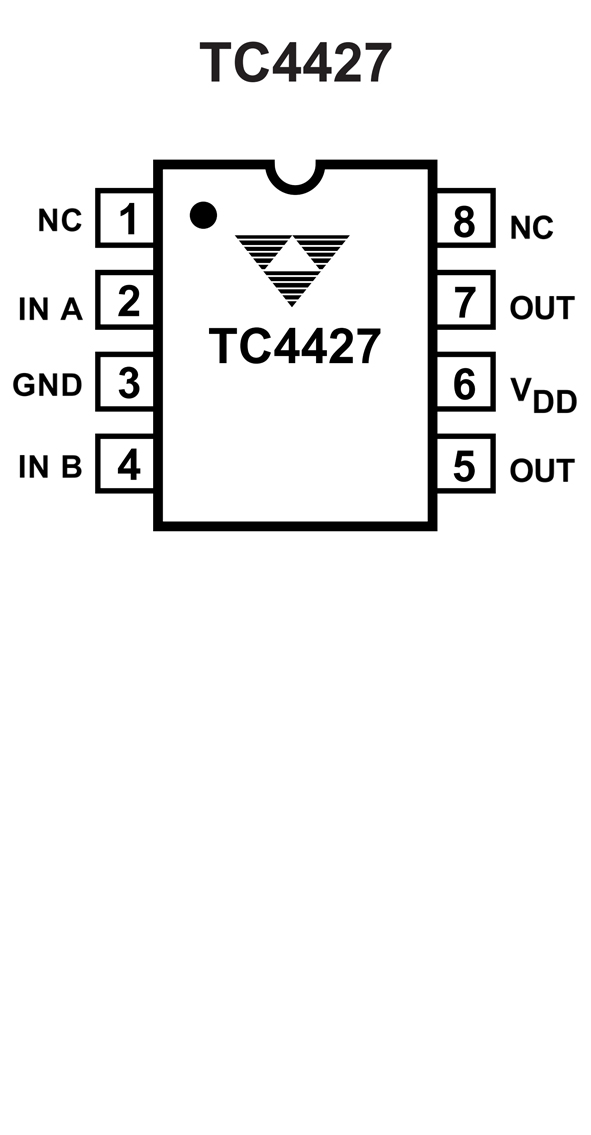

? Pinout Same as TC426/TC427/TC428
