High Voltage, CMOS Analog Switch, SGM4583YTS16G/TR Replace 74HC4053PW.
SGM4583YTS16
SGM4583YTS16.pdf
SGM4583YTS16.pdfFEATURES
? Guaranteed On-Resistance 51? with
±5V Supplies 84? with Single +5V Supply
? Guaranteed On-Resistance Match Between Channels
? Low Off-Leakage Current 10nA at +25℃
? Low On-Leakage Current 10nA at +25℃
? ±1.8V to ±5.5V Dual-Supply Operation
or +3.6V to +11V Single-Supply Operation
? TTL/CMOS-Logic Compatible
? Low Distortion: 0.02%
(RL = 600?, f = 20Hz to 20kHz)
? High Off-Isolation: -62dB (RL = 50?, f = 1MHz)
? Low Crosstalk: -85dB (RL = 50?, f = 1MHz)
? Extended Industrial
Temperature Range: -40℃ to +85℃
? Available in Green SOIC-16, SSOP-16,
TSSOP-16 and TQFN-3×3-16L Packages

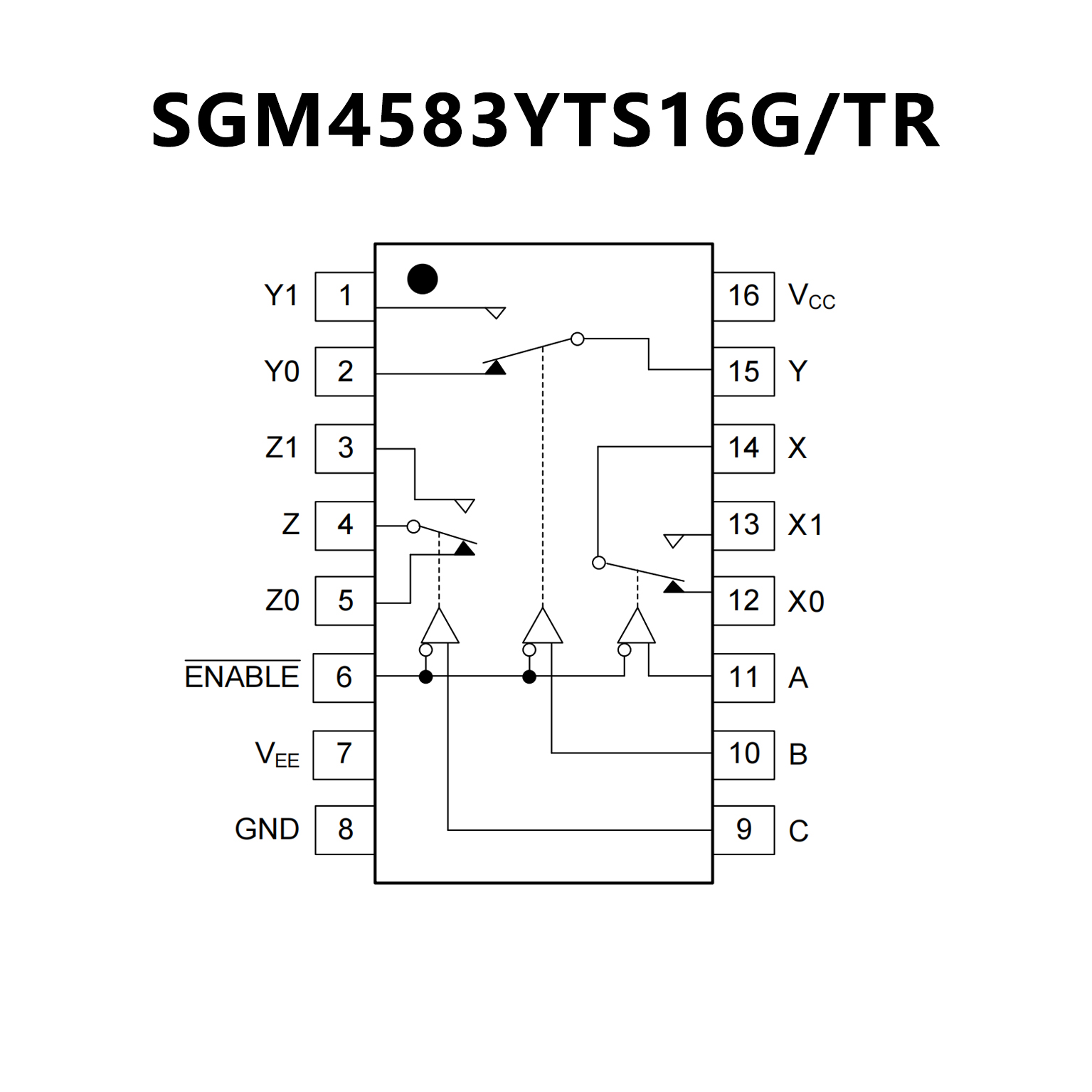

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Wide analog input voltage range from -5 V to +5 V
? CMOS low power dissipation
? High noise immunity
? Latch-up performance exceeds 100 mA per JESD78
Class II Level B
? Complies with JEDEC standard:
? JESD8C (2.7 V to 3.6 V)
? JESD7A (2.0 V to 6.0 V)
? Low ON resistance:
? 80 Ω (typical) at VCC - VEE = 4.5 V
? 70 Ω (typical) at VCC - VEE = 6.0 V
? 60 Ω (typical) at VCC - VEE = 9.0 V
? Logic level translation: to enable 5 V logic to
communicate with ±5 V analog signals
? Typical ‘break before make’ built-in
? ESD protection:
? HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000V
? CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000V
? Multiple package options
? Specified from -40 °C to +85 °C and -40 °C to +125°C

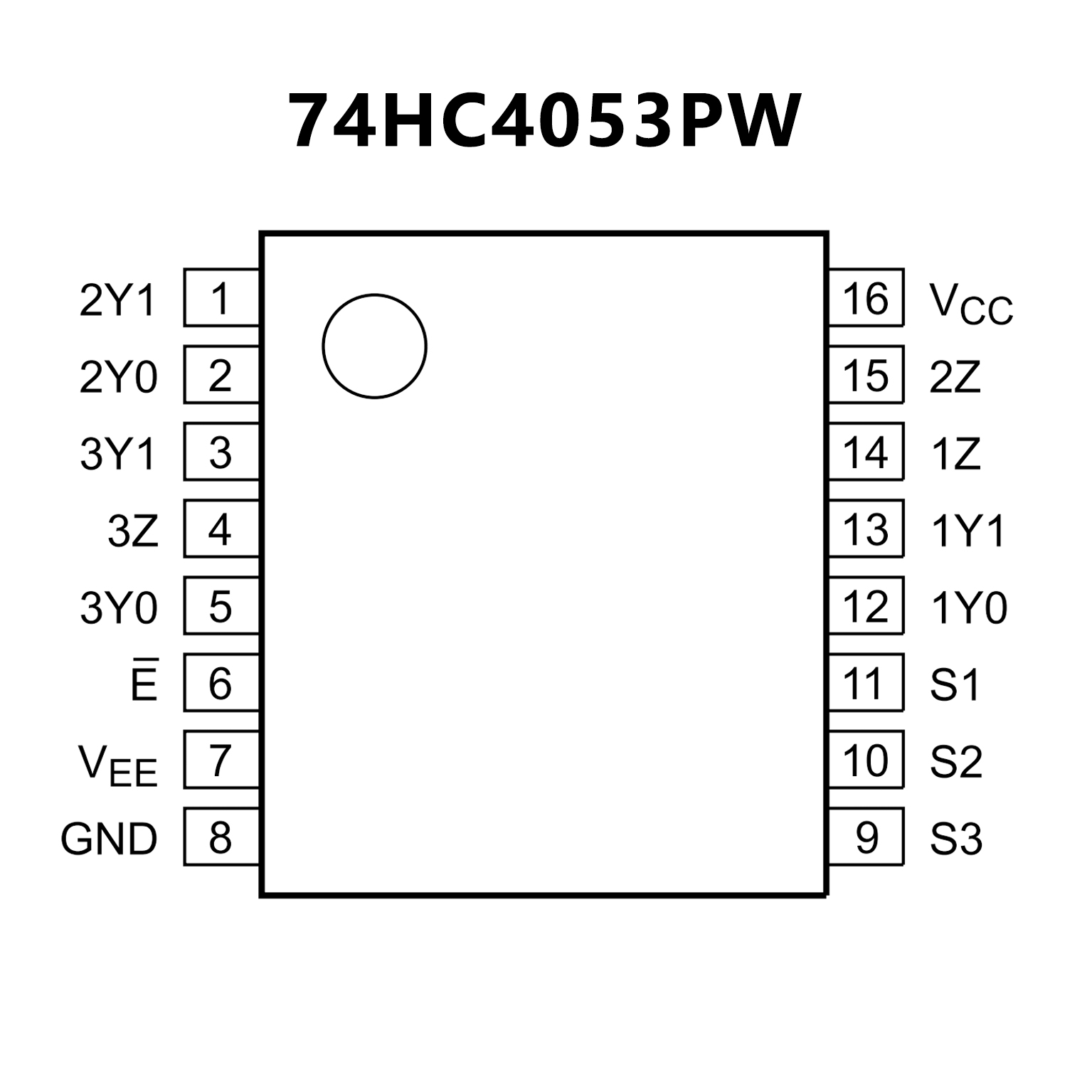

PIN CONFIGUTION
