Quad SPST CMOS Analog Switch, SGM4510 Replace DG201BDY-T1-E3.
SGM4510
SGM4510.pdf
SGM4510.pdfFEATURES
? ±4.5V to ±20V Dual Supply Operation
? 4.5V to 40V Single Supply Operation
? 1.8V Control Logic
? Low On-Resistance: 15.5Ω (TYP)
? Fast Switching Times:
tON = 120ns
tOFF = 40ns
? Low Charge Injection: 55pC
? Simple Logic Interface
? Minimum Transients
? -40℃ to +85℃ Operating Temperature Range
? Available in a Green SOIC-16 Package

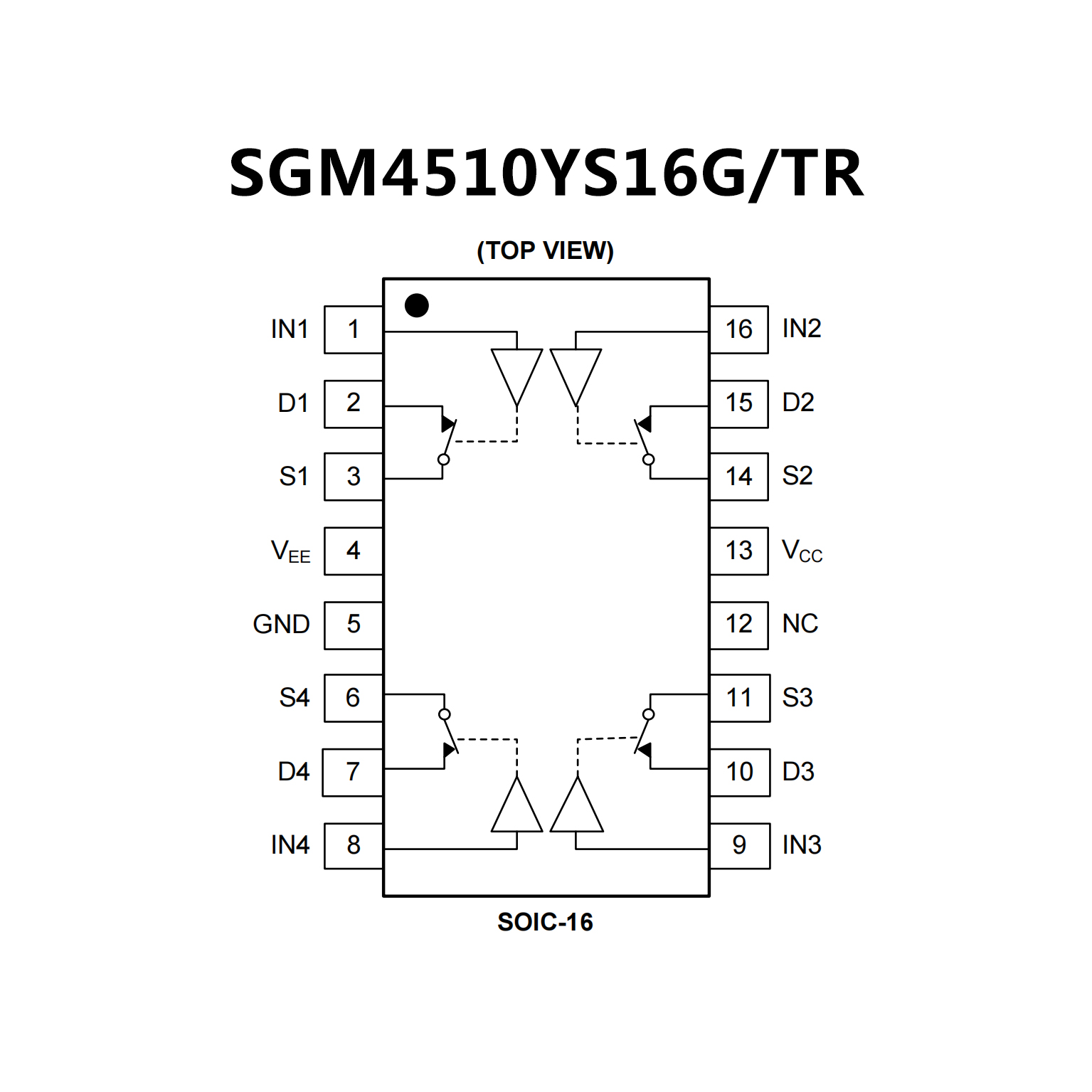

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? ±22-V Supply Voltage Rating
? TTL and CMOS Compatible Logic
? Low On-Resistance—rDS(on): 45
? Low Leakage—ID(on): 20 pA
? Single Supply Operation Possible
? Extended Temperature Range
? Fast Switching—tON: 120 ns
? Low Glitching—Q: 1 pC

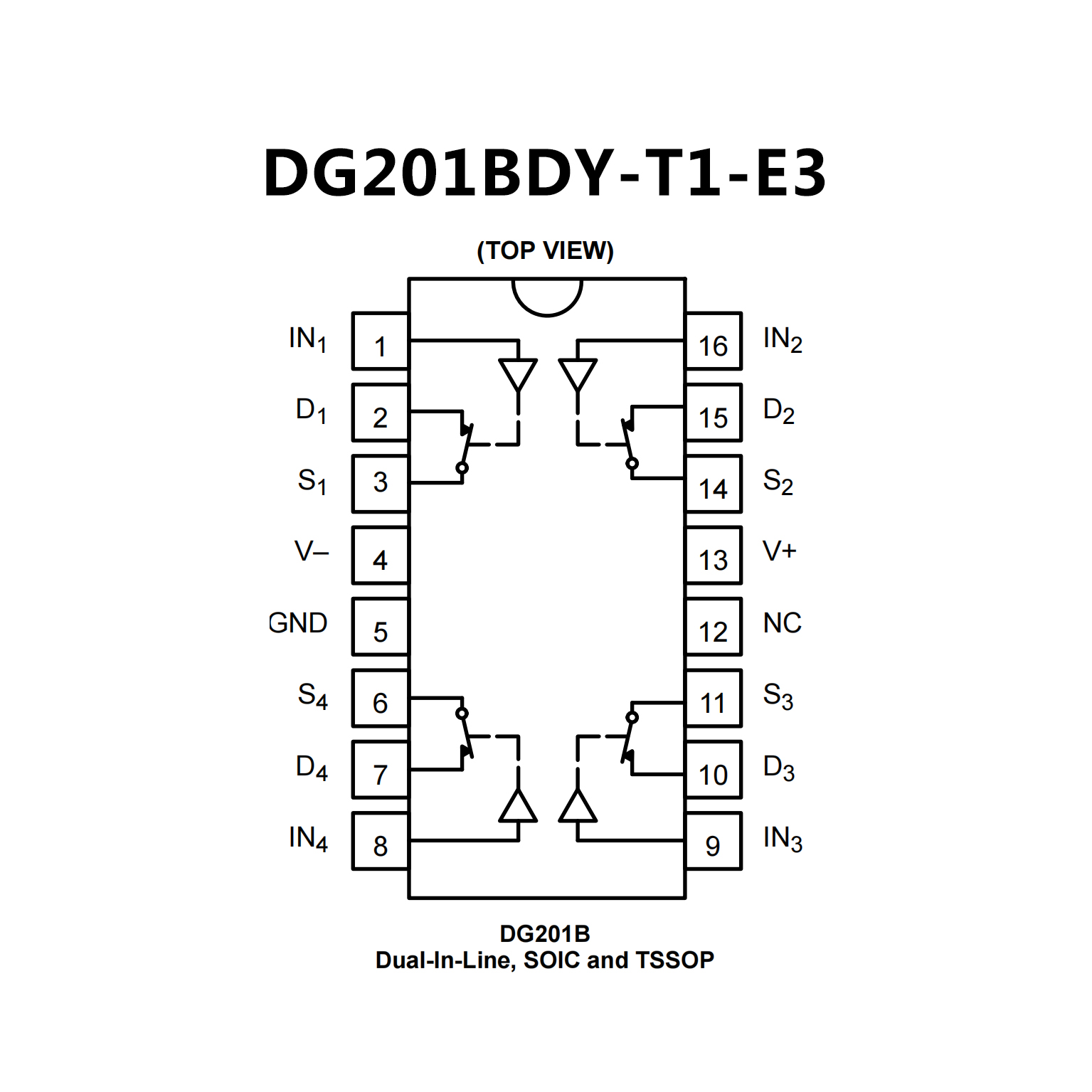

PIN CONFIGUTION
