2 Terminal, High Precision, Current Output Temperature Sensor，Replace ADJ590
SGM446TUEX2G
SGM446TUEX2G.pdf
SGM446TUEX2G.pdfFEATURES
? 2-Terminal Device: Voltage to Current
? Linear Current Output: 1μA/K
? Calibration Error: ±2℃
? Excellent Linearity: ±0.6℃ over Full Temperature Range
? Wide Supply Voltage Range: 4V to 35V
? Operating Temperature Range: -55℃ to +150℃
? Available in Green UTDFN-2×2-2L
andUTDFN-2×2-4L Packages

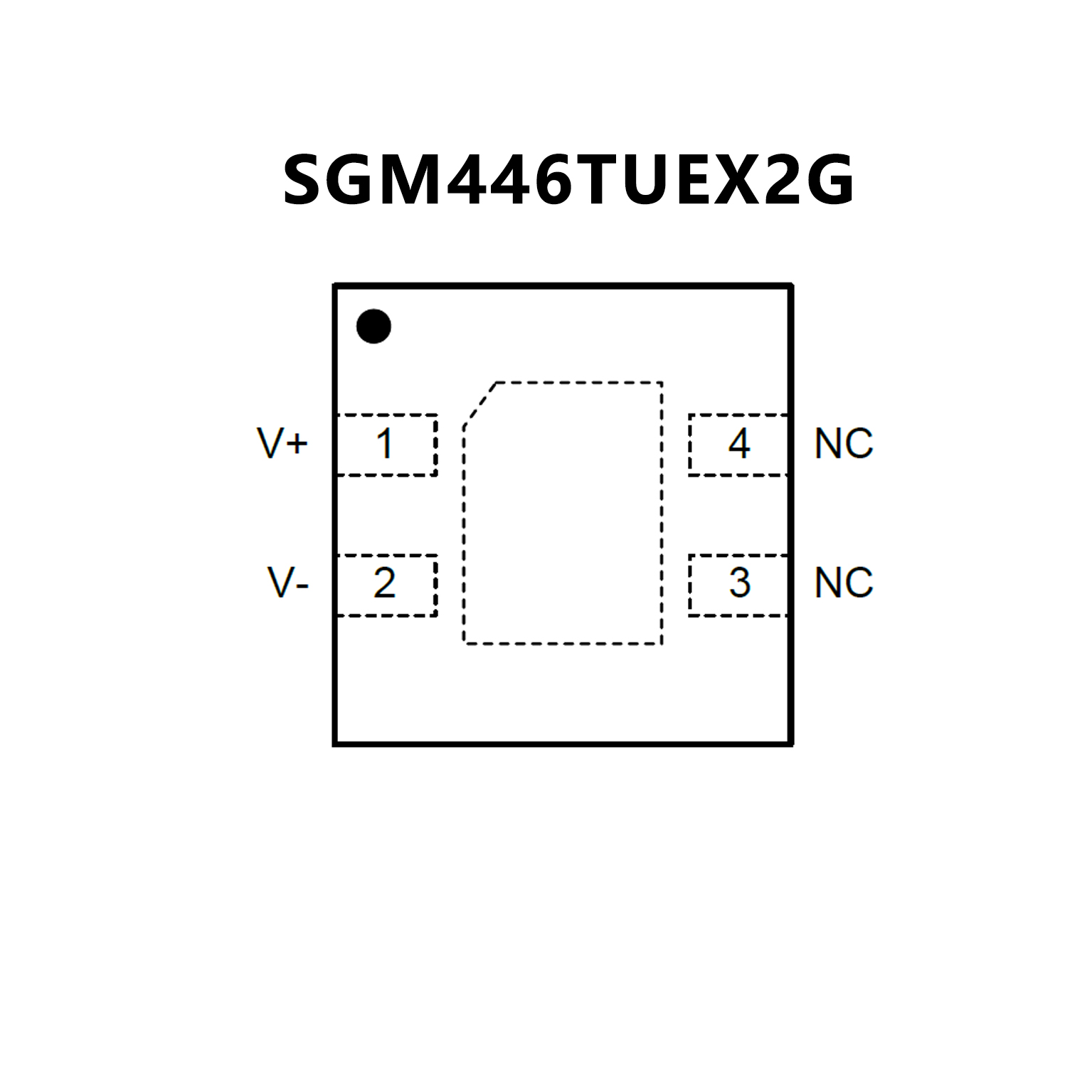

PIN CONFIGUTION
