? Qualified for Automotive Applications

? AEC-Q100 Qualified With the Following Results:

? Low-Voltage Operation, VREF = 1.24 V

? Adjustable Output Voltage, VO = VREF to 6 V

? Reference Voltage Tolerances at 25°C

  0.5% for TLV431B 1% for TLV431A

? Typical Temperature Drift

  11 mV (–40°C to 125°C)

? Low Operational Cathode Current, 80 μA Typ

? 0.25-Ω Typical Output Impedance

? See TLVH431 and TLVH432 for:

  Wider VKA (1.24 V to 18 V) and IK (80 mA)

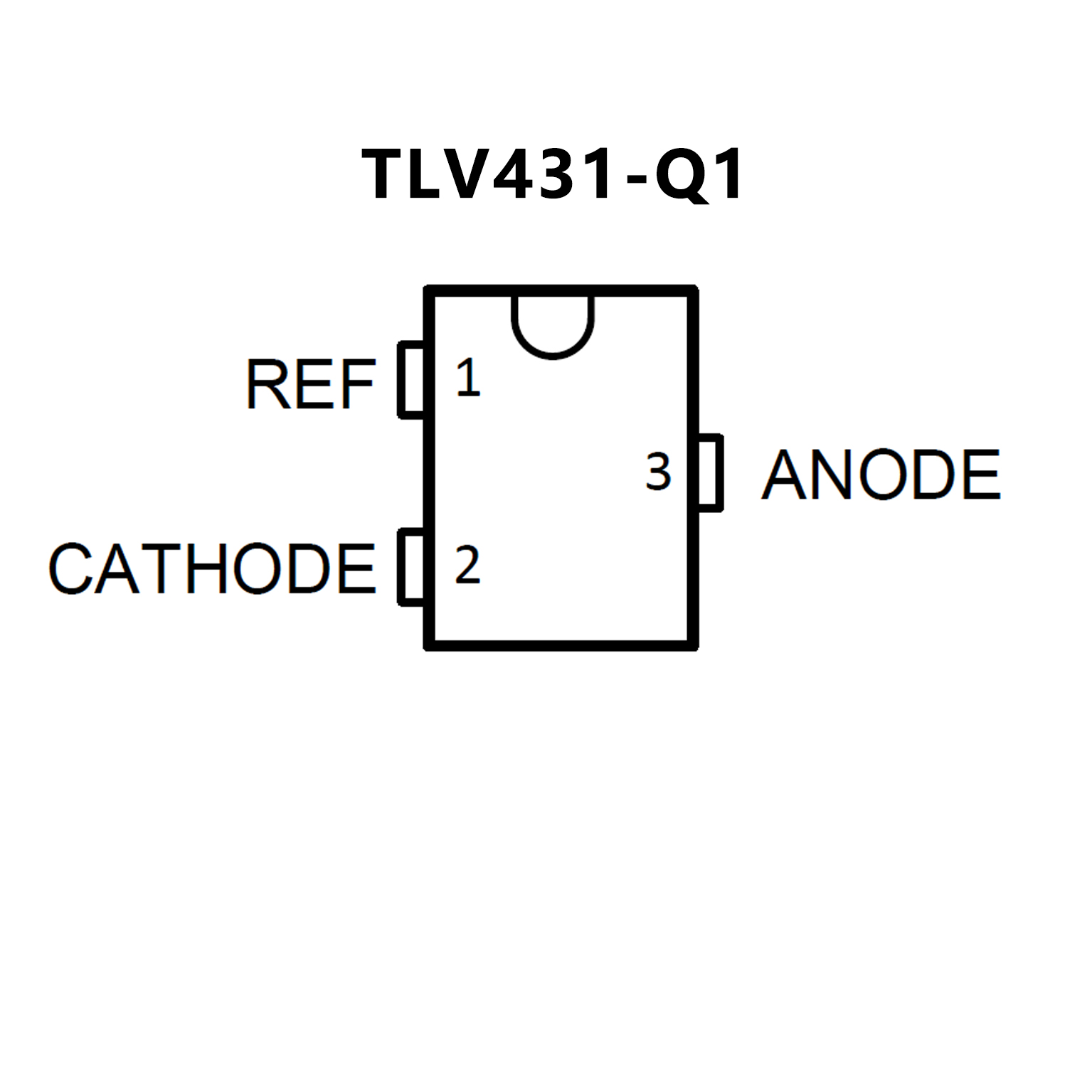

  Multiple Pinouts for SOT-23-3 and SOT-89 Packages
