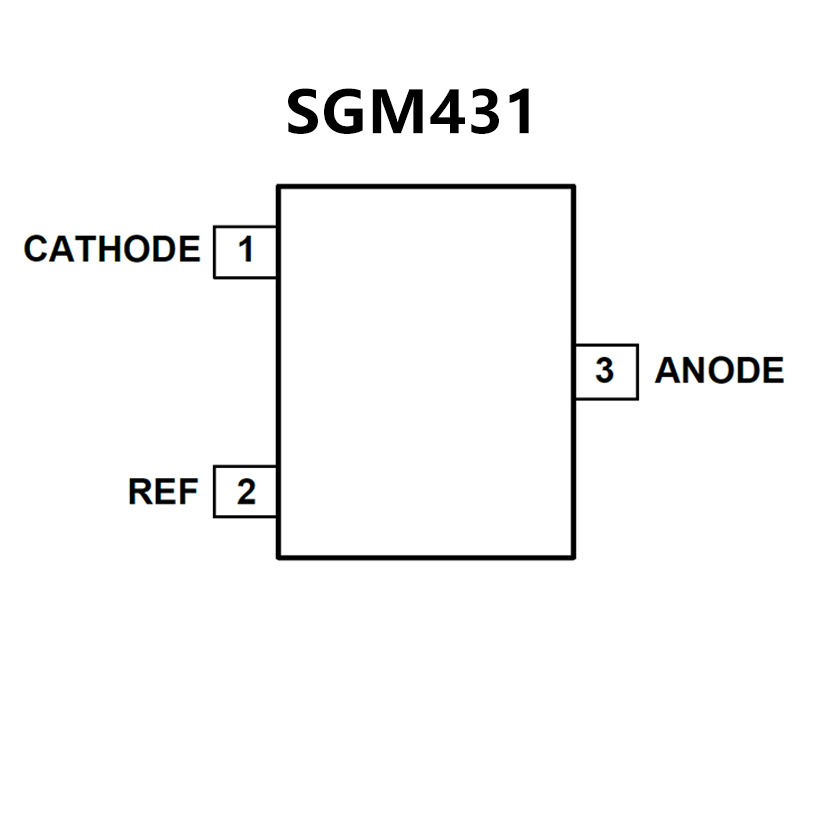

SGM431VBXN3LG.pdf? Reference Voltage Tolerance at +25℃:
SGM431: 1% (Standard Grade)
SGM431B: 0.5% (B Grade)
? Adjustable Output Voltage: VREF to 36V
? High Stability under Capacitive Load
? Typical Temperature Drift: 5mV
? Low Output Noise
? Typical Output Impedance: 0.1Ω
? Sink-Current Capability: 1mA to 100mA
? Operating Junction Temperature Range:
-40℃ to +125℃
? The SGM431 is available in Green SOIC-8, SOT-23,
SOT-89-3, SOT-23-5 and SC70-6 Packages
? The SGM431B is available in Green SOIC-8, SOT-23,
SOT-89-3 and SOT-23-5 Packages

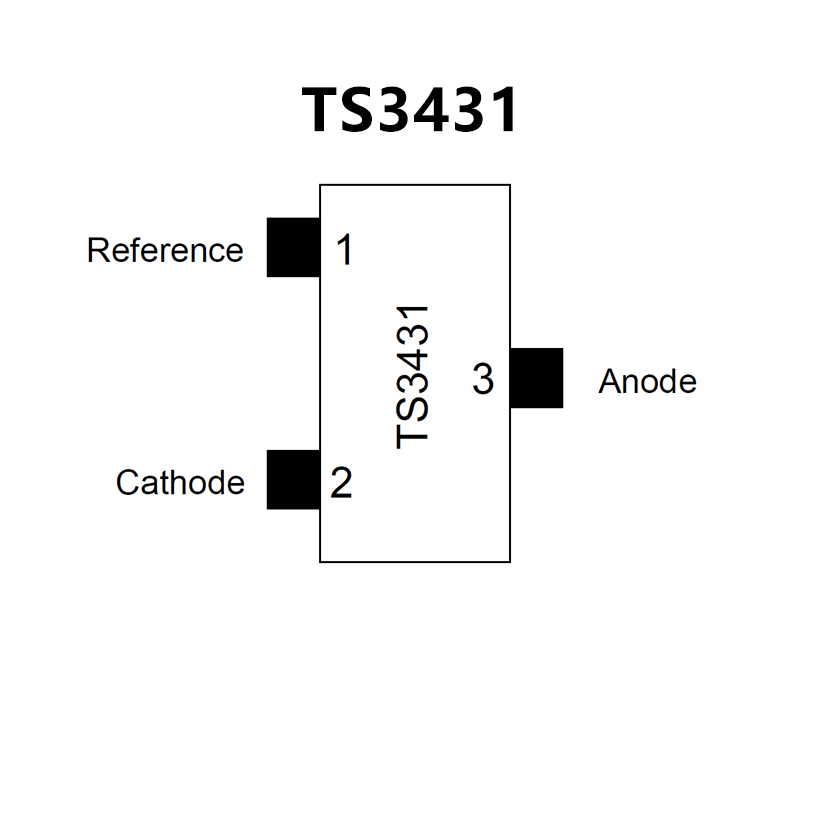

? Adjustable output voltage: 1.24 to 24 V
? Several precision levels @ 25 °C ± 2%,
± 1%, ± 0.5% and ± 0.25%
? Sink current capability: 0.4 to 100 mA
? Industrial temperature range: - 40 °C to + 105 °C
? Performance compatible with industry standard TL431
