Precision Programmable Reference,SGM431 Replace KIA431.
SGM431
SGM431.pdf
SGM431.pdfFEATURES
? Reference Voltage Tolerance at +25℃:
SGM431: 1% (Standard Grade)
SGM431B: 0.5% (B Grade)
? Adjustable Output Voltage: VREF to 36V
? High Stability under Capacitive Load
? Typical Temperature Drift: 5mV
? Low Output Noise
? Typical Output Impedance: 0.1Ω
? Sink-Current Capability: 1mA to 100mA
? Operating Junction Temperature
Range:-40℃ to +125℃
? The SGM431 is available in Green SOIC-8,
SOT-23,SOT-89-3, SOT-23-5 and SC70-6 Packages
? The SGM431B is available in Green
SOIC-8, SOT-23,SOT-89-3 and SOT-23-5 Packages

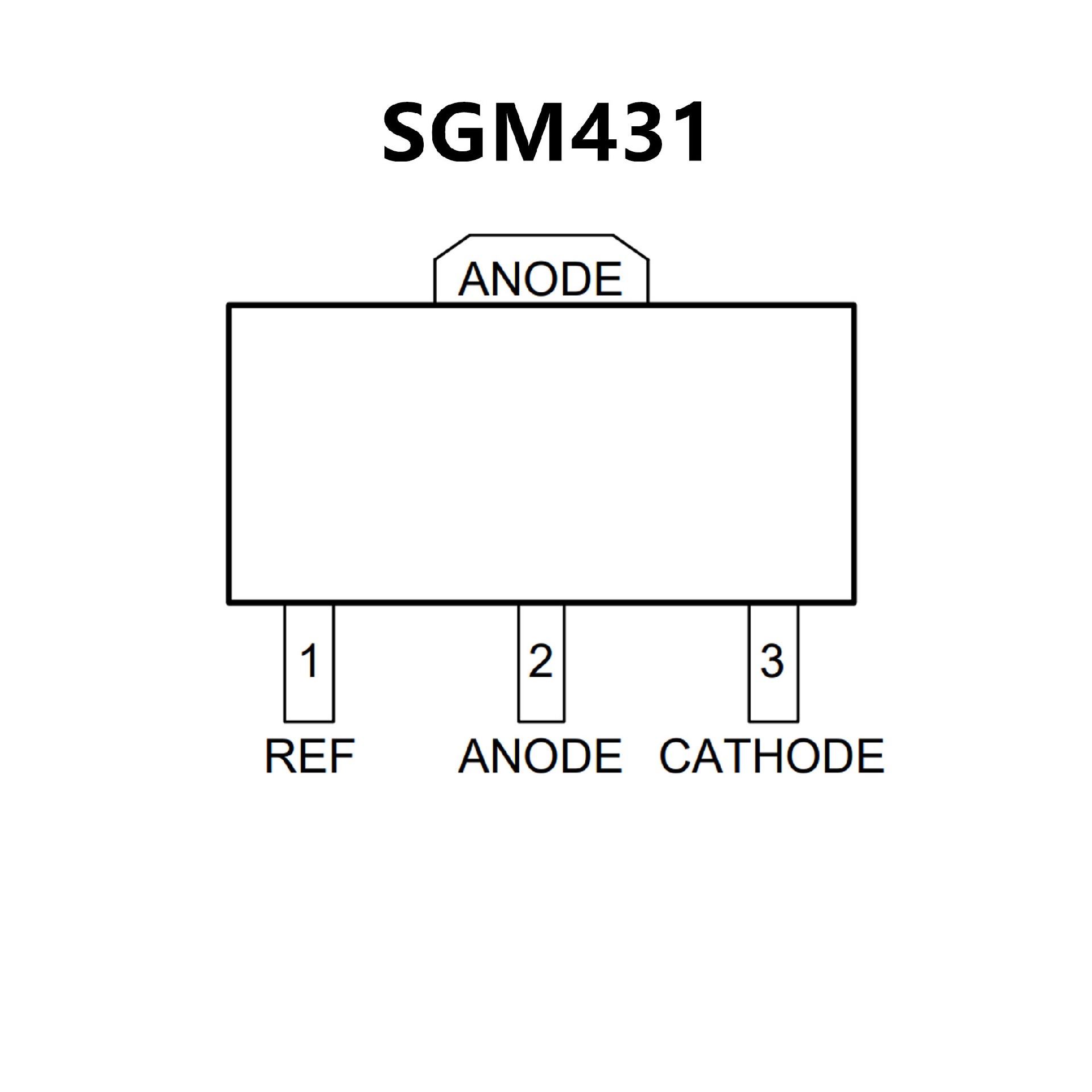

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Adjustable output voltage from 2.5V to 36V
? Low dynamic output resistance: 0.2 ohm
? Sink current capacity from 1m A to 100m A
? Low output noise
? Typical equivalent full range
temperature coefficient of 30ppm/°C

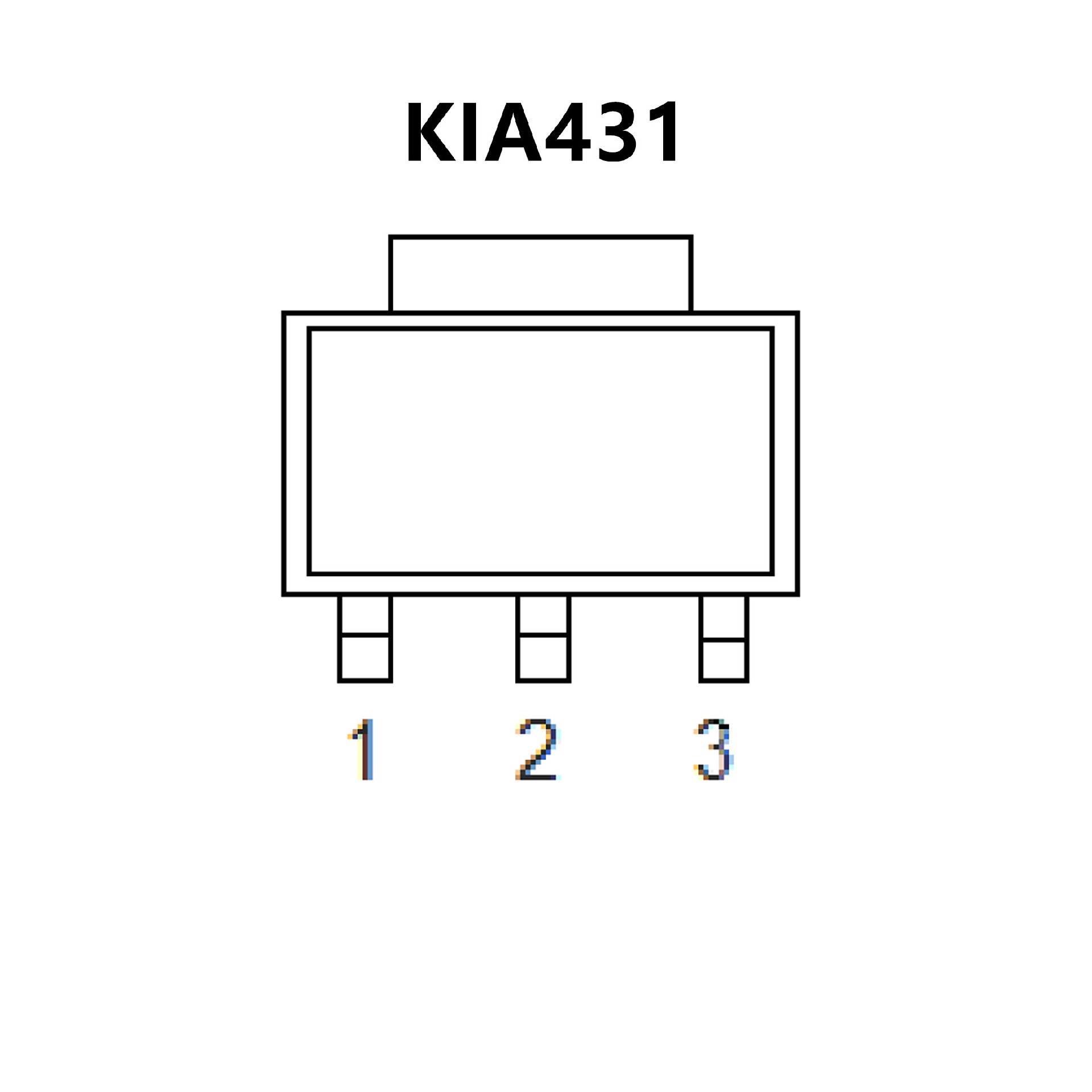

PIN CONFIGUTION
