Motor Driver, Forward / Reverse, Low-Saturation Voltage, 12V, SGM42611B Replace LV8548.
SGM42611B
SGM42611B.pdf
SGM42611B.pdfFEATURES
? SGM42610: Quad Half-Bridge Driver
? SGM42611A: 4-Wire Input Stepper Driver
? SGM42611B: 2-Wire Input Stepper Driver
? Supply Voltage Range: 2.5V to 16V
? Integrated Protection Features
VCC Under-Voltage Lockout (UVLO)
Over-Current Protection (OCP)
Thermal Shutdown (TSD)
Short-Circuit Protection (SCP)
Auto-Retry
? Low Power Sleep Mode (SGM42611B Only)
? Available in Green MSOP-10 (Exposed Pad) and
SSOP-10 Packages

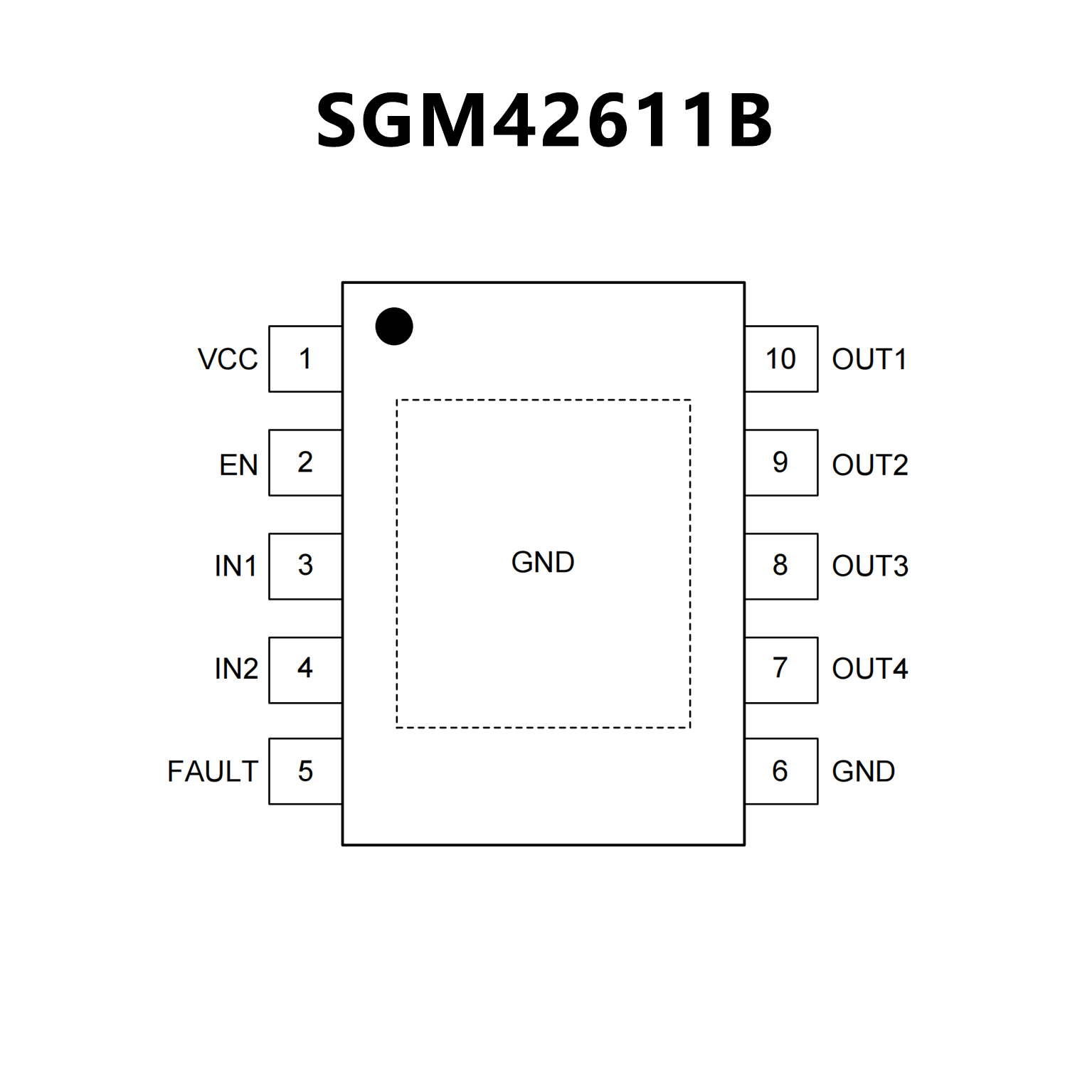

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? DMOS output transistor adoption(Upper and lower total
RON = 1Ω typ)
? High Efficiency
? Current consumption 0 when standby mode
? Low Consumption
? 4V to 16V Operating supply voltage range(The control
system power supply is unnecessary.)
? Easy design
? VCC max = 20V, IO max = 1A
? Safety design
? The compact package (SOIC10) is adopted.
? Board area reduction
? It is possible to connect in parallel.(parallel, connection
of drive channel)
? High current correspondence
? Pin compatible with LB1948MC
? Built-in brake function

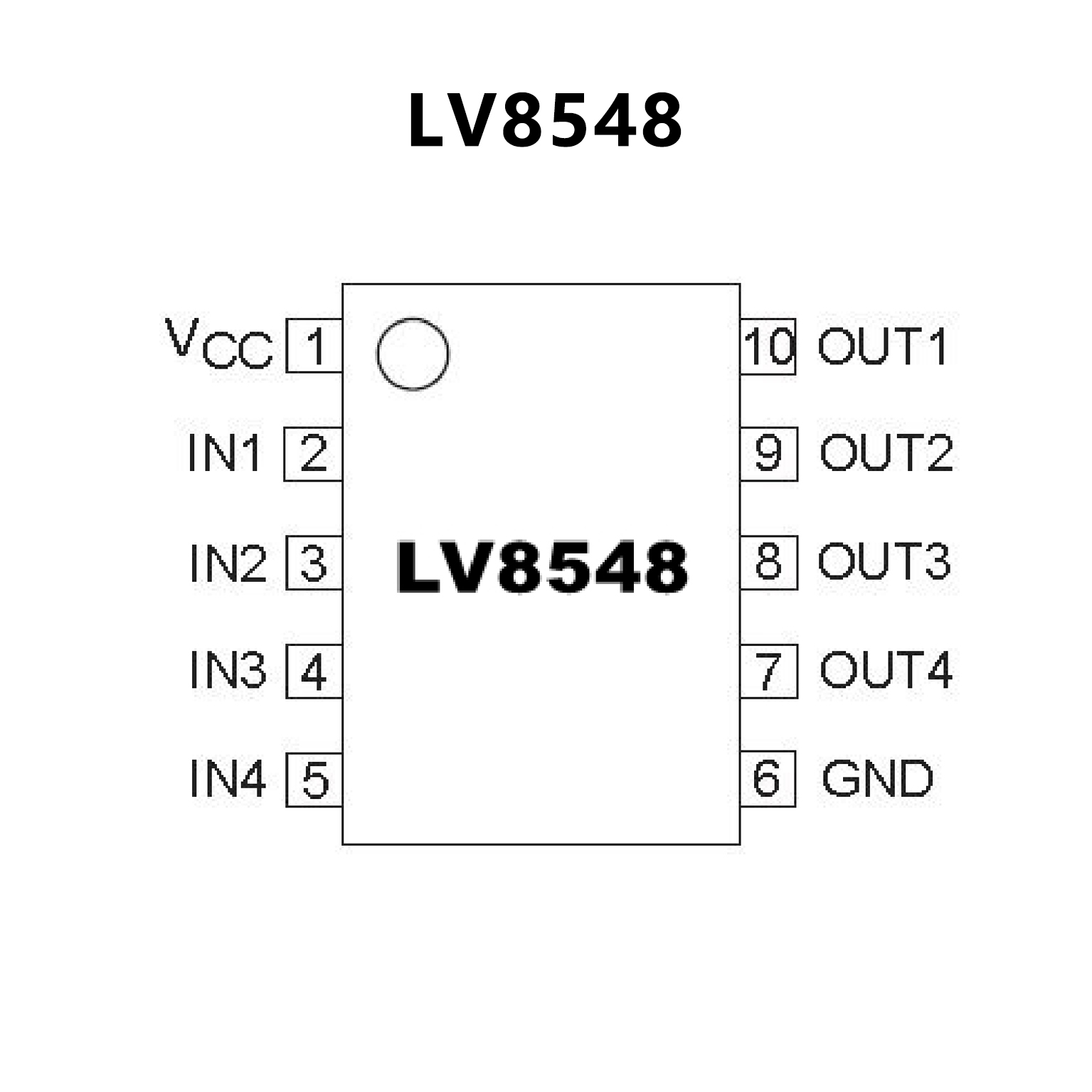

PIN CONFIGUTION
