Quad Low Side Driver IC, SGM42403Q Replace DRV8803.
SGM42403Q
SGM42403Q.pdf
SGM42403Q.pdfFEATURES
? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA= -40℃ to +125℃
? Supply Voltage Range: 6.5V to 50V
? Quad Low-side Driver
Four N-Channel MOSFETs
Can be Paralleled for Higher Current Capability
Integrated Diodes for Inductive Energy Discharge
? Continuous Output Current
2A (1-Channel On)
1.1A/CH (4-Channel On)
? Full Set of Protections
Integrated Diodes for Inductive Energy Clamp
Thermal Shutdown with Auto-Retry
Overload Protection
Short-Circuit Protection
Under-Voltage Lockout

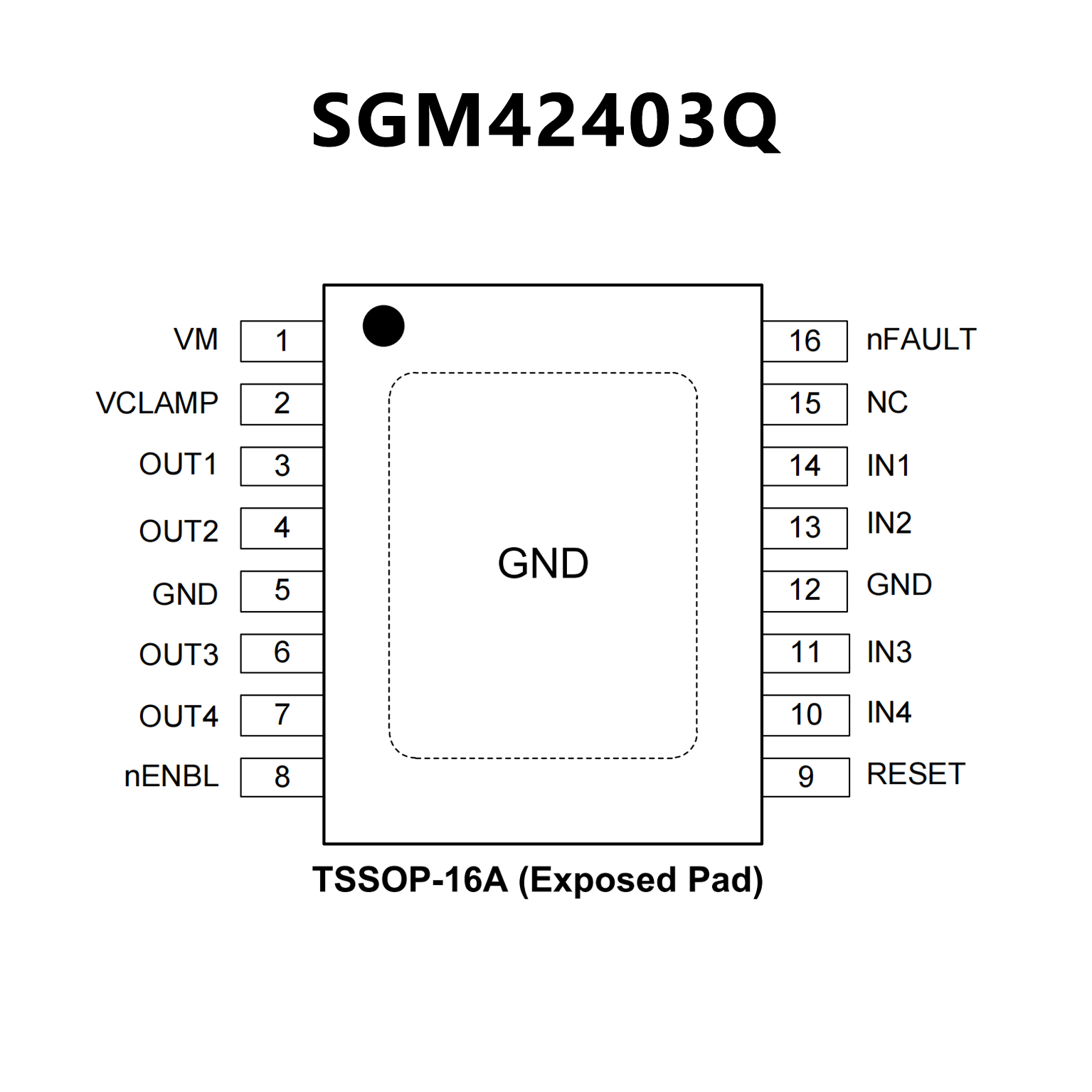

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? 4-Channel Protected Low-Side Driver
Four NMOS FETs With Overcurrent Protection
Integrated Inductive Clamp Diodes
Parallel Interface
? DW Package: 1.5-A (Single Channel On) /
? 800-mA (Four Channels On) Maximum
Drive Current per Channel (at 25°C)
? PWP Package: 2-A (Single Channel On) /
A (Four Channels On) Maximum Drive
Current per Channel (at 25°C, With Proper PCB Heatsinking)
? 8.2-V to 60-V Operating Supply Voltage Range
? Thermally Enhanced Surface Mount Package

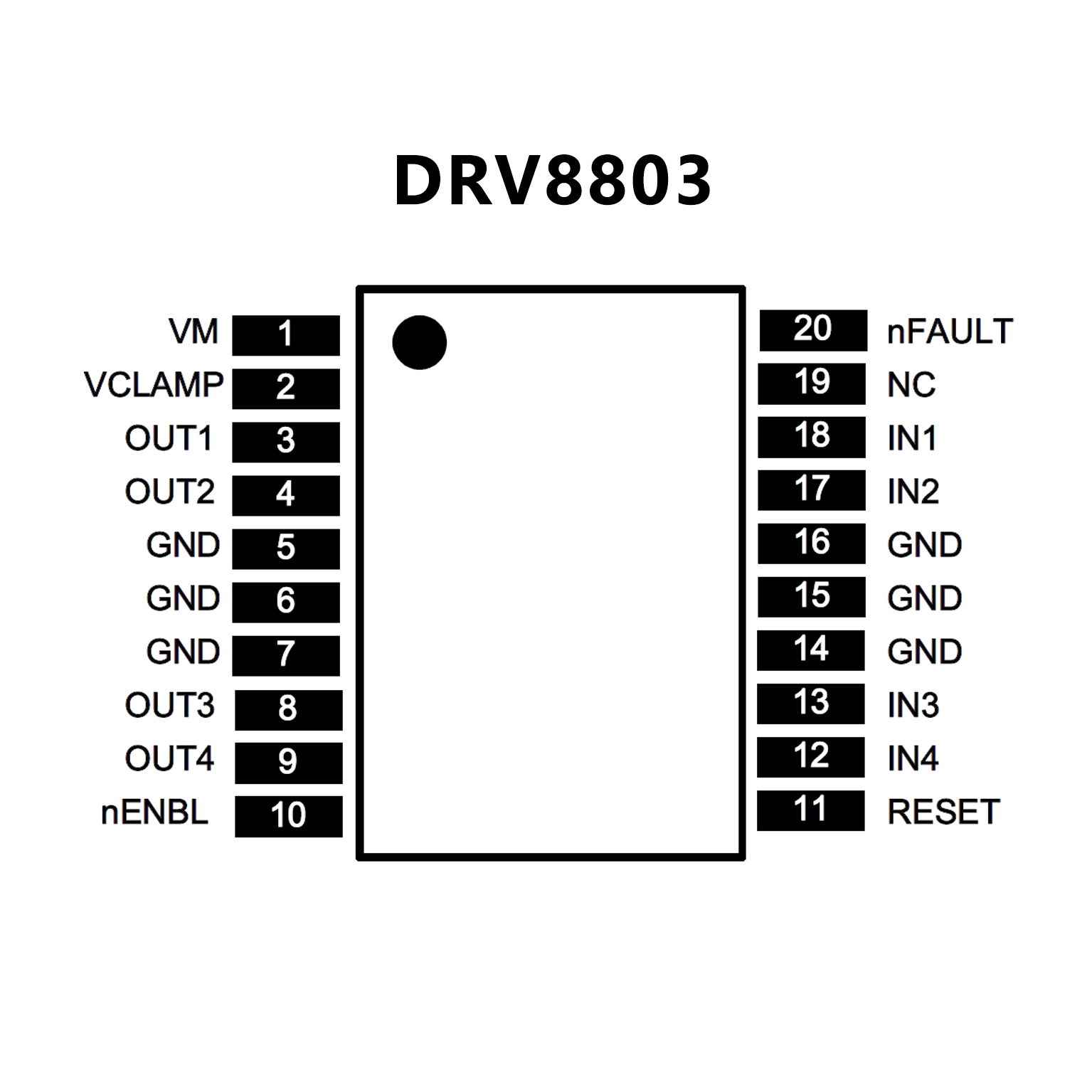

PIN CONFIGUTION
