One Cell Lithium-ion/Polymer Battery Protection IC, SGM41103 Replace XB6042Q2SV.
SGM41103.pdf優(yōu)勢替代
FEATURES
? Protection of Charger Reverse
Connection
? Protection of Battery Cell Reverse
Connection without external load
? Integrate Advanced Power MOSFET
with Equivalent of 44mΩ RDS(ON)
? DFN1X1x0.37-4 Package
? Low Overcharge Release Voltage
? Over-temperature Protection
? Overcharge Current Protection 0.4A
? Two-step Overcurrent Detection:
-Overdischarge Current 0.4A
-Load Short Circuiting
? Charger Detection Function
? 0V Battery Charging Function
- Delay Times are generated inside
? High-accuracy Voltage Detection
? Low Current Consumption
- Operation Mode:1.5μA Typ.
? RoHS Compliant and Lead (Pb) Free

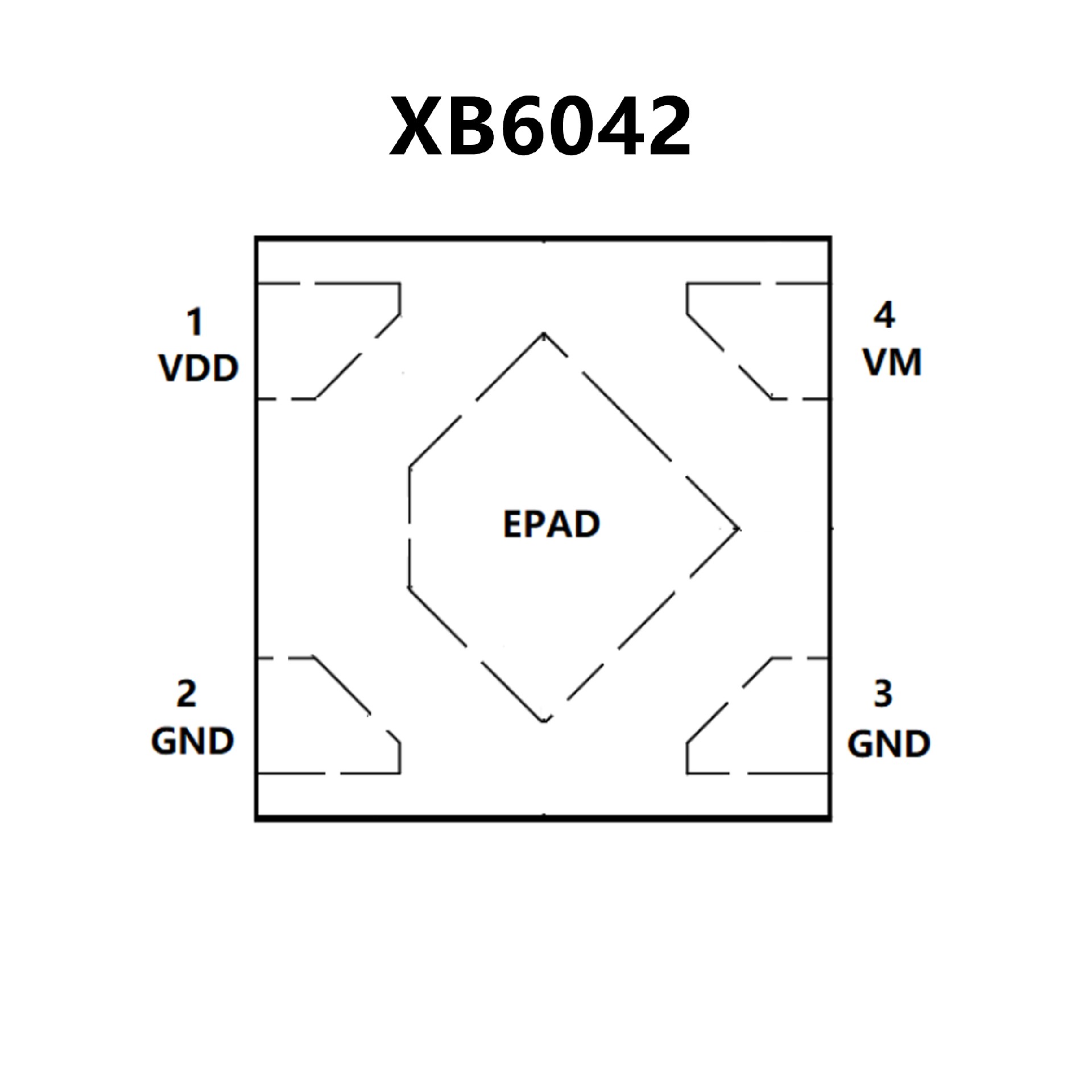

PIN CONFIGUTION
