0.5?, Low Voltage Dual, DPDT Analog Switch,SGM3799YTQA16 Replace FSA2466UMX.
SGM3799YTQA16
SGM3799YTQA16.pdf
SGM3799YTQA16.pdfFEATURES
? Low Voltage Operation: 1.8V to 4.35V
? Ultra Low On-Resistance: 0.5? (TYP)
? Low On-Resistance Flatness
? -3dB Bandwidth: 70MHz
? Fast Switching Times (4.2V)
tON = 52ns
tOFF = 25ns
? Rail-to-Rail Input and Output Operation
? Low Power Consumption
? TTL/CMOS Compatible Logic Control
? -40℃ to +85℃ Operating Temperature Range
? Available in Green TQFN-2.6×1.8-16L Package
PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Sw itch Type DPDT (2x)
? Input Type Data / Audio Sw itch
? Input Signal Range 0 to VCC
? VCC 1.65 to 4.45 V
? RON 2.5 ? at 2.7 V
? RFLAT 0.8 ? at 2.7 V
? ESD 8 kV HBM
? Bandw idth 245 MHz
? CON at 240MHz 16 pF
? COFF at 240MHz 6.0 pF
? Features Low ICCT
? Package 16- Lead UMLP
? 1.80 x 2.60 x
0.55 mm, 0.40 mm pitch
? Top Mark KA
? Ordering Information FSA2466UMX

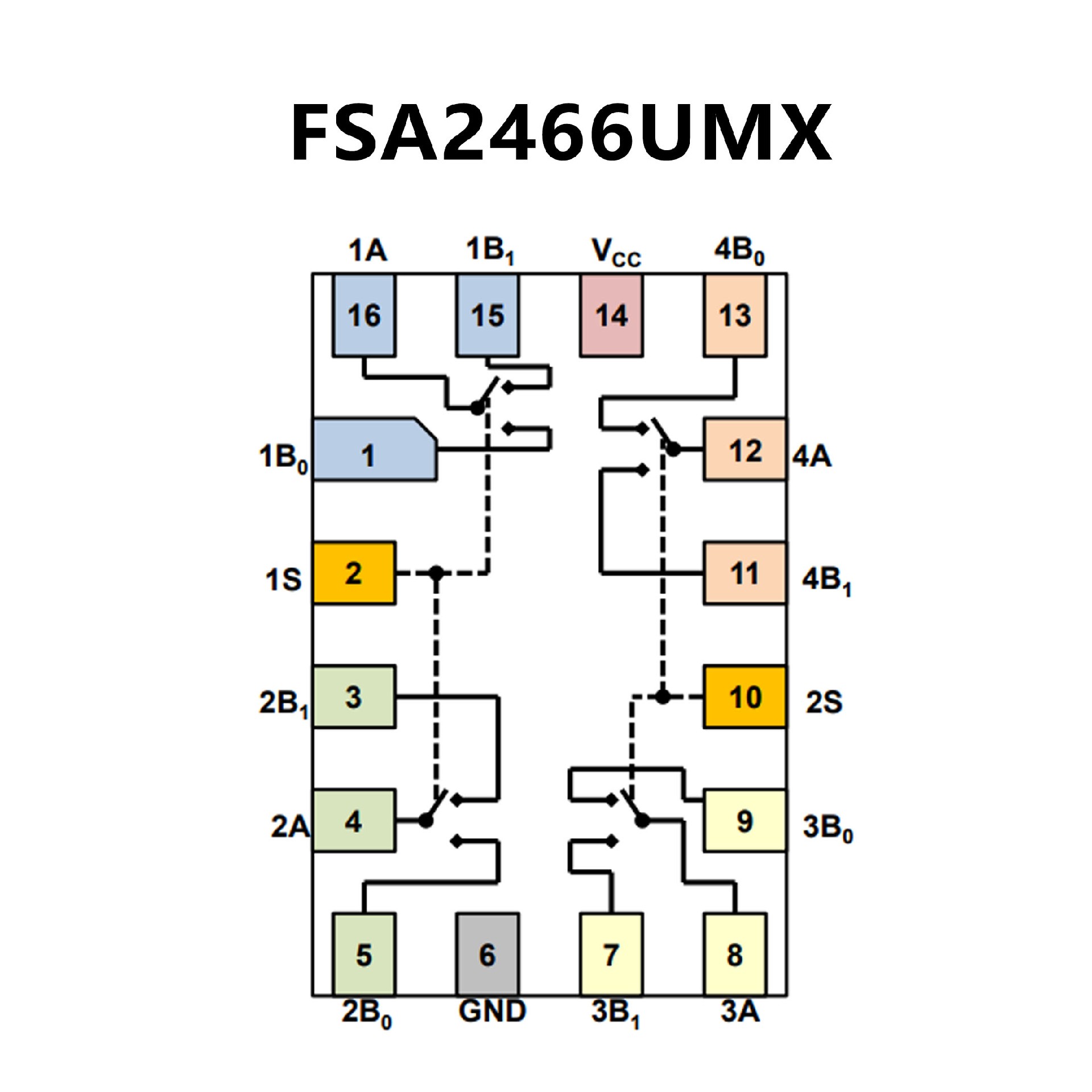

PIN CONFIGUTION
