Quad, Wide-Bandwidth SPDT Video Analog Switch,SGM330A-YTS/TR Replace CBT3257APW.
SGM330A-YTS
SGM330A-YTS.pdf
SGM330A-YTS.pdfFEATURES
? Single Supply Voltage Range: 2.7V to 5.5V
? -3dB Bandwidth: 500MHz
? Low On-Resistance: 12Ω (TYP)
? Low Crosstalk: -60dB (TYP) at 10MHz
? Off-Isolation: -58dB at 10MHz
? Power Consumption: ICC = 0.1μA (TYP)
? Rail-to-Rail Input and Output Operation
? Fast Switching Times
? TTL/CMOS Compatible
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-16, TSSOP-16 and
SSOP-16 Packages

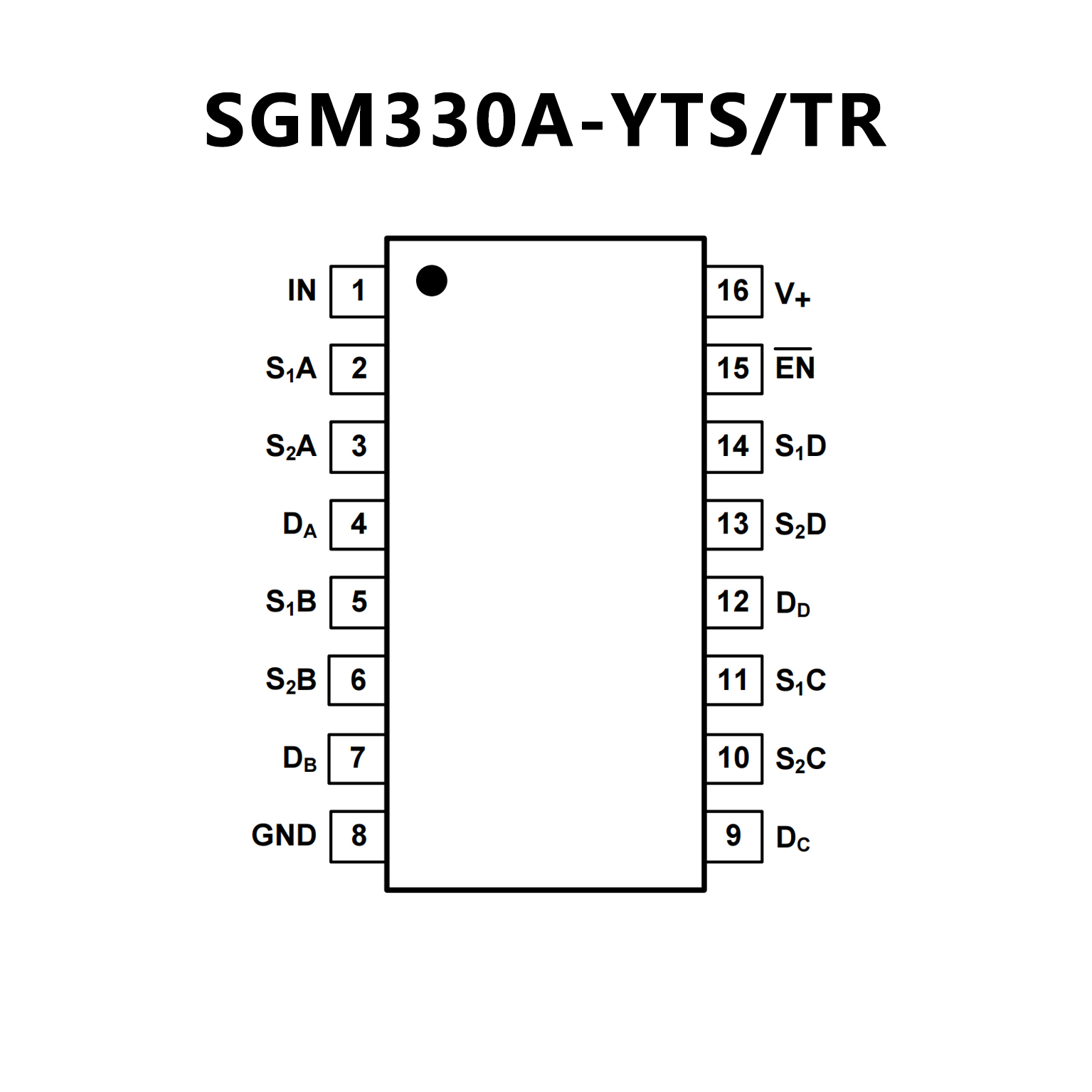

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? 5 Ω switch connection between two ports
? Minimal propagation delay through the switch
? Direct interface with TTL levels
? Overvoltage tolerant control inputs to 5.5 V
? Latch-up protection exceeds 100 mA per
JEDEC standard JESD78 class II level A
? ESD protection:
? HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000V
? CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000V
? Multiple package options
? Specified from -40 °C to +85 °C

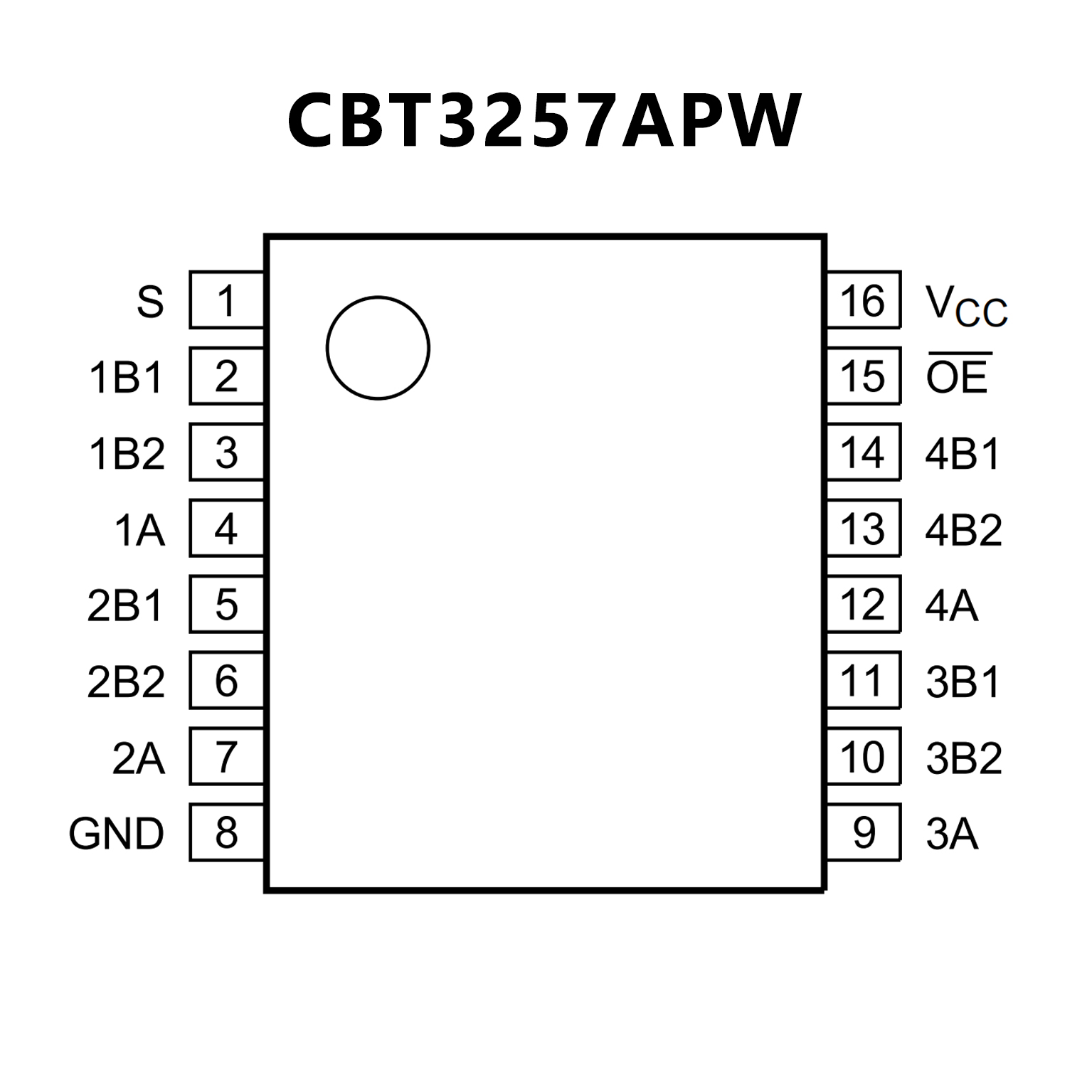

PIN CONFIGUTION
