1MHz, 60μA, Rail-to-Rail I/O CMOS Operational Amplifiers,SGM321YC5TR-Replace-AZV321KSTR-G1.
SGM321YC5TR
SGM321YC5TR.pdf
SGM321YC5TR.pdfFEATURES
? Low Cost
? Rail-to-Rail Input and Output
? Input Offset Voltage: 5mV (MAX)
? Unity Gain Stable
? Gain-Bandwidth Product: 1MHz
? Very Low Input Bias Current: 10pA
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range:
-0.1V to 5.6V with VS = 5.5V
? Low Supply Current: 60μA/Amplifier
? Small Packaging:SGM321 Available in SOT-23-5
and SC70-5SGM358 Available in SOIC-8, MSOP-8
and DIP-8 SGM324 Available in SOIC-14 and TSSOP-14

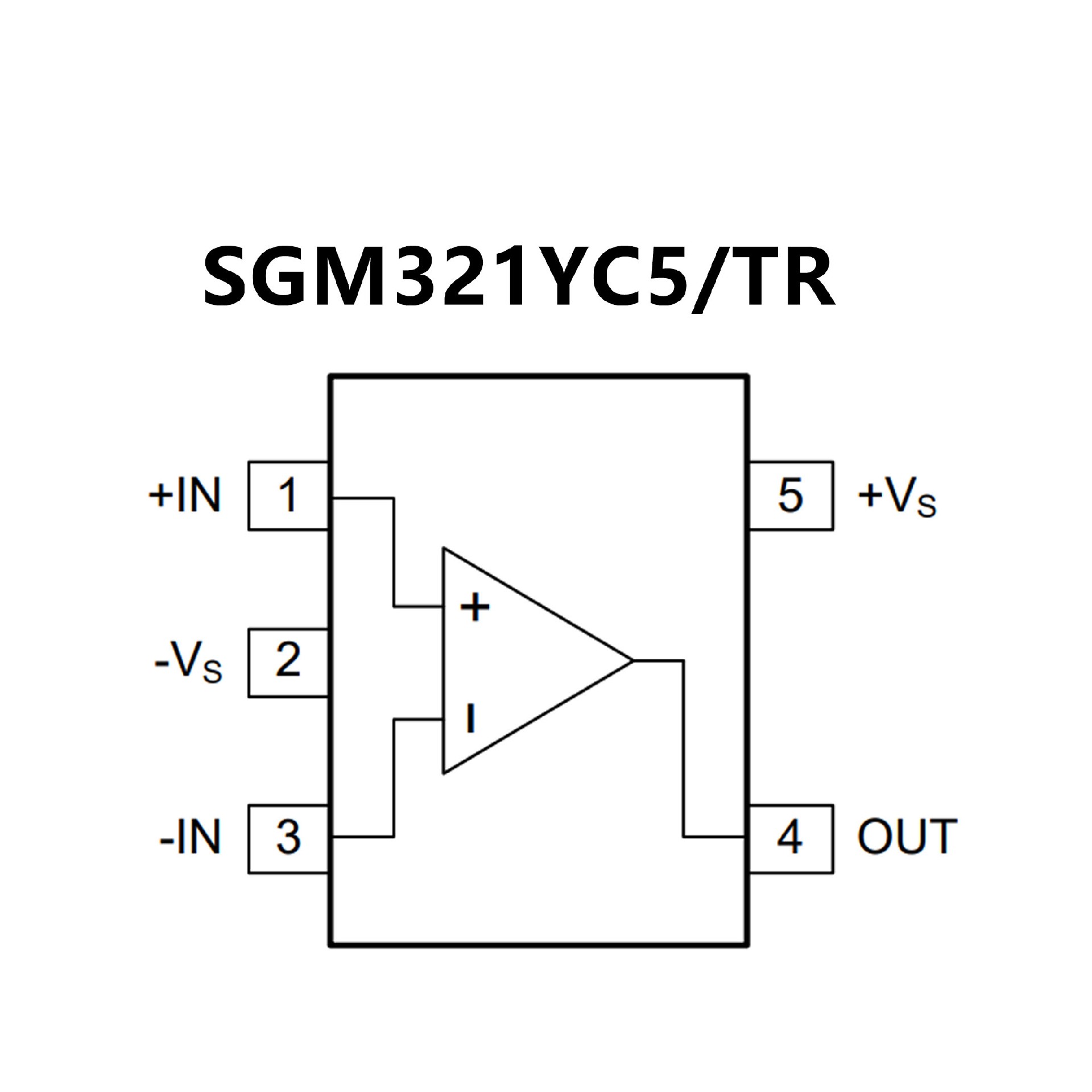

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Guaranteed 2.7V to 5.5V Performance
? No Crossover Distortion
? Gain-Bandwidth Product 1MHz
? Industrial Temperature Range:
-40oC to +85oC
? Low Supply Current: 130μA
? Rail-to-Rail Output Swing under
10k? Load:
VOH up to VCC-10mV
VOL near to VEE+65mV
? VCM: -0.1V to VCC-0.8V

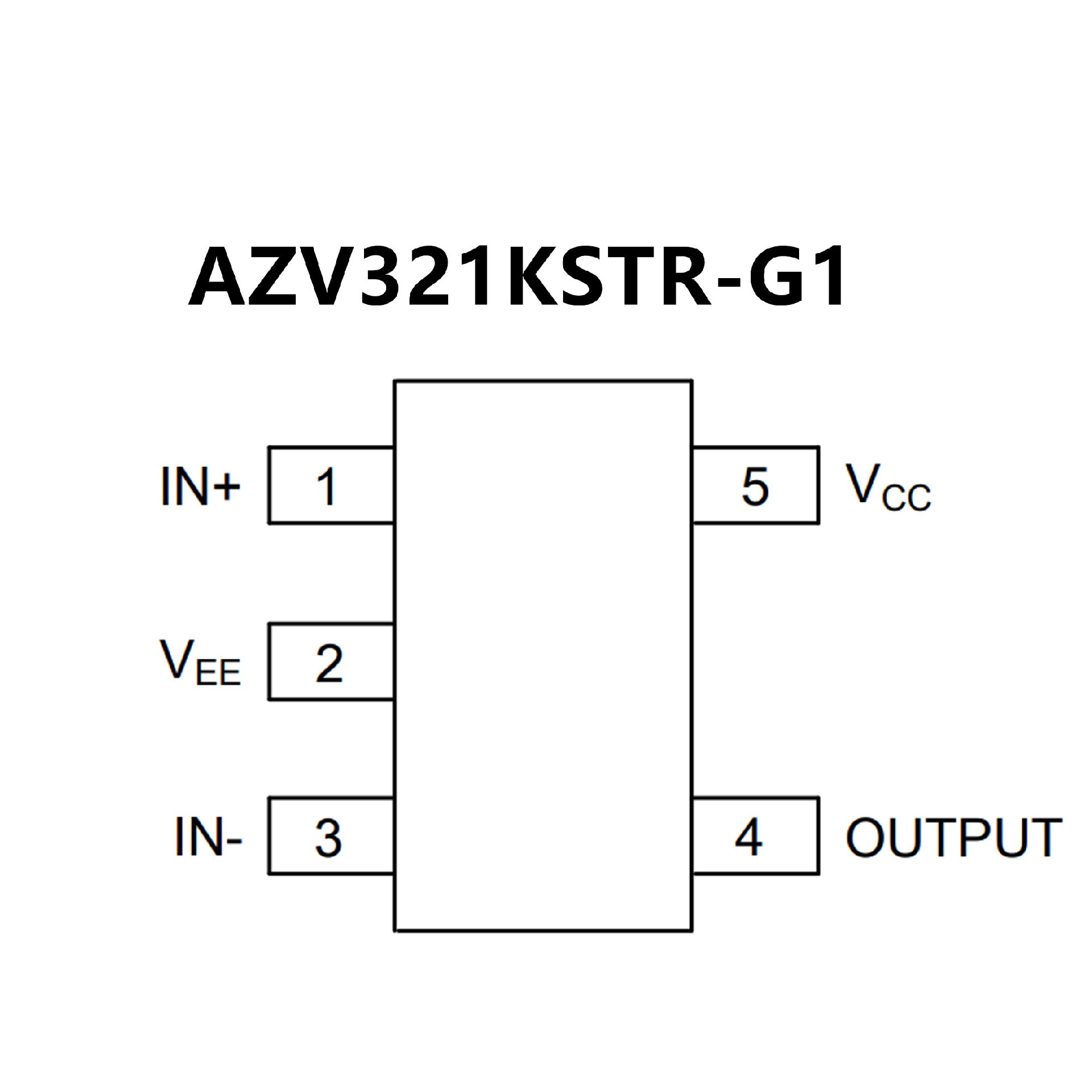

PIN CONFIGUTION
