1MHz, 60μA, Rail-to-Rail I/OCMOS Operational Amplifiers,SGM321 Replace OPA348.
SGM321
SGM321.pdf
SGM321.pdfFEATURES
? Low Cost
? Rail-to-Rail Input and Output
? Input Offset Voltage: 5mV (MAX)
? Unity Gain Stable
? Gain-Bandwidth Product: 1MHz
? Very Low Input Bias Current: 10pA
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range:
-0.1V to 5.6V with VS = 5.5V
? Low Supply Current: 60μA/Amplifier
? Small Packaging:
SGM321 Available in SOT-23-5 and SC70-5
SGM358 Available in SOIC-8, MSOP-8 and DIP-8
SGM324 Available in SOIC-14 and TSSOP-14

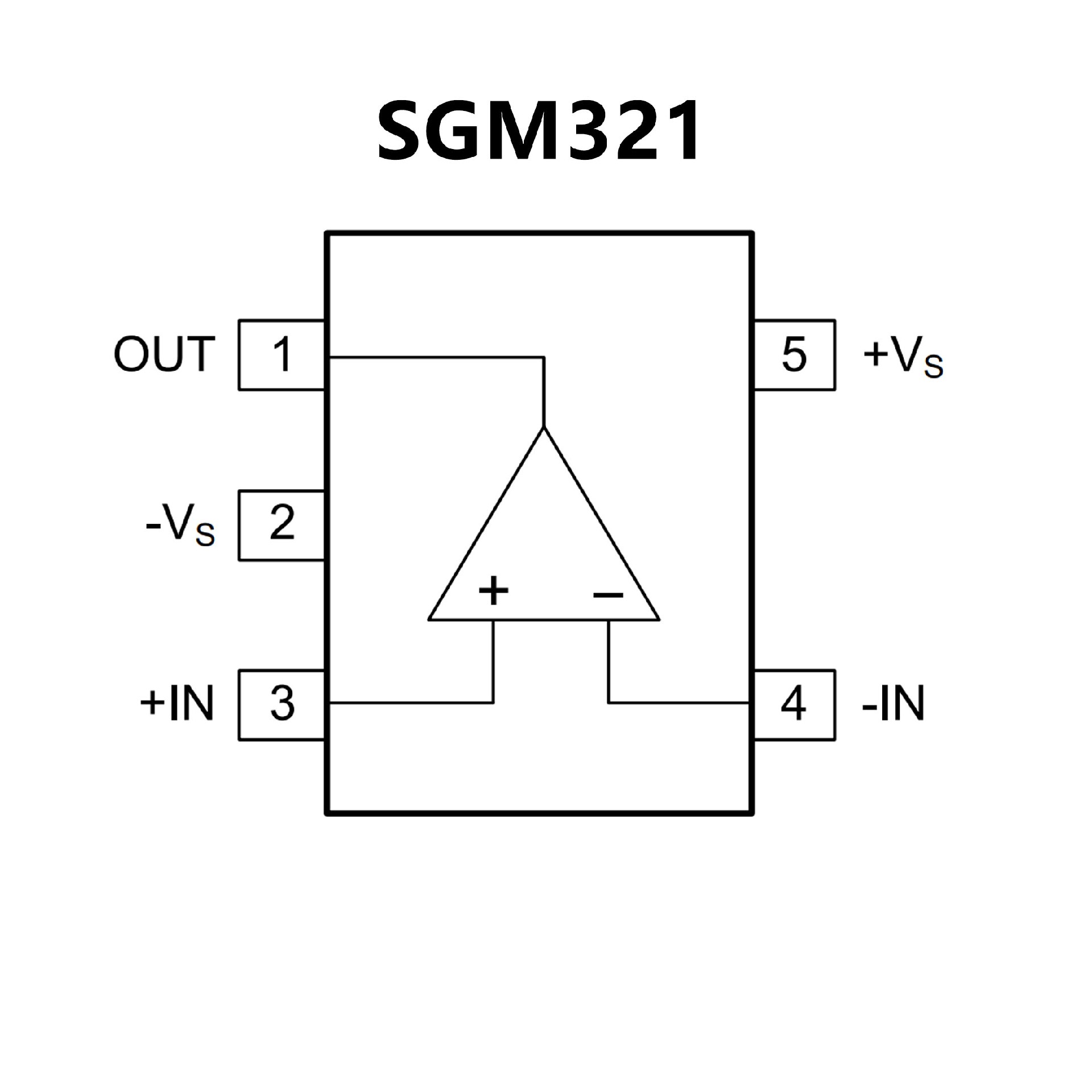

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? LOW IQ: 45μA typical
? LOW COST
? RAIL-TO-RAIL INPUT AND OUTPUT
? SINGLE SUPPLY: +2.1V to +5.5V
? INPUT BIAS CURRENT: 0.5pA
? HIGH SPEED:POWER WITH BANDWIDTH: 1MHz

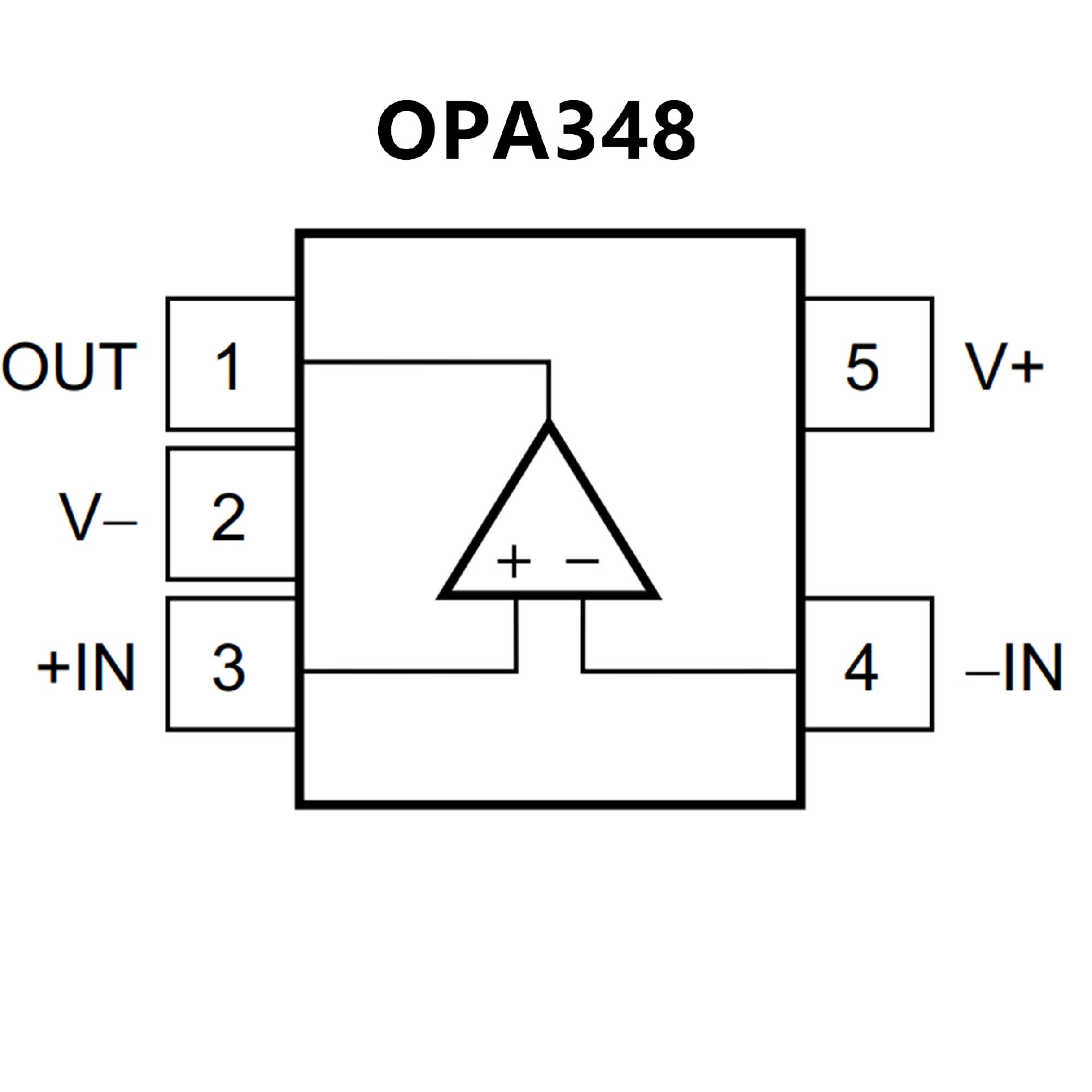

PIN CONFIGUTION
